Basic Info.
Function
Automatic Control, Protection, Monitoring, Measurement
Certification
CCC, ISO: 9001, CE
Operational Mode
Automatic and Manual
Control Mode
Water Level and Pressure
Specification

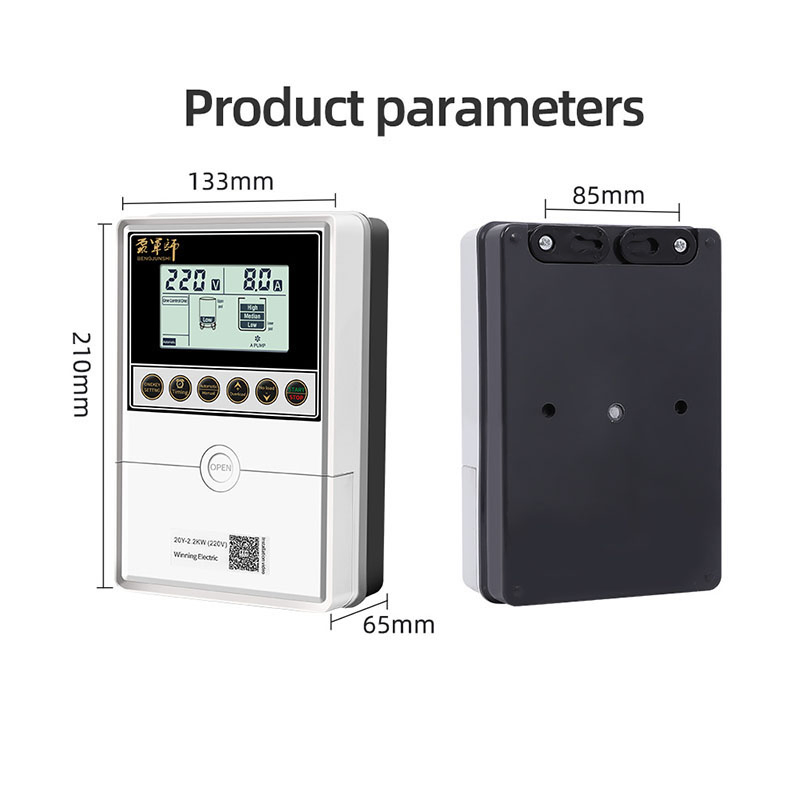

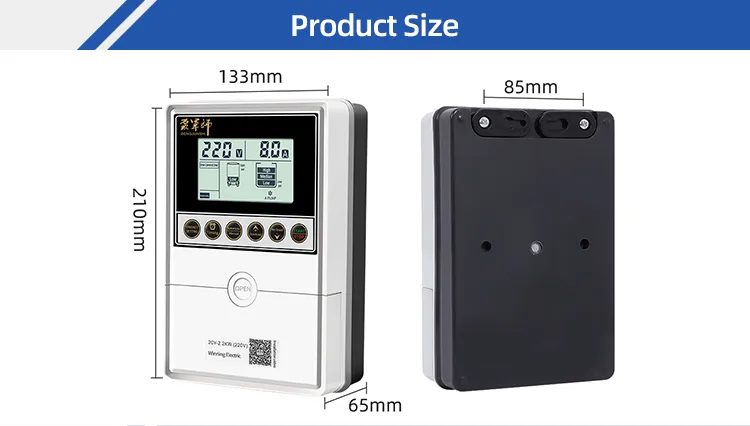

210*139*65mm

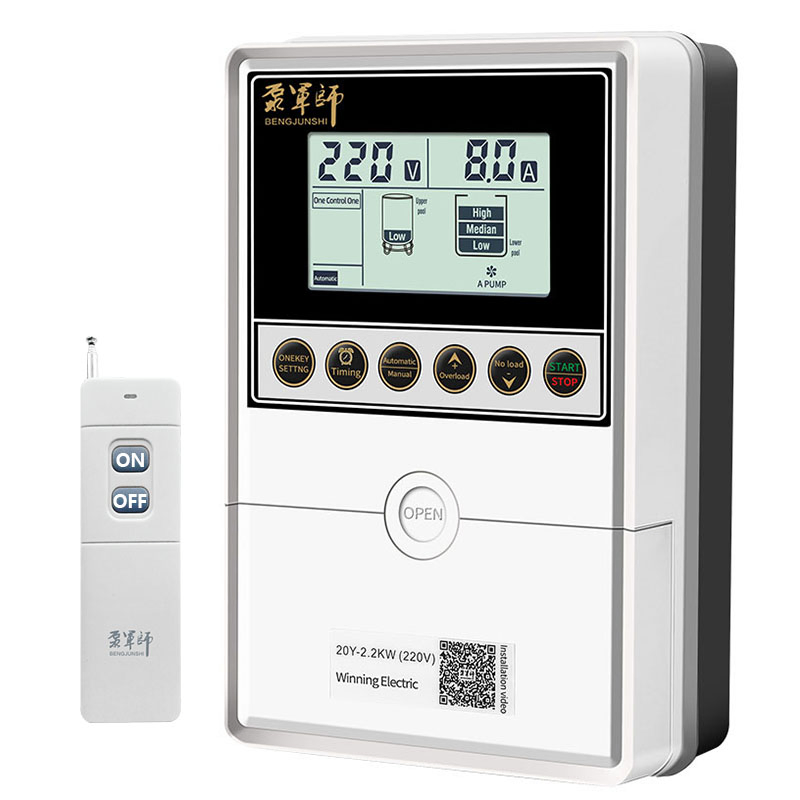

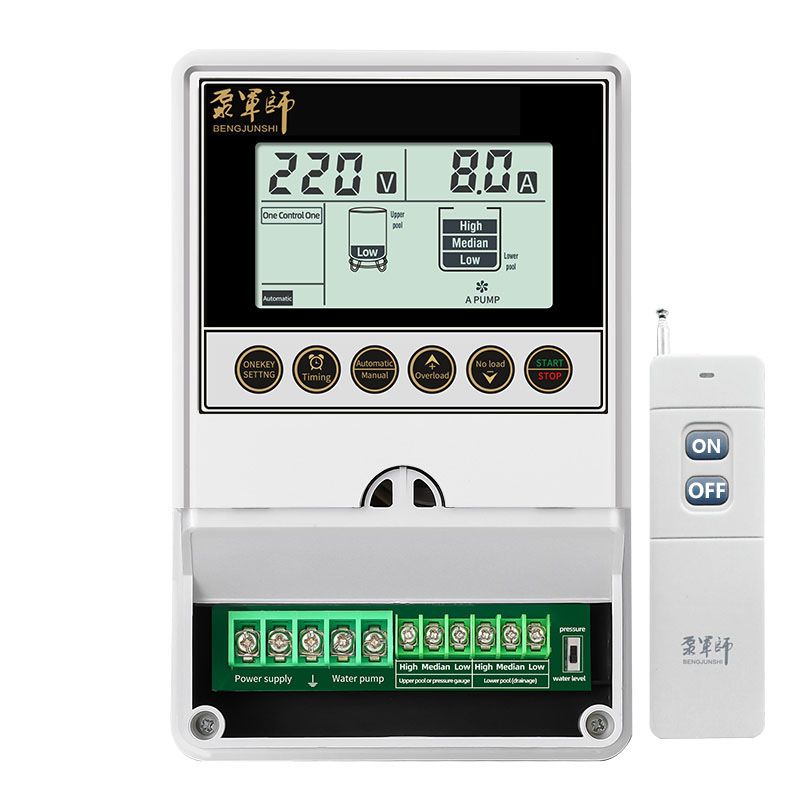

Product Description

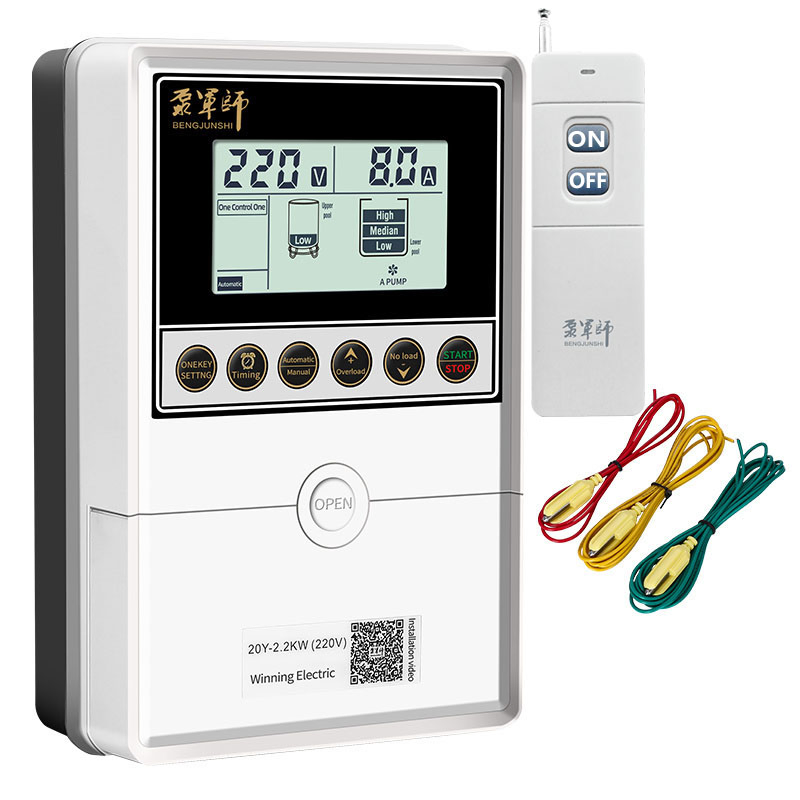

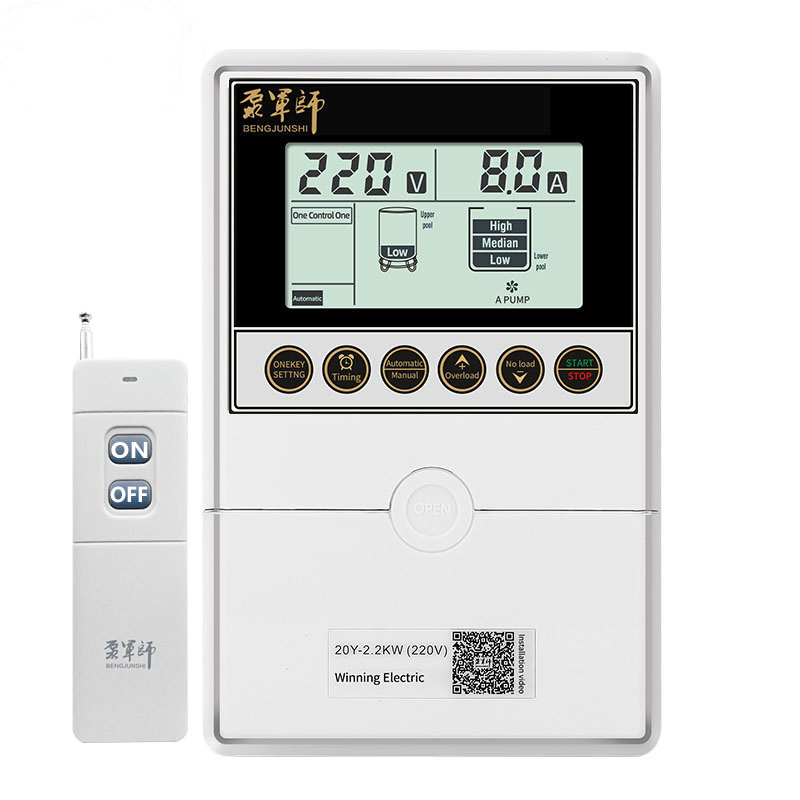

The automatic pump controller is an intelligent and economical system designed for multi pump and motors. It starts and stops pumps and devices while allowing operator monitoring and control. Suitable for Surface pumps, Sewage Pumps, Booster pumps, Submersible pumps, and more.
Typical Applications
- Agricultural irrigation/pumping
- Waste water treatment
- Pressure Booster Systems
- Drainage System
- Flood Control
- Water Tanks/Wells
- Cooling Towers
- Fishing Boat
Technical Specifications
| Model |
20Y-2.2KW / 20Y-3KW |
| Rated Power |
0.37-2.2KW / 0.37-3KW |
| Input Voltage |
220V/110V @ 50Hz or 60Hz |
| Display |
LCD Display |
| Signal Mode |

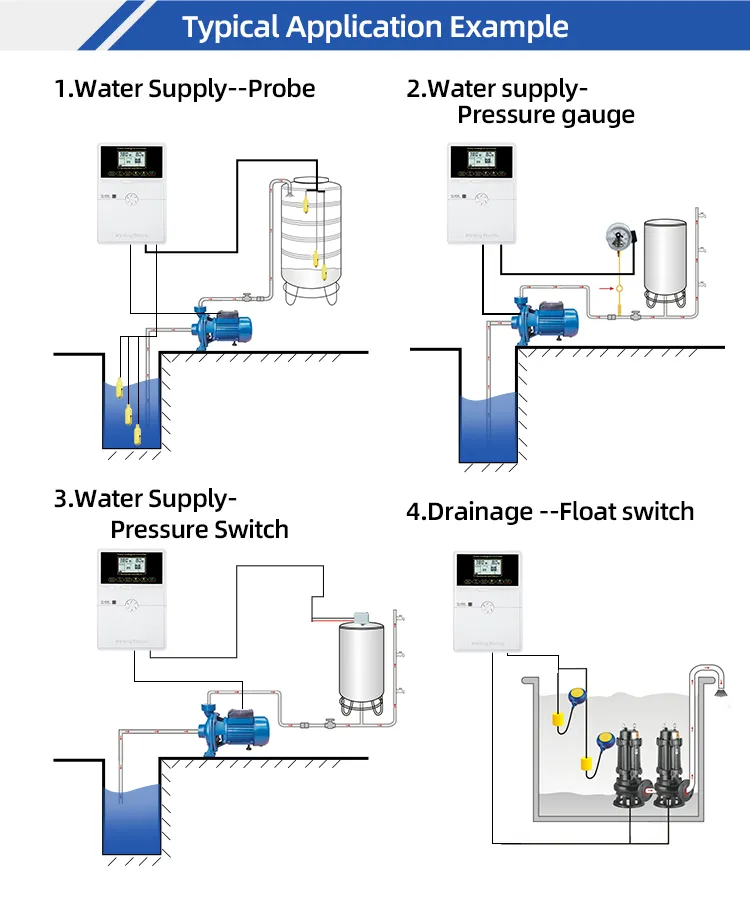

Level float switch, Level probe, Pressure switch, Electric contact pressure gauge |
| Water Level |
High / Middle / Low Indication |

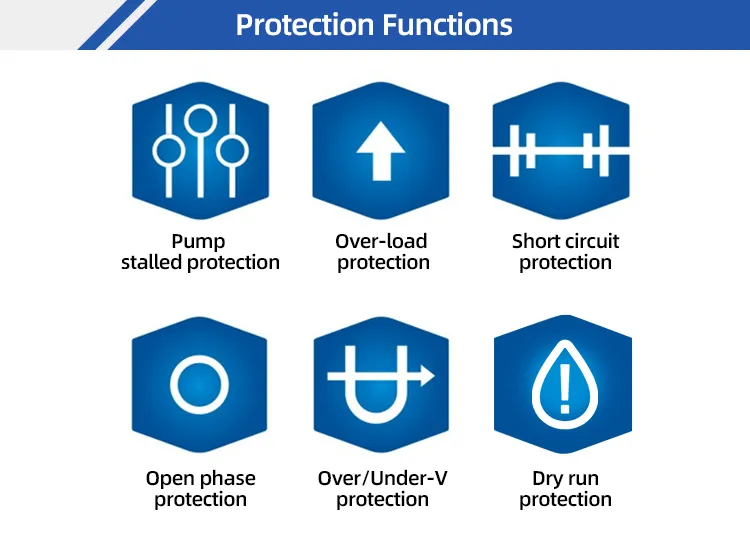

| Protections |
Pump stalled, Dry run, Over-load, Under/Over-voltage, Open phase, Short circuit |
| Main Functions |
Time setting, Fault detection, Anti-rust inspection, Auto-restart |
| IP Rating |
IP22 (Wall mounting) |
Product Gallery
Frequently Asked Questions
How to convert HP into KW?
The conversion formula is: 1HP = 0.74KW. For example: 3HP = 3 x 0.74KW = 2.22KW.
How to choose the power of your pump controller?
Normally we need choose bigger power to run the water pump or motors. If the pump rated power is 4KW, the Pump controller should be 7.5KW. For Submersible pumps used in deep wells, please consult us first.
Can I have samples of your pump controller?
Yes, we can provide pump controller samples for your testing and evaluation.
Do you provide OEM or ODM services?
Yes, we can manufacture products according to your detailed requests and specifications.
What is the typical delivery time?
It takes 3-5 days for sample orders, and approximately 15-20 days for standard orders.
