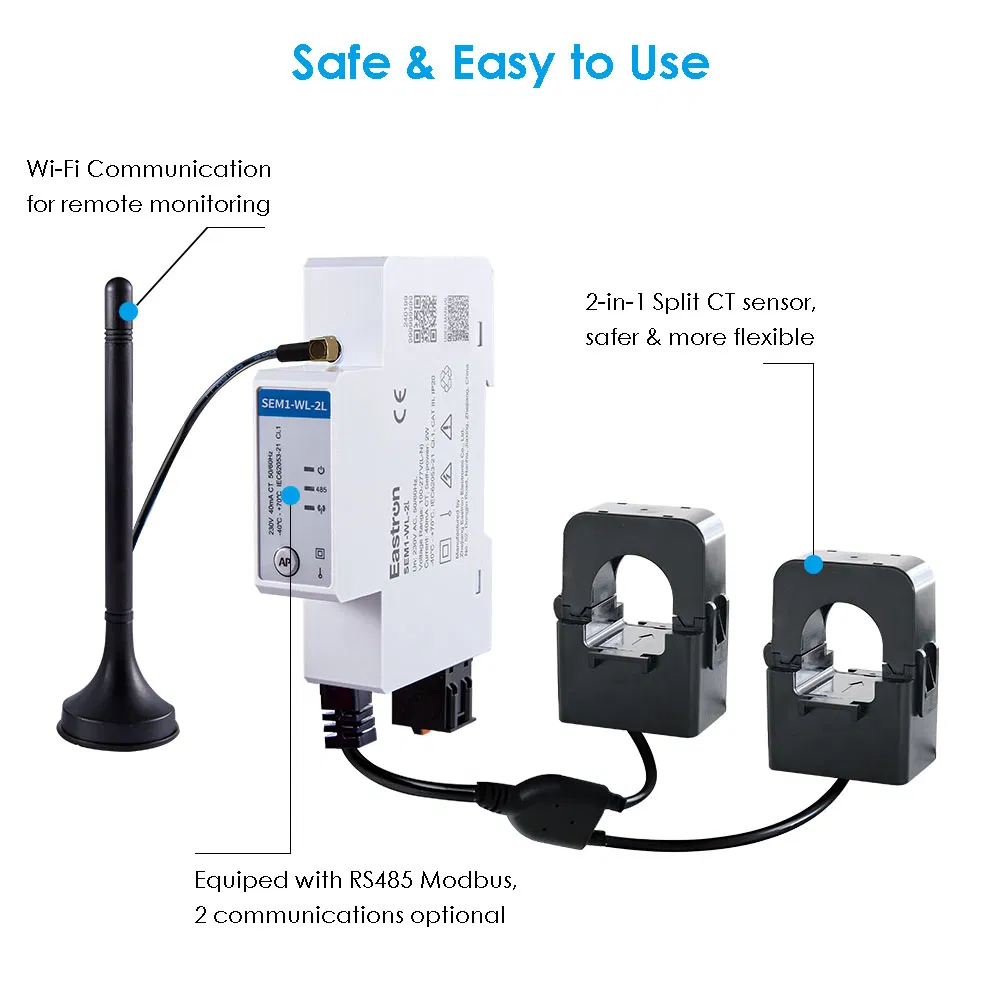

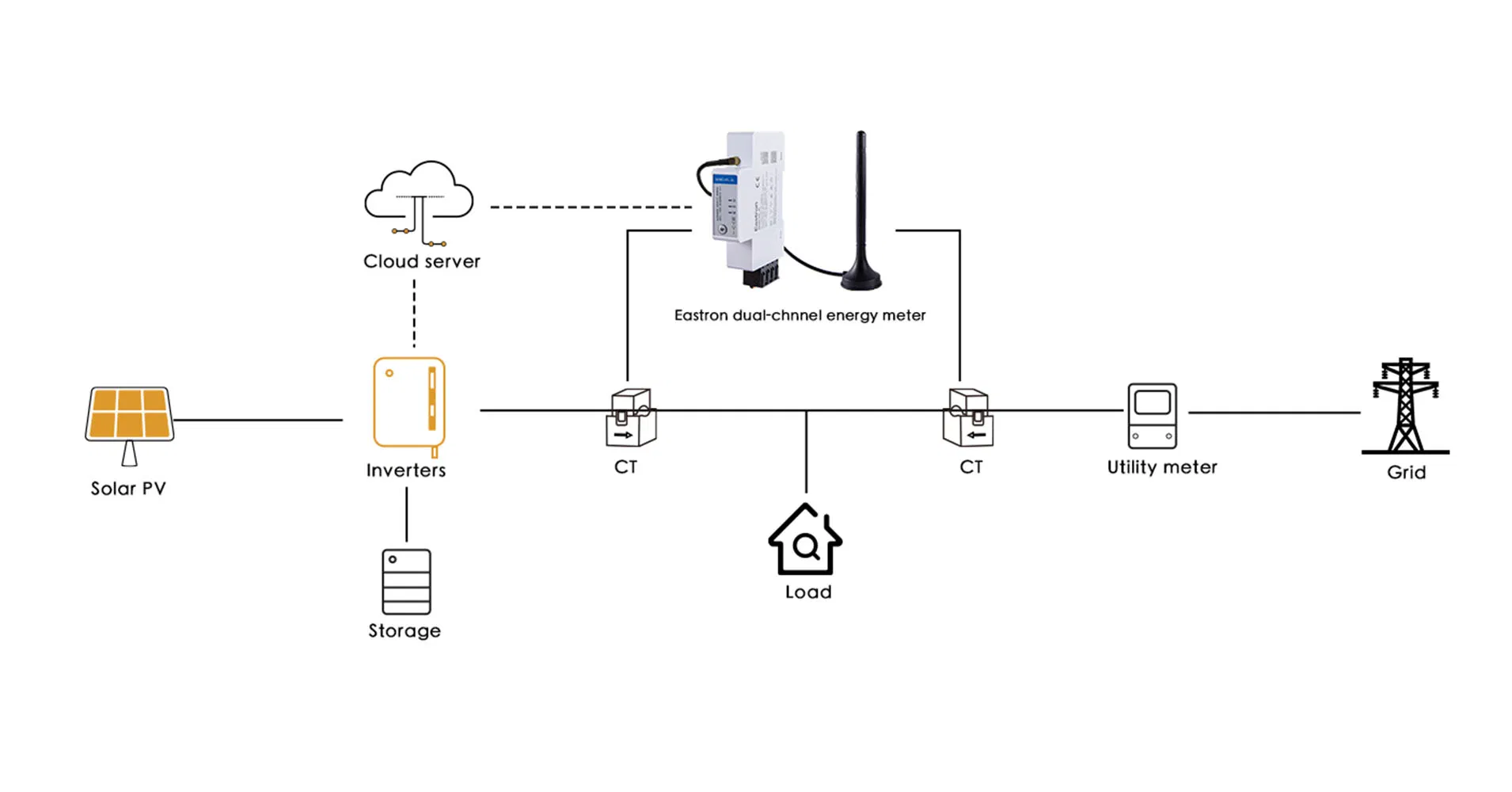

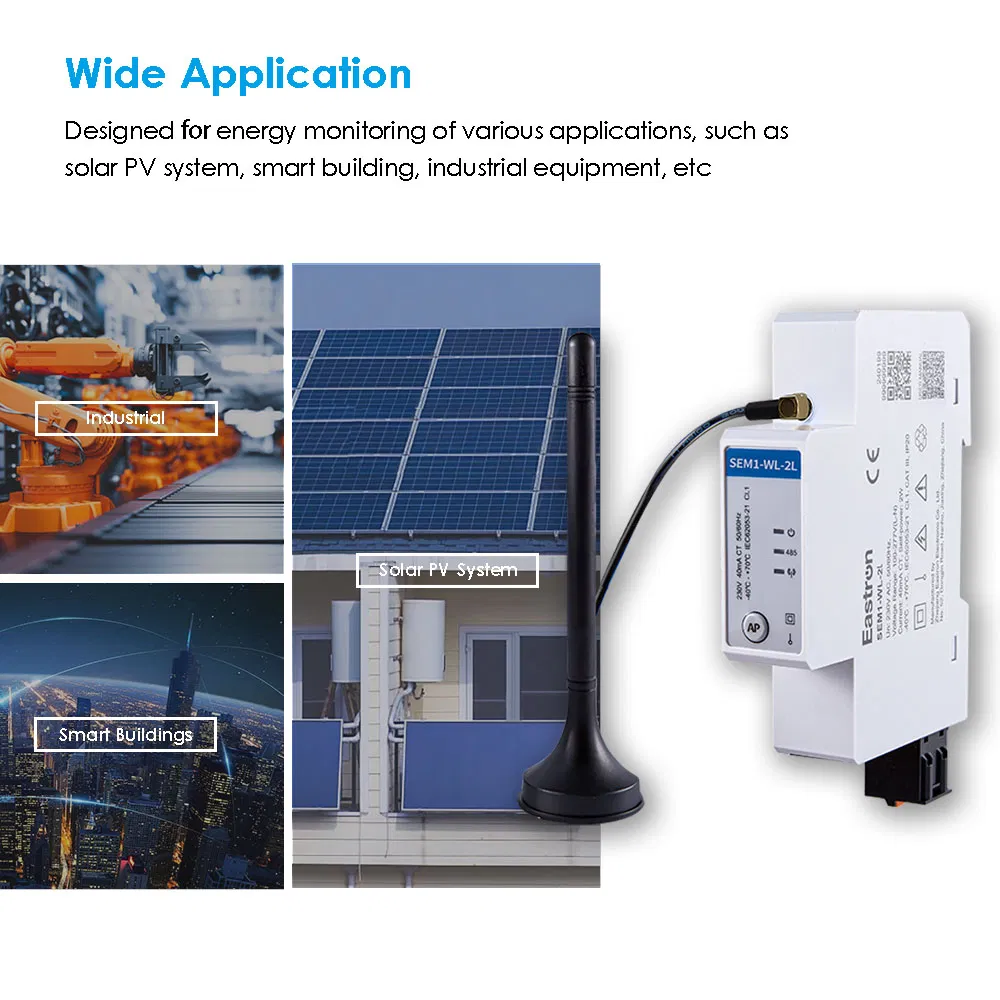

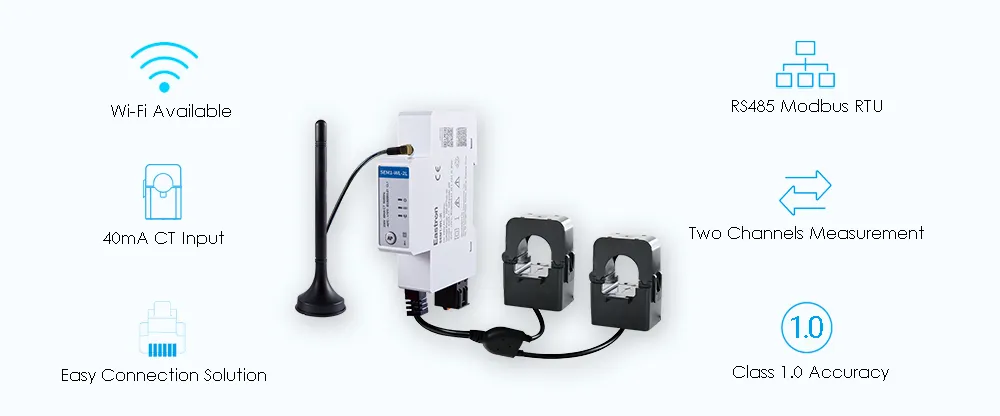

The SEM1 Series is a new generation din rail mounted energy meter, equipped with Wi-Fi and RS485 connectivity. With multi parameters measurement, this energy meter can be used for energy monitoring of various applications, such as PV energy management, smart building, and industrial equipment.

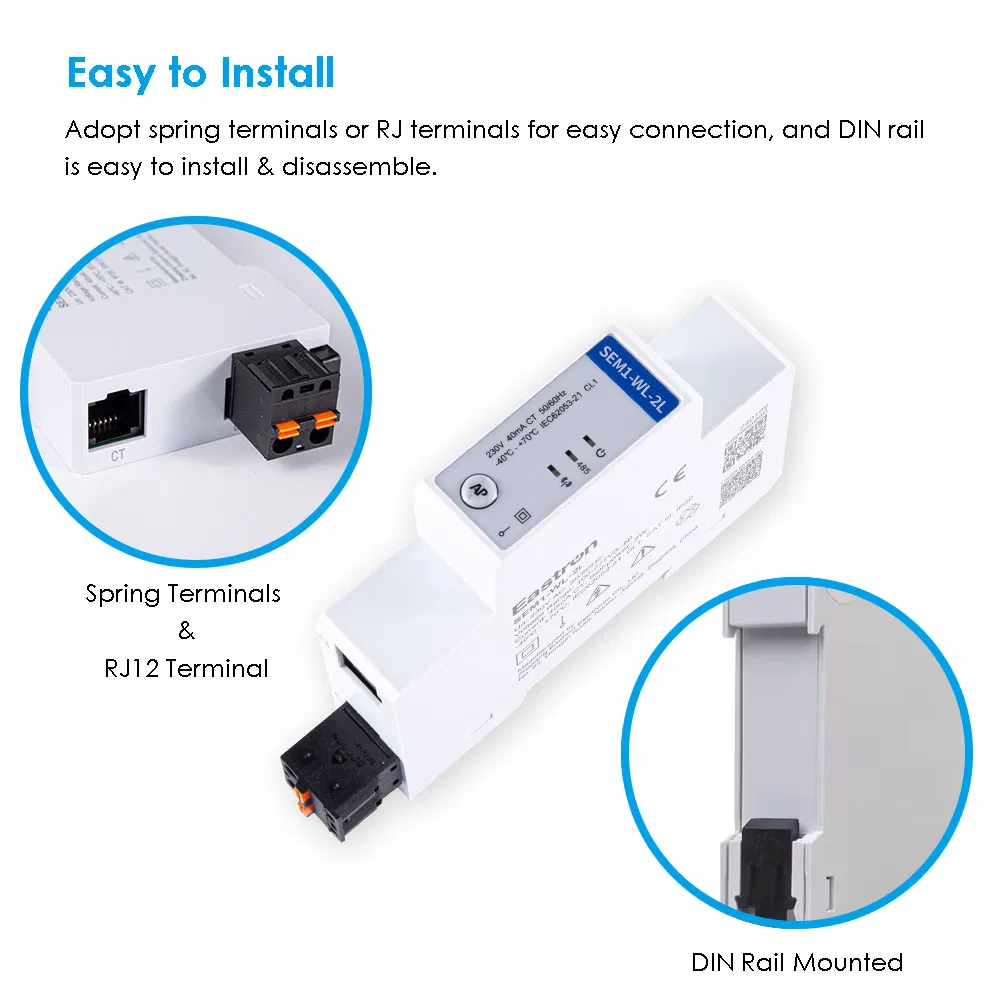

It measures characteristics of 1P2W network, including voltage, frequency, current, power, active and reactive energy (imported or exported), power factor etc. Energy is measured in kWh and kVArh. Designed in a compact size, it utilizes spring terminals or RJ terminals for easy connection to save installation costs.

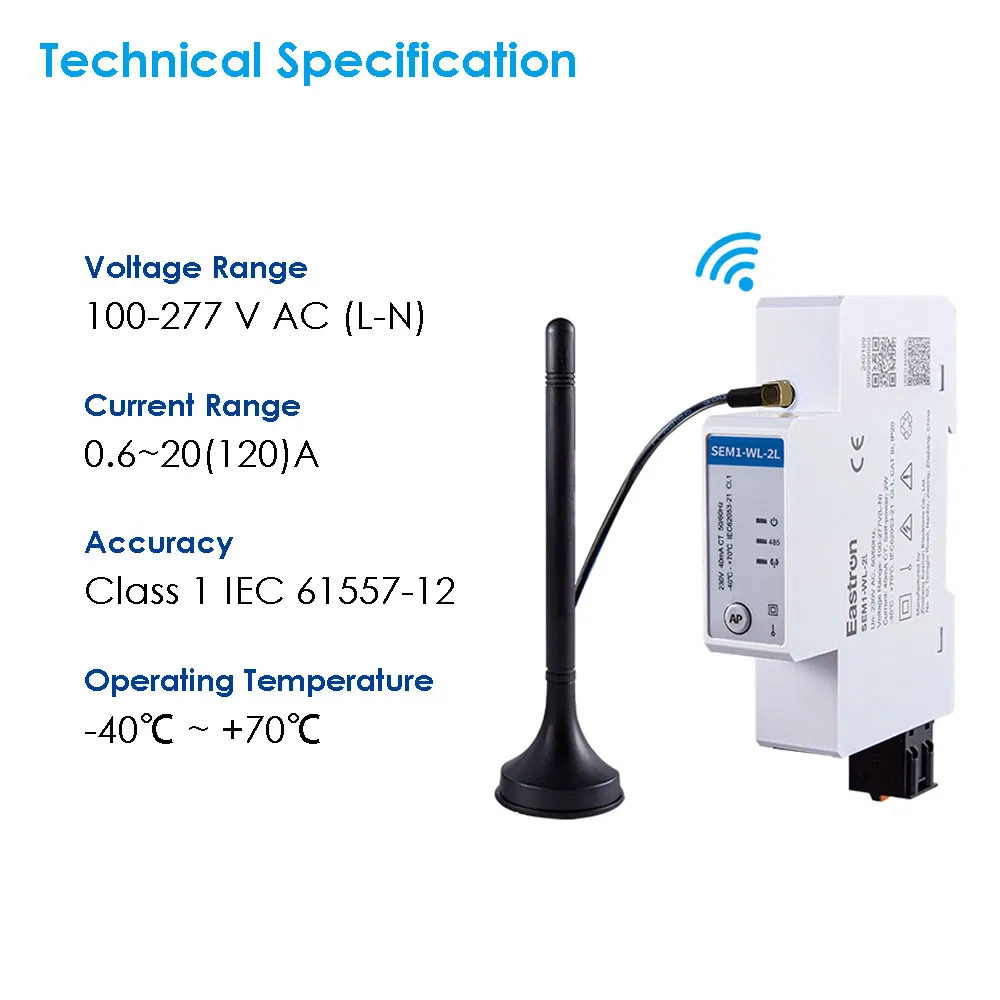

| Electrical Characteristics | Details | |
|---|---|---|
| Measurement Accuracy | Active/Reactive Energy | Class 1 IEC 61557-12 |
| Power / Voltage | ± 1% / ±0.5% | |
| Current | ± 0.5% (4A to 120A) | |
| Frequency | ±0.2% | |
| Input-Voltage | Un | 230V |
| Working Range | 100~277 V AC (L-N) | |
| Communication Interface | RS485 Port (Modbus RTU) | Wi-Fi (Modbus TCP) |
|---|---|---|
| Data Type | Floating Point | Floating Point |
| Transmission Distance | Up to 1000m | 30m(indoor) / 50m(outdoor) |
| Protocol/Band | MODBUS RTU | 802.11 b/g/n (2.4 GHz) |
We are a leading high-tech manufacturer of electricity products and energy measurement solutions. Over the years, we have developed a wide range of electricity meters, sensors, communication modules, and management systems.
To ensure product reliability, we have set up a professional lab that performs EMC, LVD, accuracy, and environment tests according to IEC, EN, GB, and UL standards. Holding over 280 patents, we are certified under ISO 9001 and hold MID and UL certifications. We have provided products and services to more than 50 countries across Europe, Asia-Pacific, America, and Africa.
