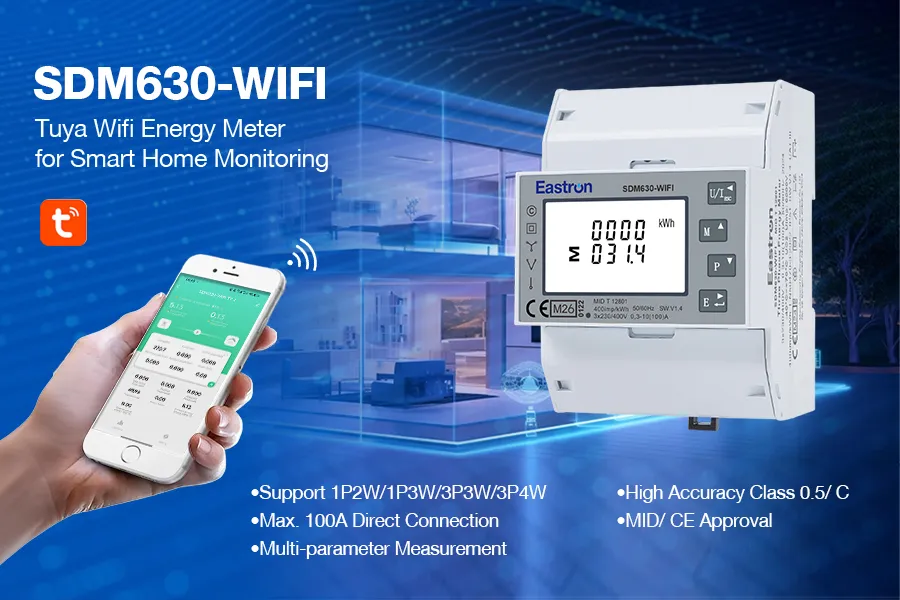

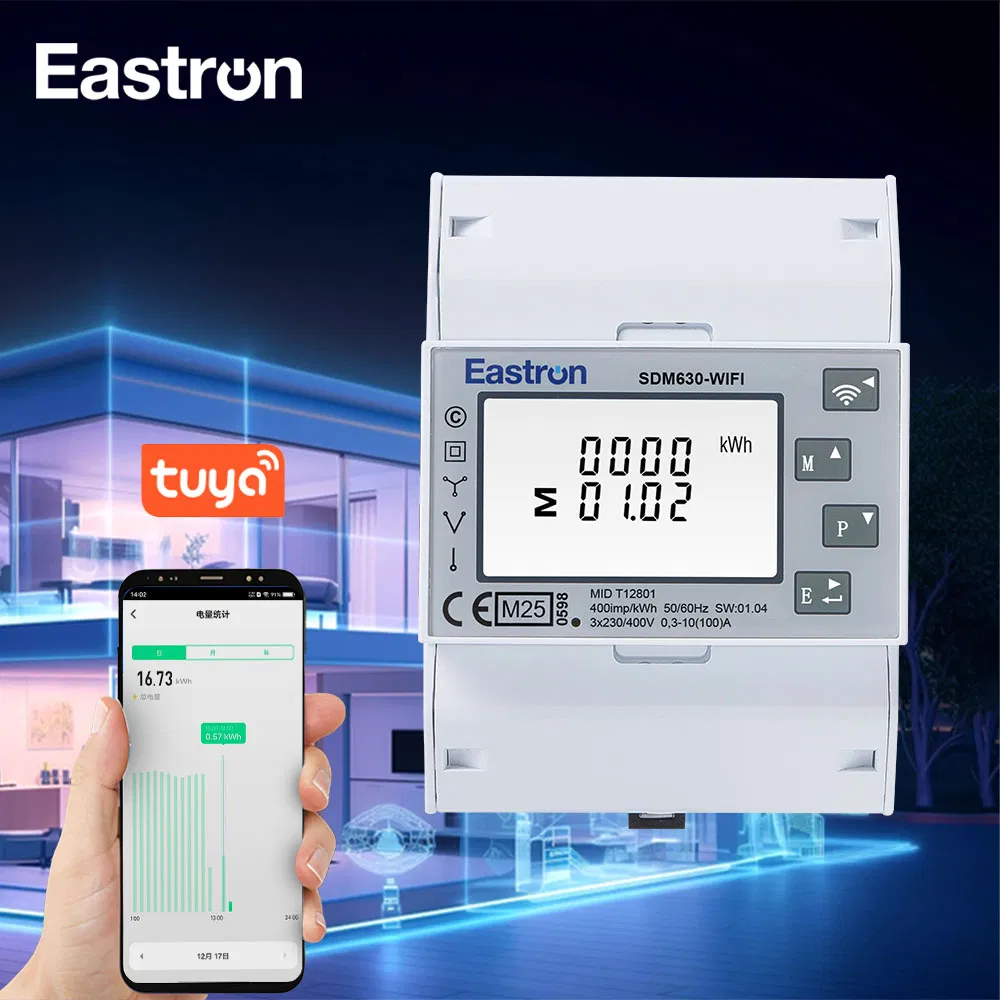

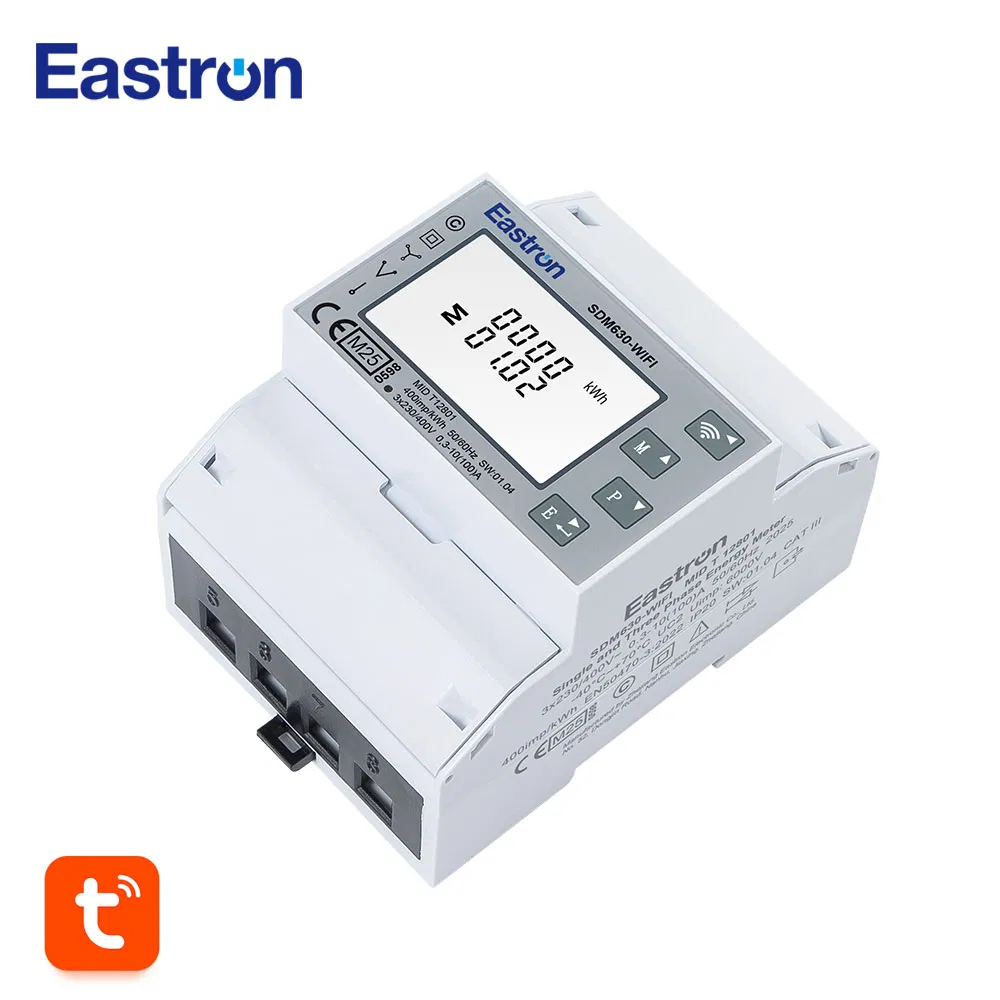

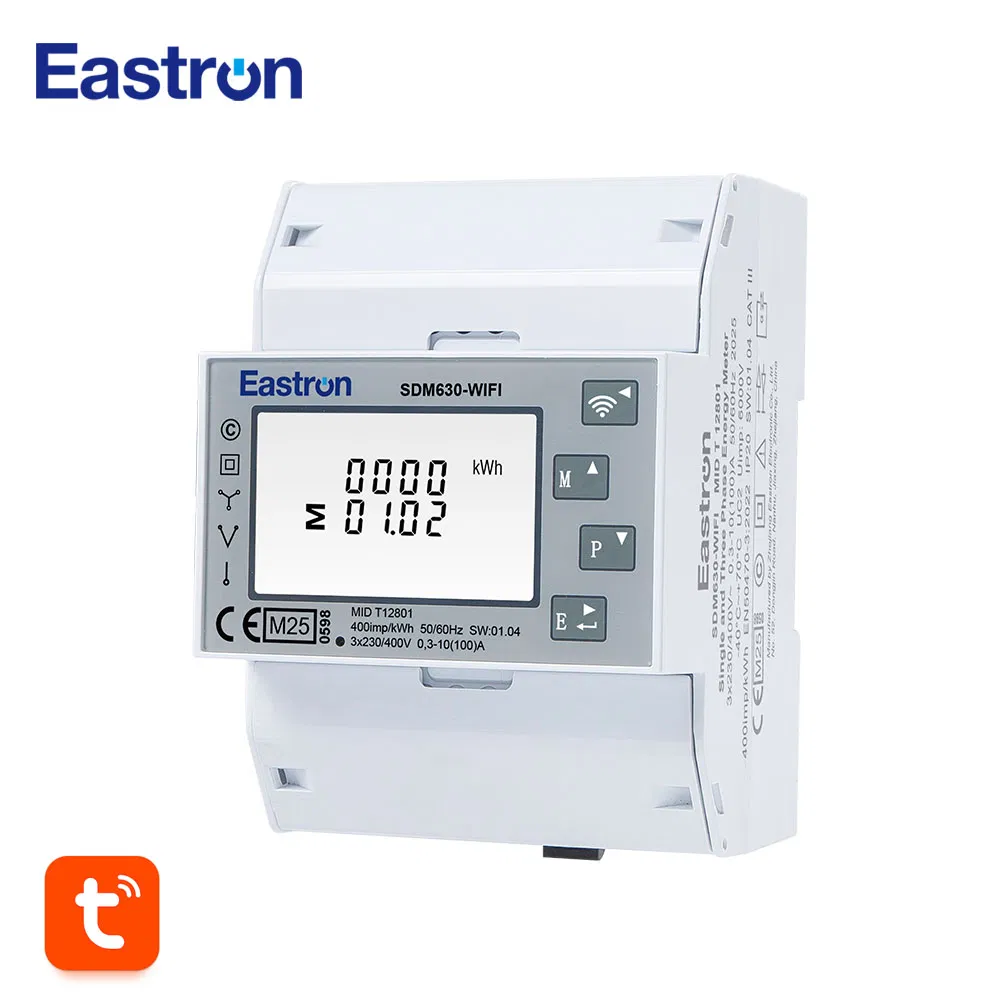

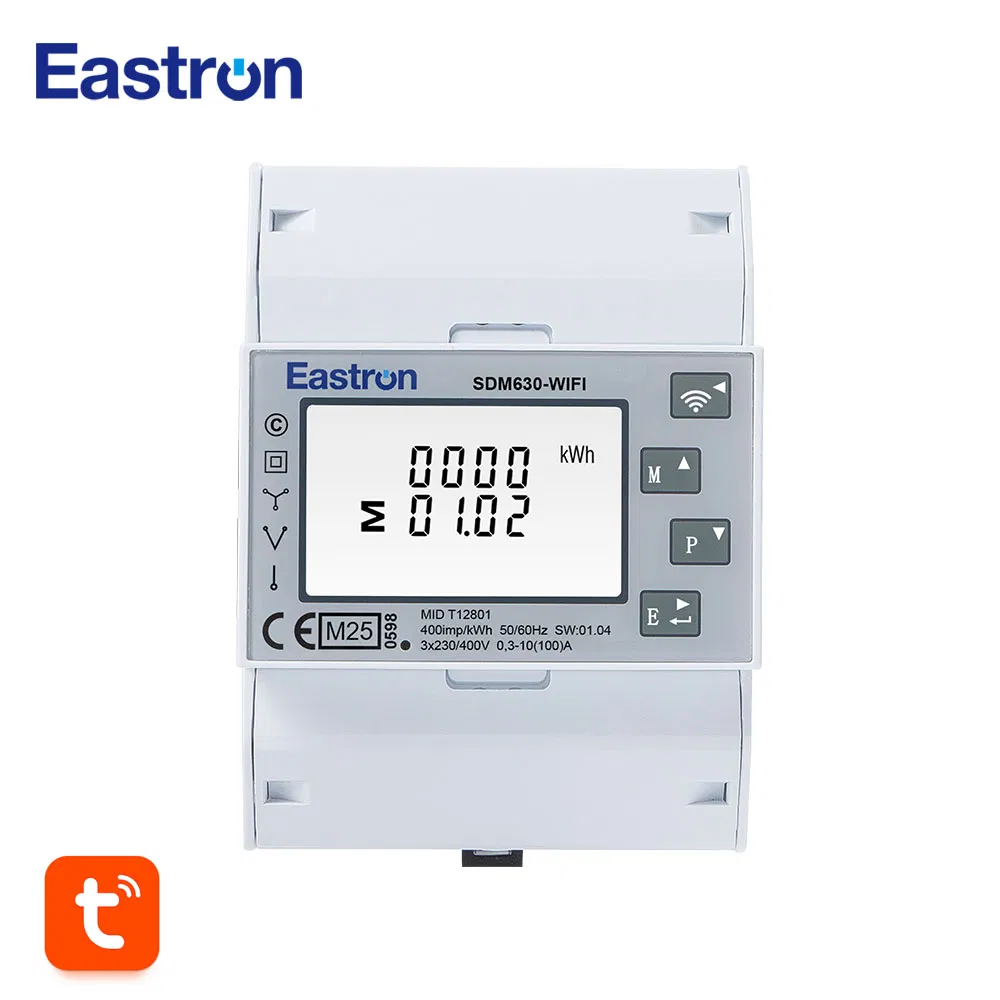

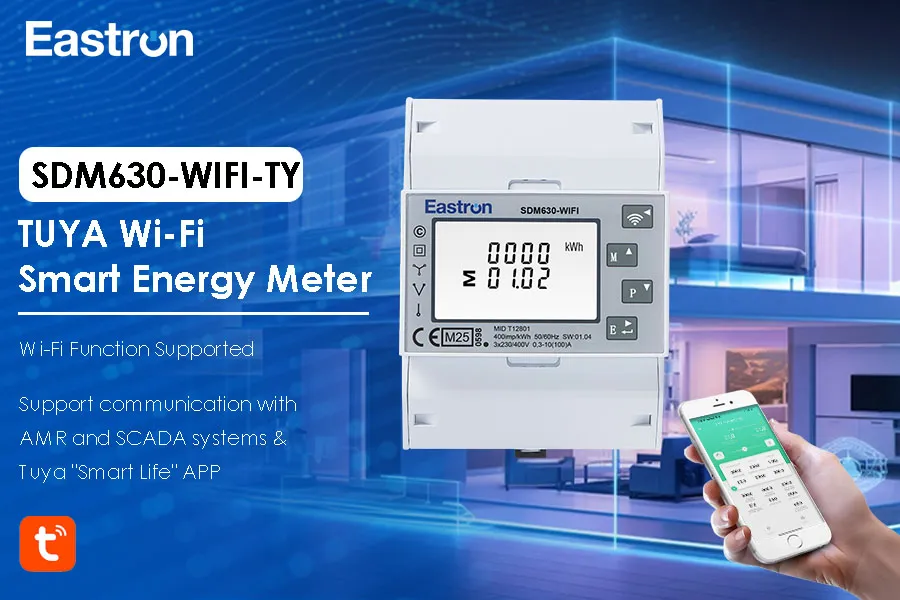

The SDM630-WIFI TY measures and displays the characteristics of single phase two wire (1p2w), single phase three wire (1p3w), three phase three wire (3p3w) and three phase four wire (3p4w) supplies, including voltage, frequency, current, power, active energy, reactive energy, imported energy, exported energy and total harmonic distortion.
Energy is measured in terms of kWh, kVArh. SDM630-WIFI TY supports max. 100A direct connection. It is equipped with a Wi-Fi communication function and supports communication with Tuya's "Smart Life" APP.
The device is configured with 2 channels of pulse outputs. The pulse constant, pulse width and pulse type are configurable. Parameter configuration can be implemented via the buttons on the panel. It is well functional with high security.
| Electrical Characteristics | ||
|---|---|---|
| Type of Measurement | RMS (3P, 3P+N) | |
| Measurement Accuracy | Active Energy | Class 0.5 IEC 62053-21 / Class C EN50470-3:2022 |
| Reactive Energy | Class 2 IEC62053-23 | |
| Frequency | ±0.05% | |
| Current | ±0.2% | |
| Voltage | ±0.2% | |
| Power Factor | ±0.005 | |
| Wi-Fi Communications | |
|---|---|
| Interface | Wi-Fi 2.4G |
| RF Band | 2.412-2.484GHz |
| Max. RF Power | <17 dBm |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Range | Up to 30m indoors / 50m outdoors (Environment dependent) |
As a leading high-tech manufacturer of electricity products and energy measurement solutions, we have developed a wide range of electricity meters, sensors, and management systems. Our experienced R&D teams drive continuous innovation, ensuring our products remain competitive globally.
To ensure product reliability, we operate a professional lab that performs EMC, LVD, accuracy, and environment tests according to IEC, EN, GB, and UL standards. Holding over 280 patents, we operate under ISO 9001 and maintain SGS MID approval and UL certification.
