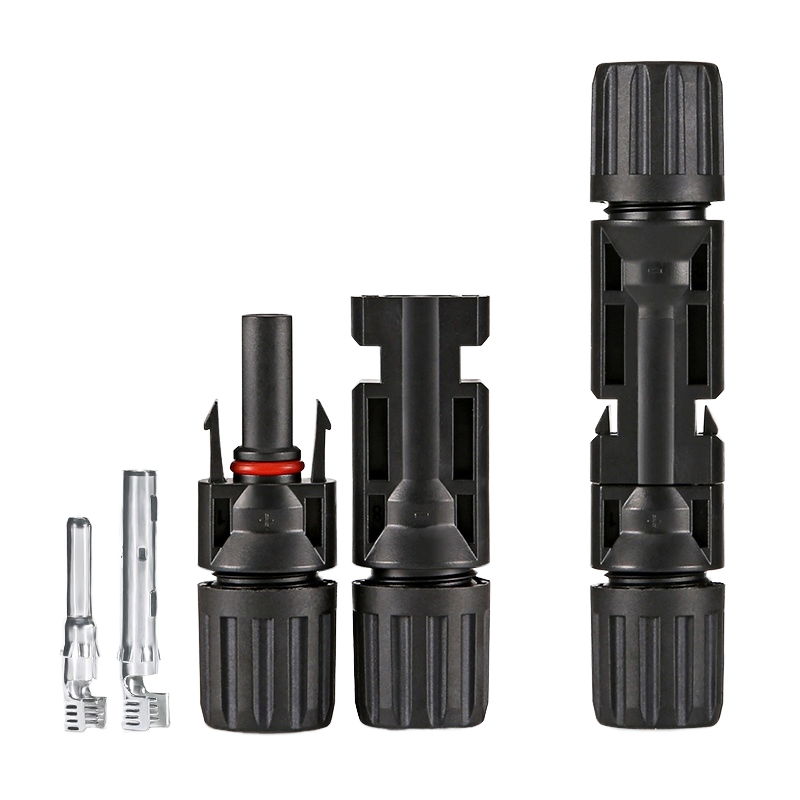

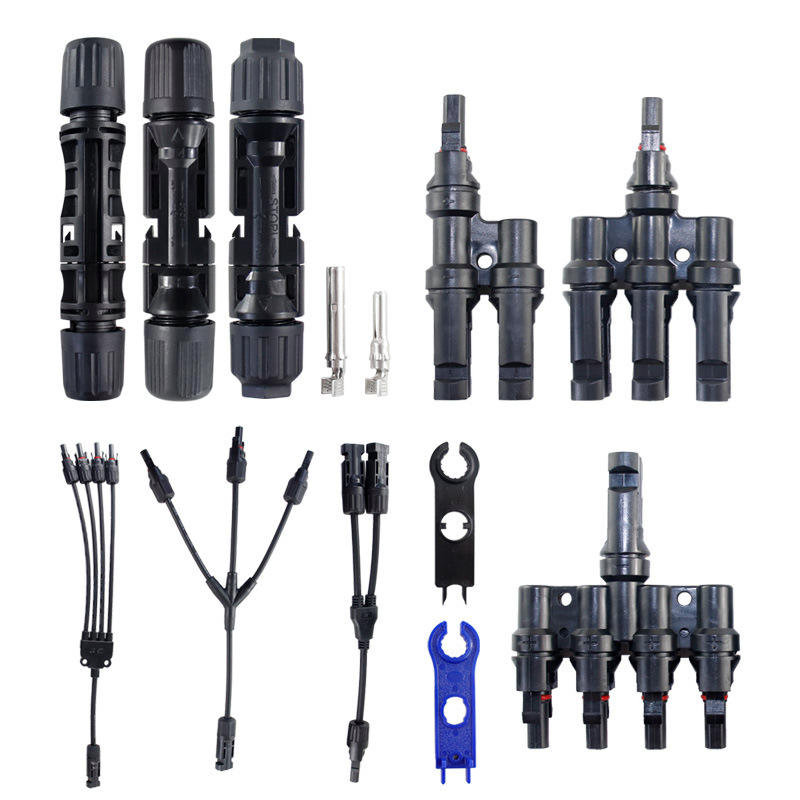

Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
1 / 5
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable
Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable

Copper Material Mc4 Solar Connector 1p Adaptor DC Connector for PV Cable

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.:PV-LTN4
Application:PV System
Certification:TUV
Terminal Material:Iron
Interface Type:DC/DC
Cable Cross Sections:2.5~10mm2 /14~8AWG
Ambient Temp:-40 to +85 Degrees
Flame Class:UL94-V0
Degree of Protection:IP68(1m,1h)
Warranty:25 Years
Rated Voltage:1500V
Rated Current:30A/50A

High Stability MC4 Solar Cable Connectors

Enhanced with Premium Tin Copper Pins for Photovoltaic Systems

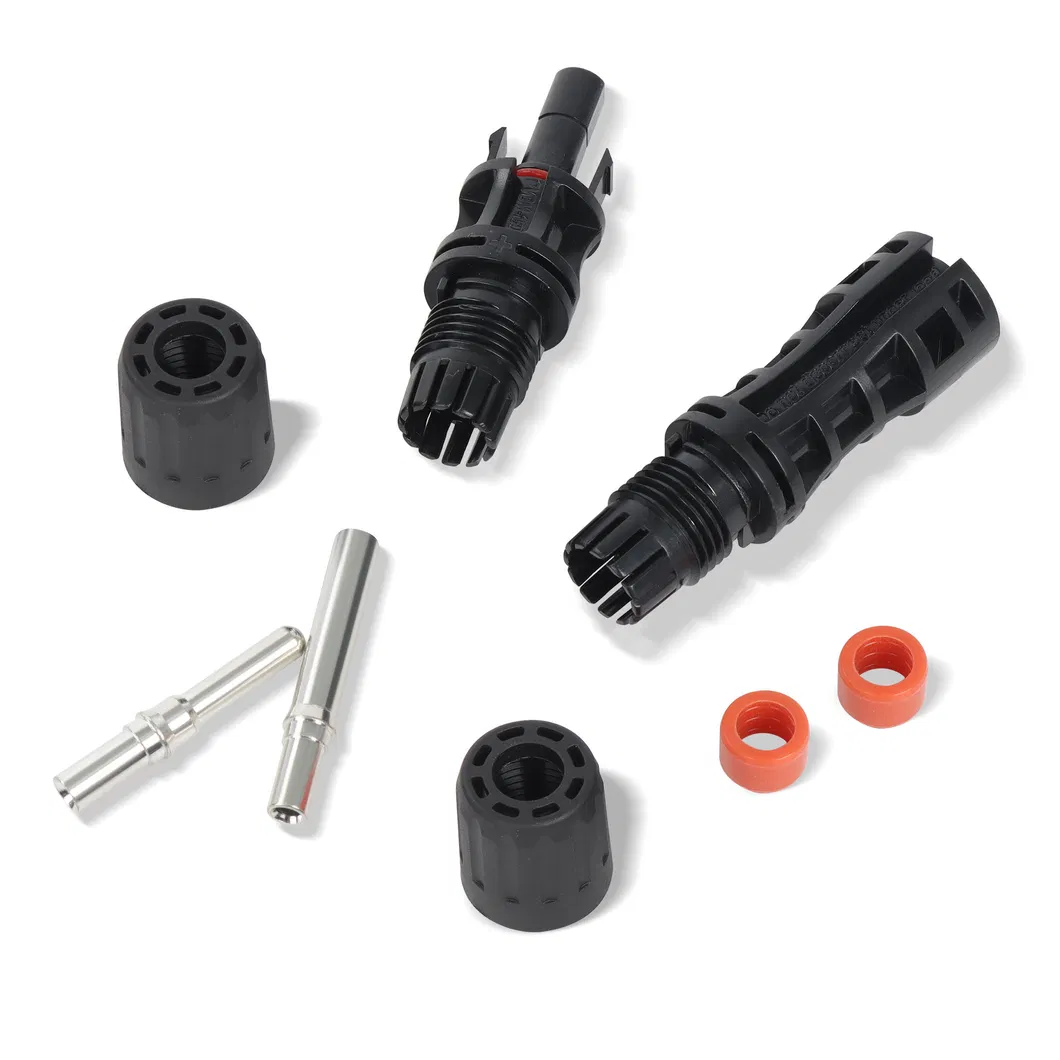

Solar Connector Overview

🌟 Outstanding Features:

  • ✅ Effortless on-site processing for seamless installation.
  • ✅ Capable of accommodating PV cables with a variety of insulation diameters.
  • ✅ Secure mating safety with intelligently keyed housings.
  • ✅ Engineered for enduring performance with multiple plugging cycles.
  • ✅ Designed to support a high current carrying capacity.
  • ✅ Globally recognized with TUV and UL approvals.

Technical Specifications

Parameter Details
Model NumberWSPVCC
Test Voltage1000V/1500 DC
Overvoltage Type6000V(50Hz, 1min)
Contact ResistanceImΩ (CAT III /2)
Contact MaterialCopper, Tin-plated
Insulation MaterialPPO
Degree Of ProtectionIP2X/IP68
Flame ClassUL94-VO
Safety ClassII
Suitable CableOD 4.5-8.5(2.5-6.0mm2)
Force≤ 50N Insertion / ≥ 50N Withdrawal
Connecting SystemCrimp connection
Temperature Range-40ºC ~ +125ºC

Detailed Product Photos

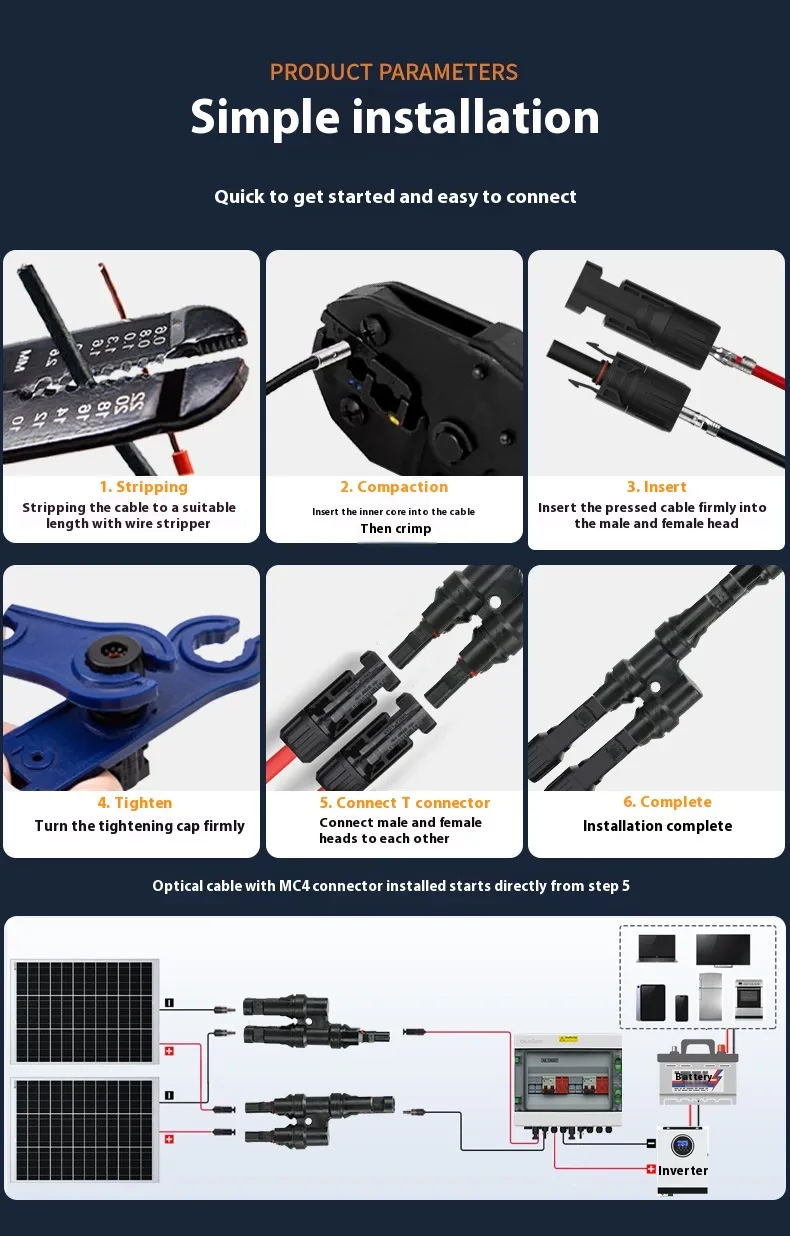

Detailed Photo 1

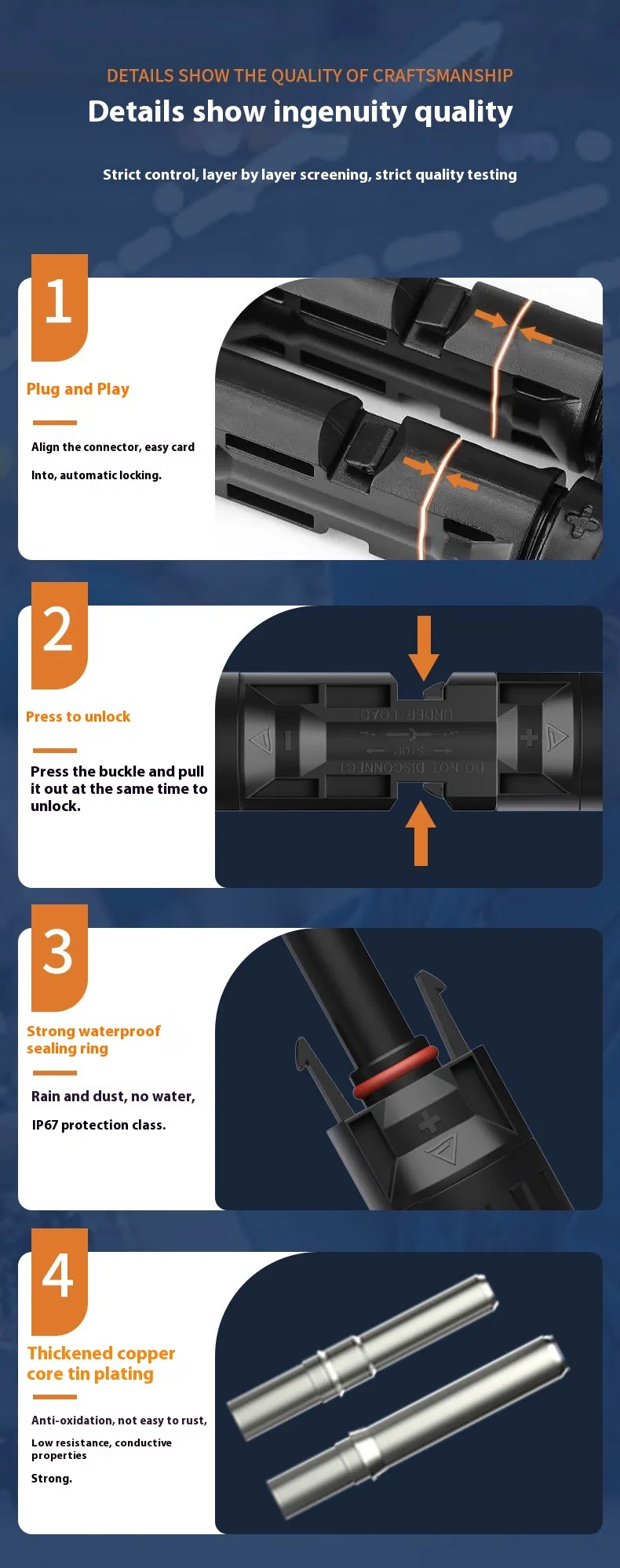

Detailed Photo 2
Detailed Photo 3

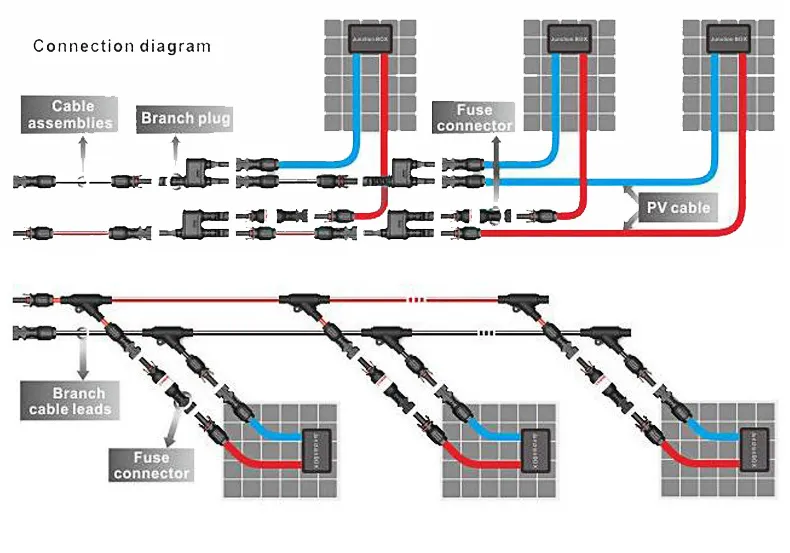

Detailed Photo 4

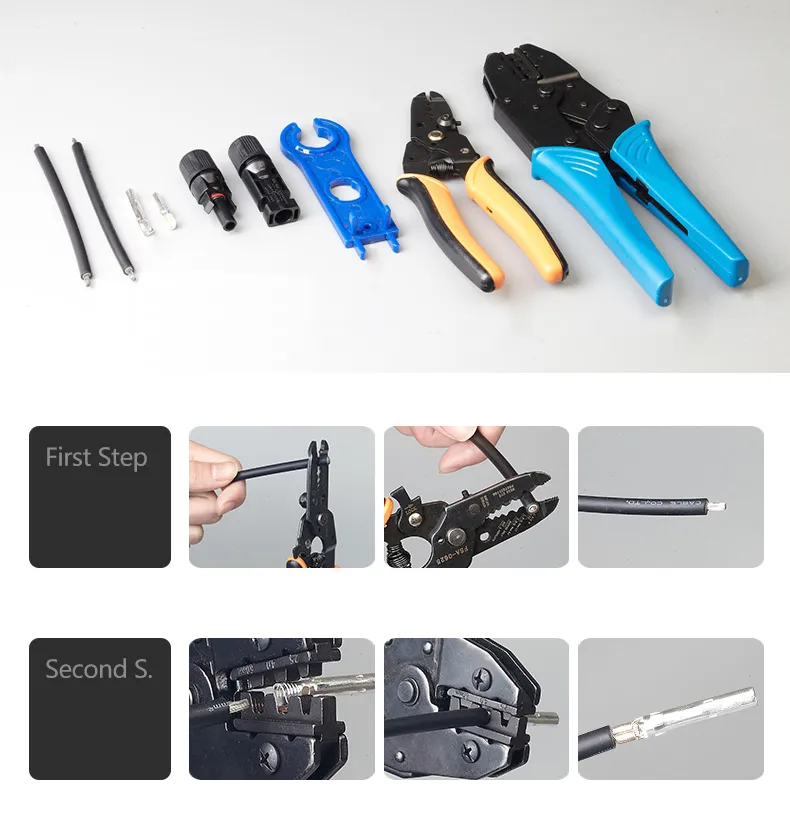

Detailed Photo 5

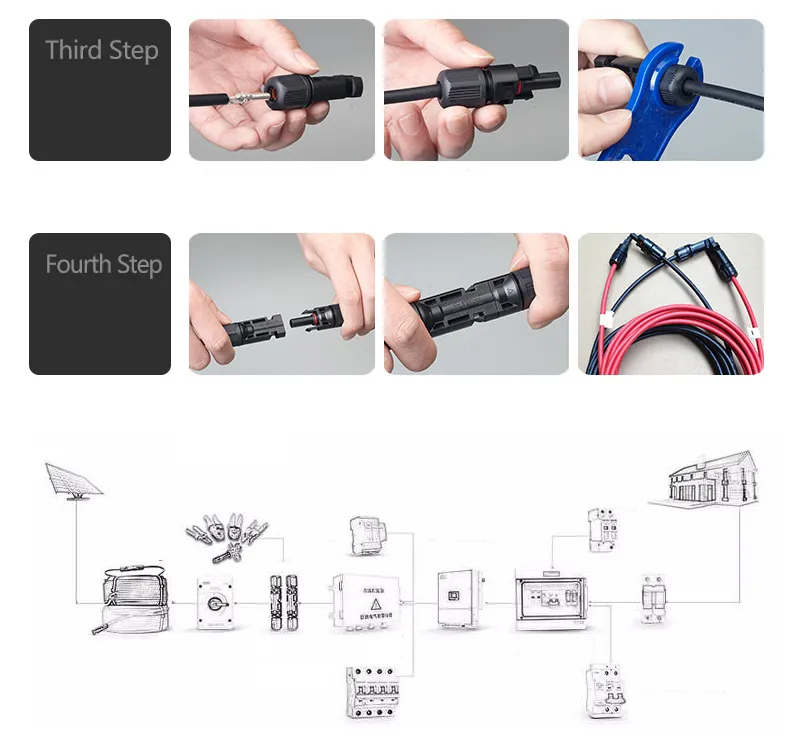

Installation Guidance

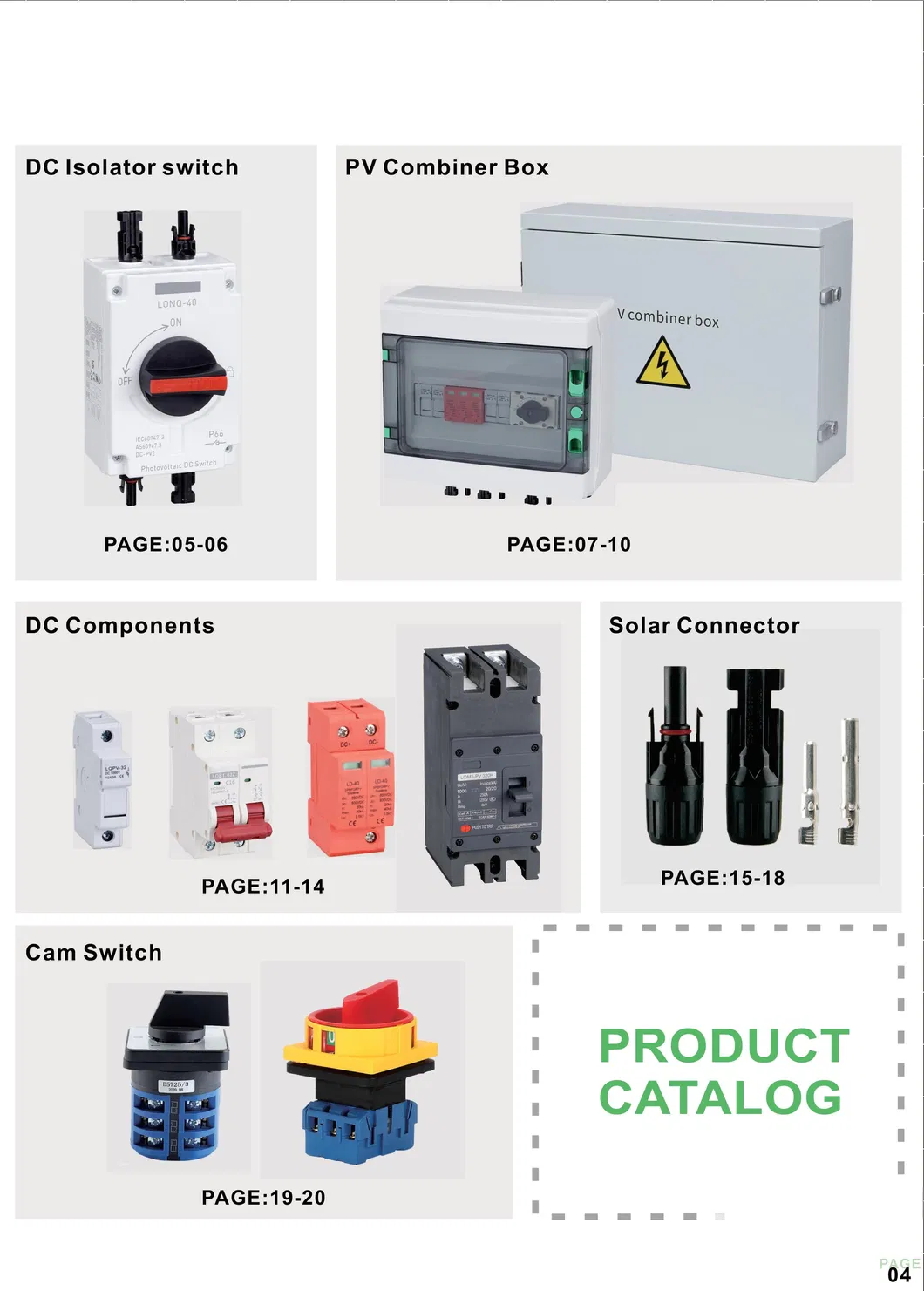

Installation 1 Installation 2

Packaging & Logistics

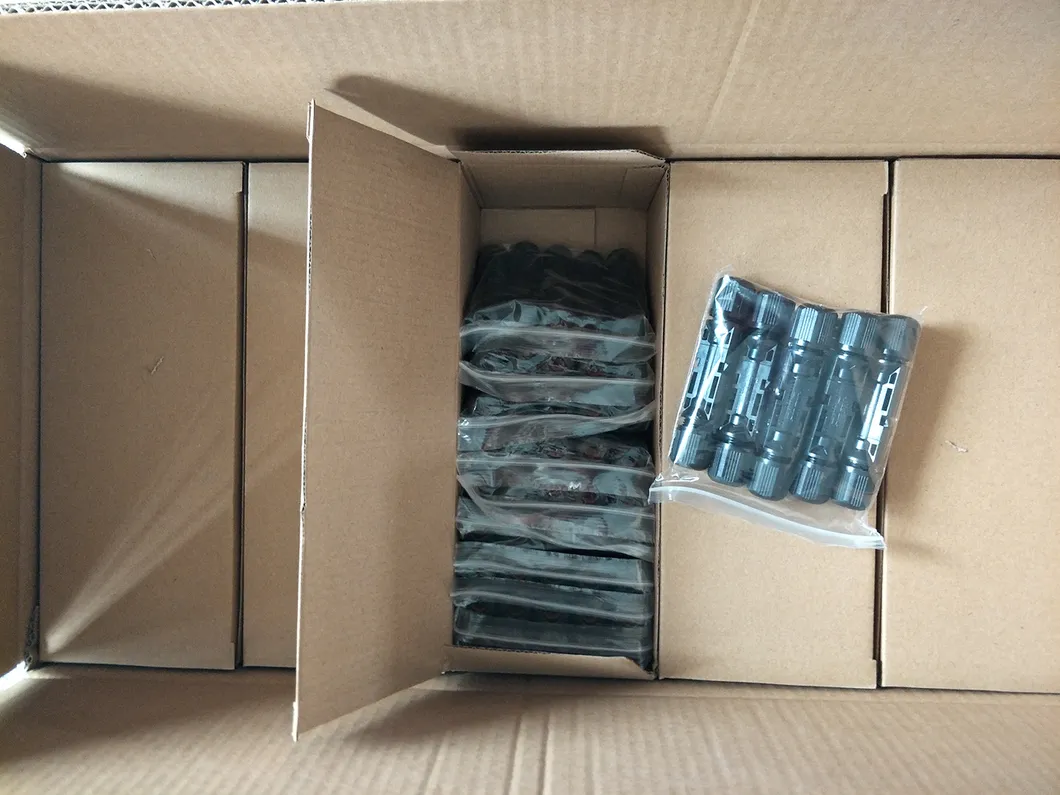

Packaging 1

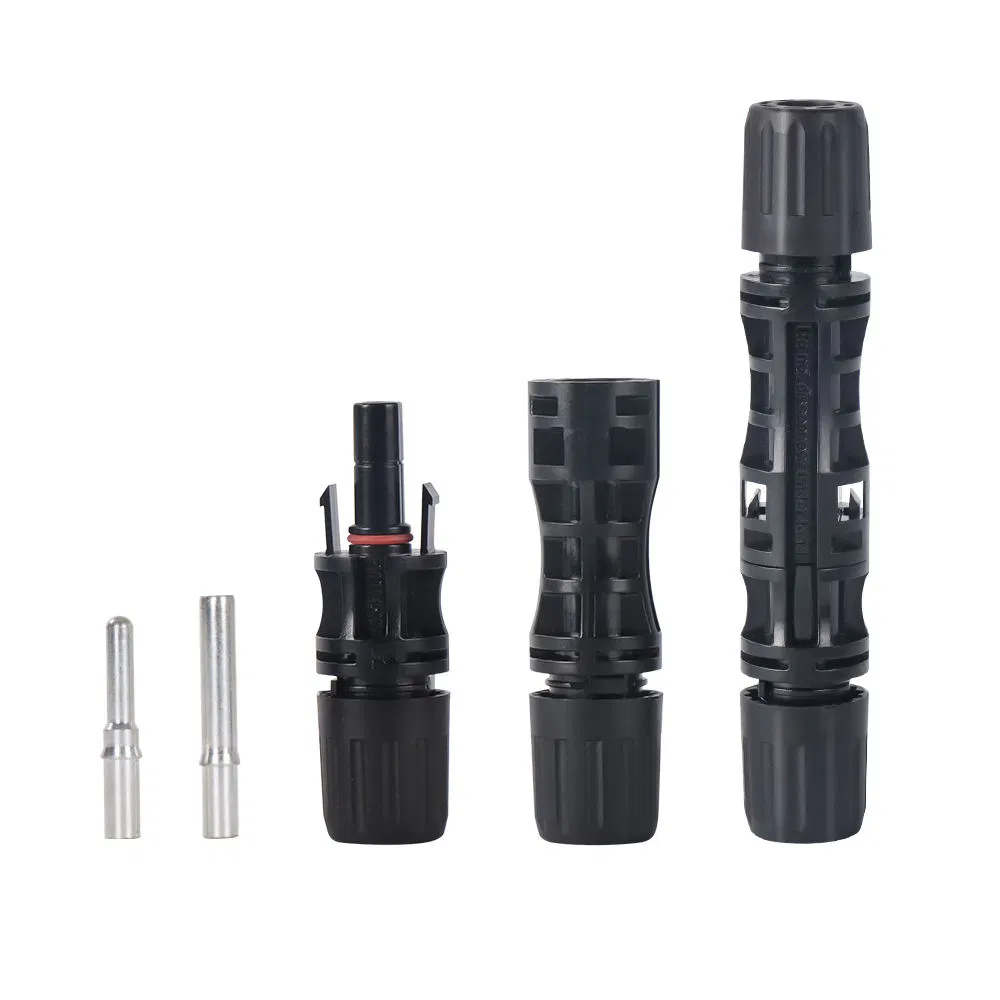

Packaging 2

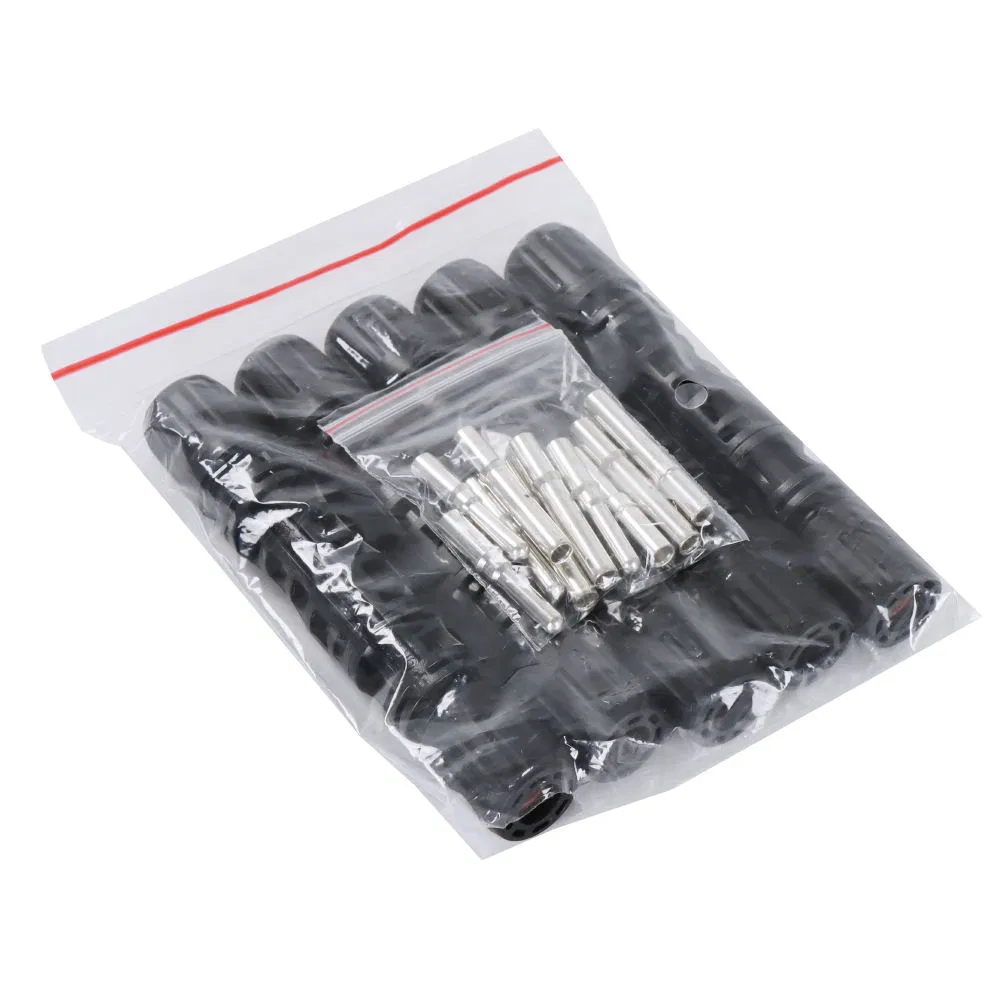

Packaging 3

Support & After-Sales

  • ⚡ Expedited responses: Average reply time of just 2.75 hours.
  • 📦 Swift delivery: Delivering up to 10,000 pairs in less than 7 days.
  • 📷 Complimentary photography: Free, high-quality photos and videos of your products.
  • 🔍 Production transparency: Synchronized progress updates on creation.
  • 🌐 Seamless communication: English proficiency at Level 8 for maximum efficiency.
  • 🛡️ Long-term reliability: 25-year warranty and prompt support.

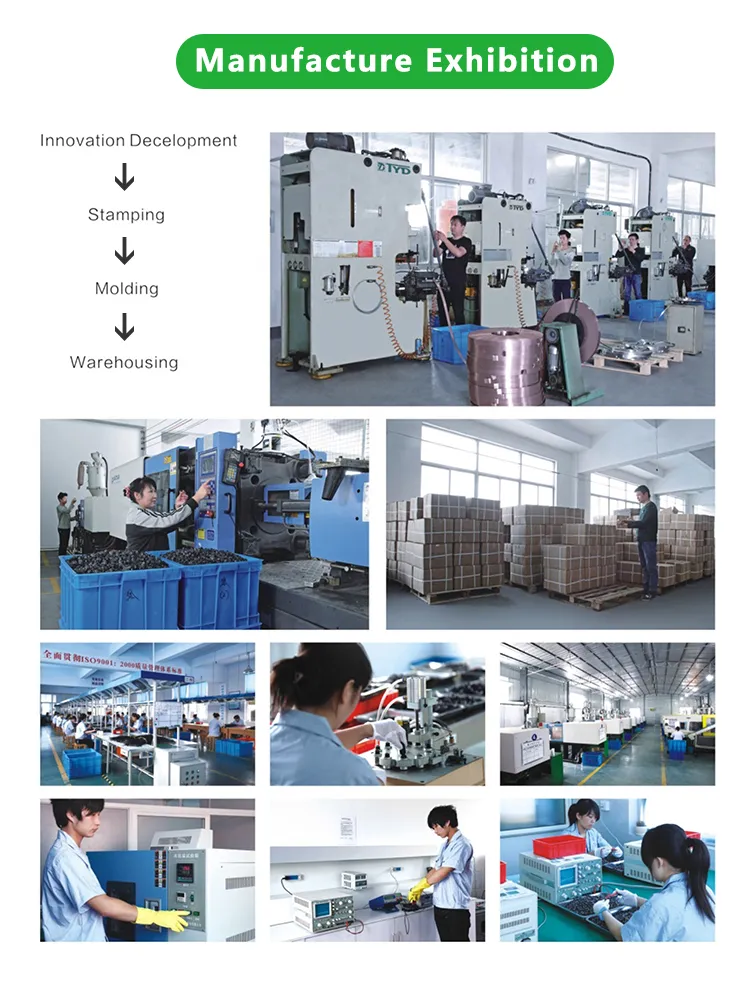

After Sales Support

Frequently Asked Questions

Q1: What is the rated voltage for these MC4 connectors? The connectors are rated for 1500V DC, making them suitable for high-voltage modern photovoltaic systems.
Q2: Are these connectors waterproof for outdoor use? Yes, they feature an IP68 protection rating, which ensures they are dust-tight and capable of withstanding immersion in water.
Q3: What certifications do the products carry? Our solar connectors are fully certified by TUV and UL, adhering to global safety and quality standards.
Q4: What is the warranty period for the solar connectors? We provide a 25-year warranty, ensuring long-term performance and reliability for your solar installations.
Q5: Which cable sizes are compatible with this model? These connectors are compatible with cable cross-sections ranging from 2.5mm² to 10mm² (14~8AWG).
Q6: What material is used for the contact pins? The contact pins are made from premium tin-plated copper to ensure high conductivity and stability.
