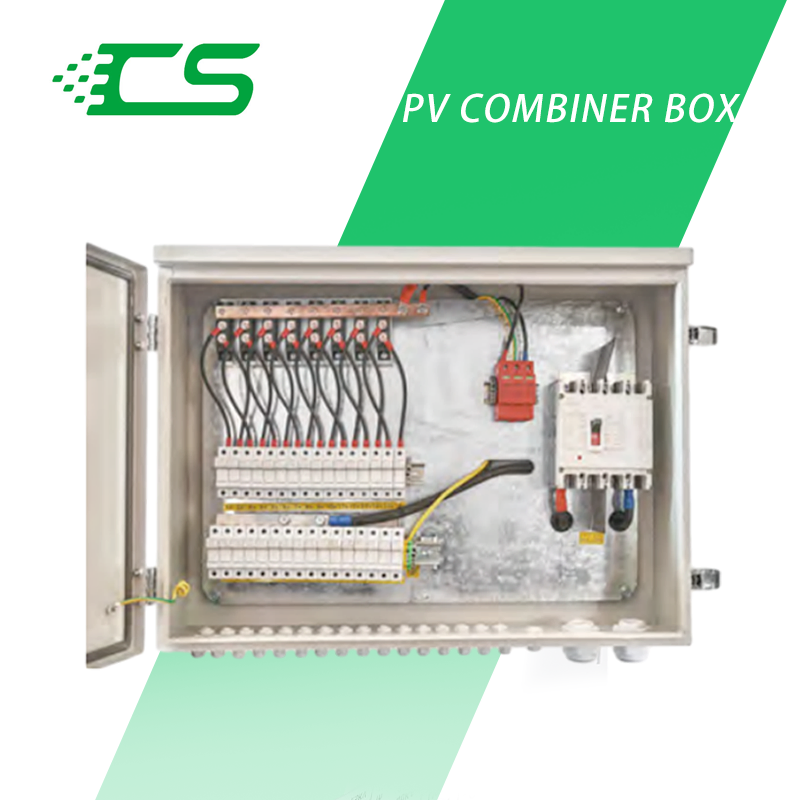

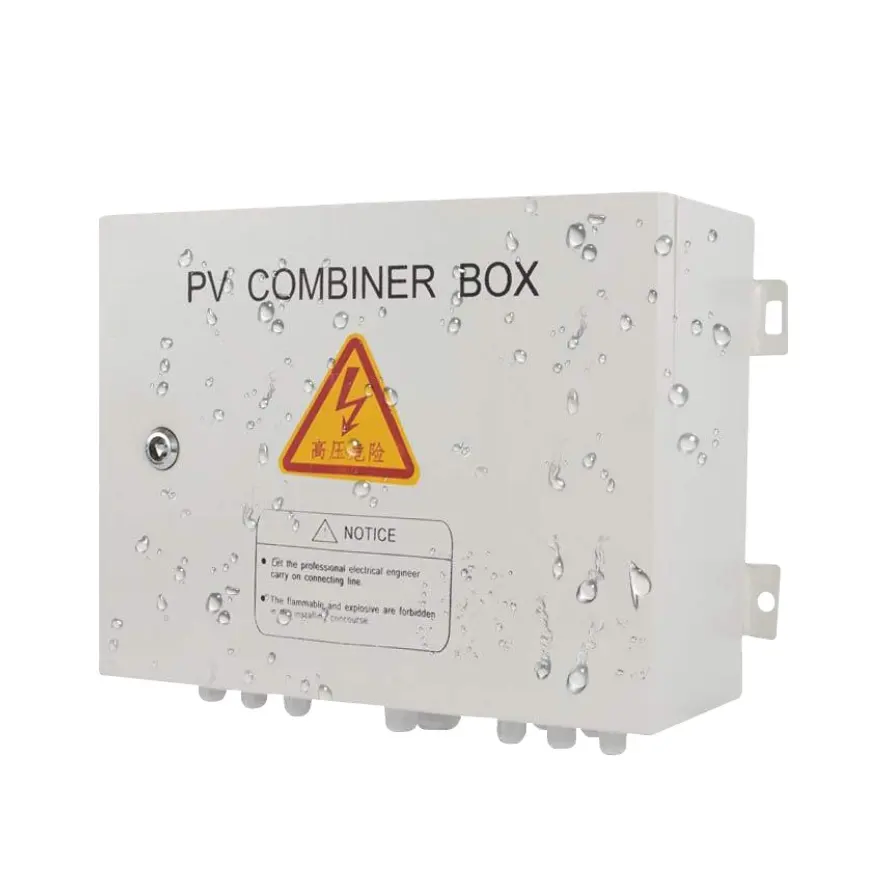

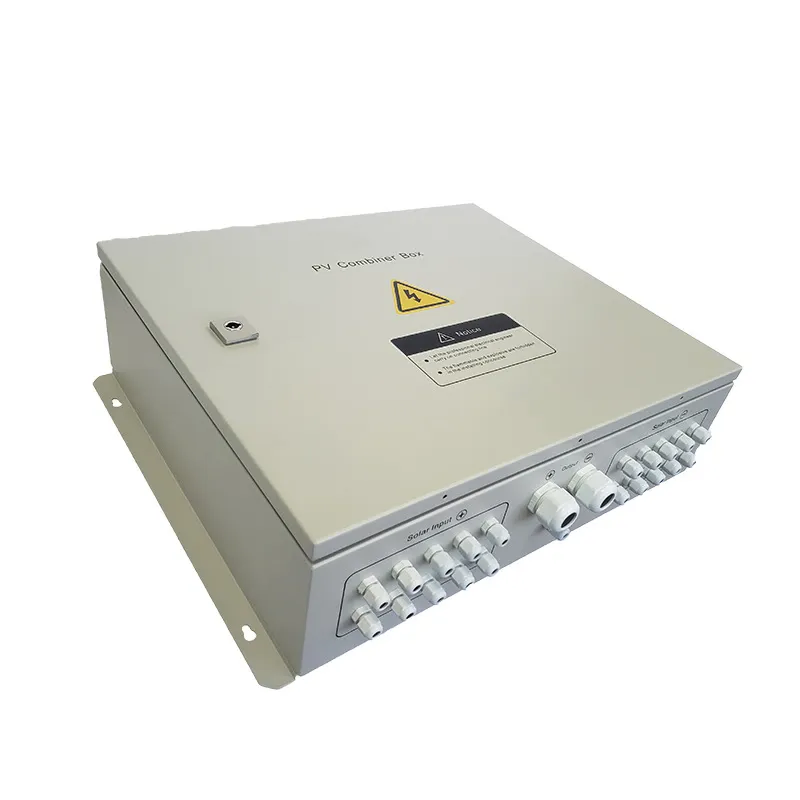

Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
1 / 5
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel
Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel

Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info

Model NO.
CSPVB/16-1
Product Name
Solar Combiner Box
IP Rating
IP65
Certification
ISO, CCC, CQC, CE, ISO9001
Shape
Rectangle
Installation Site
Rooftop
Color
Customized
Keyword
Slew Worm Gear Drive

Packaging & Delivery

Package Size
900.00cm * 480.00cm * 200.00cm
Gross Weight
30.000kg
Lead Time
3-30 days based on quantity

Product Description

Electrical Parameters
System maximum DC voltage1000V
Maximum input current for each string15A
Maximum input strings16
Maximum output switch current240A
Number of Output strings1
Lightning Protection
Category of testGrade 2 protection
Nominal discharge current20kA
Maximum discharge current40 kA
Voltage protection level3.8kV
System & Environmental
Protection gradeIP65
Box materialEngineering plastics
Operating Temperature-40°C ~ +85°C
Installation methodWall mounting type
Altitude4km

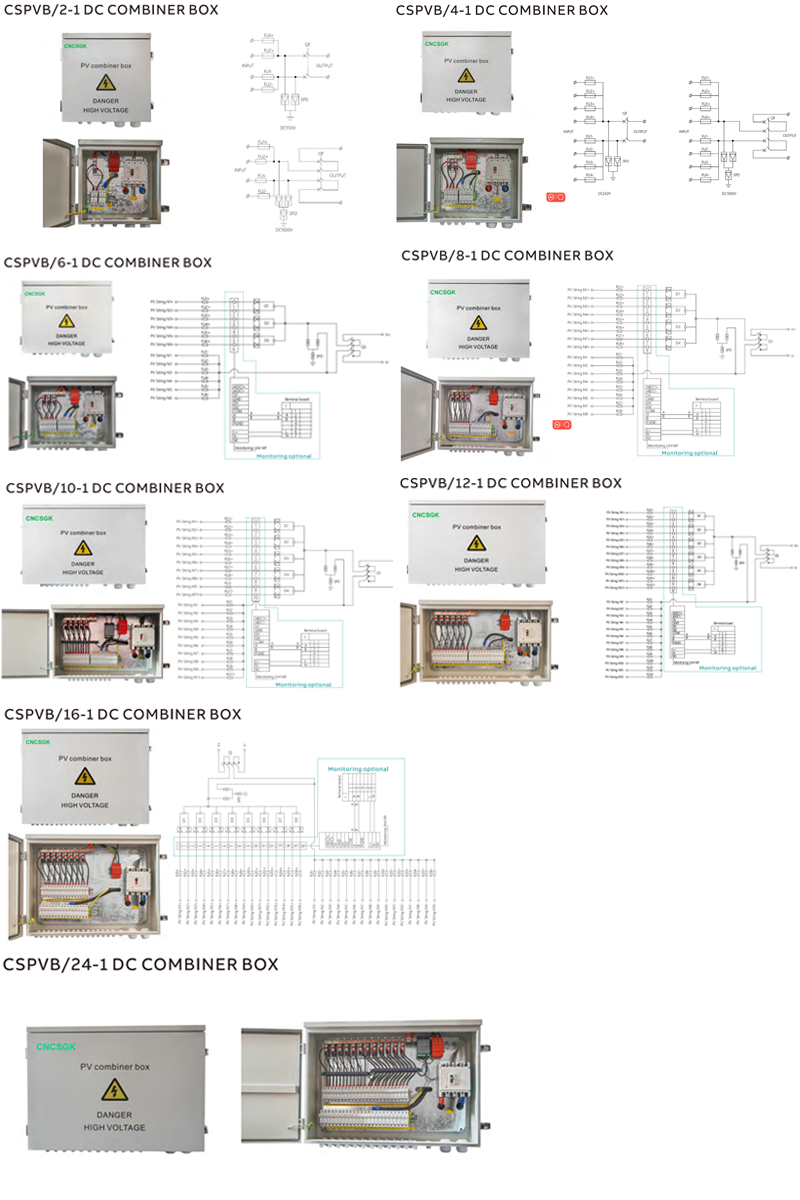

Available Configurations: 2-way, 3-way, 4-way, 6-way, 8-way, 10-way, 12-way, 14-way, 16-way, 20-way, and 24-way combiner boxes with various dimensions to meet specific solar array requirements.

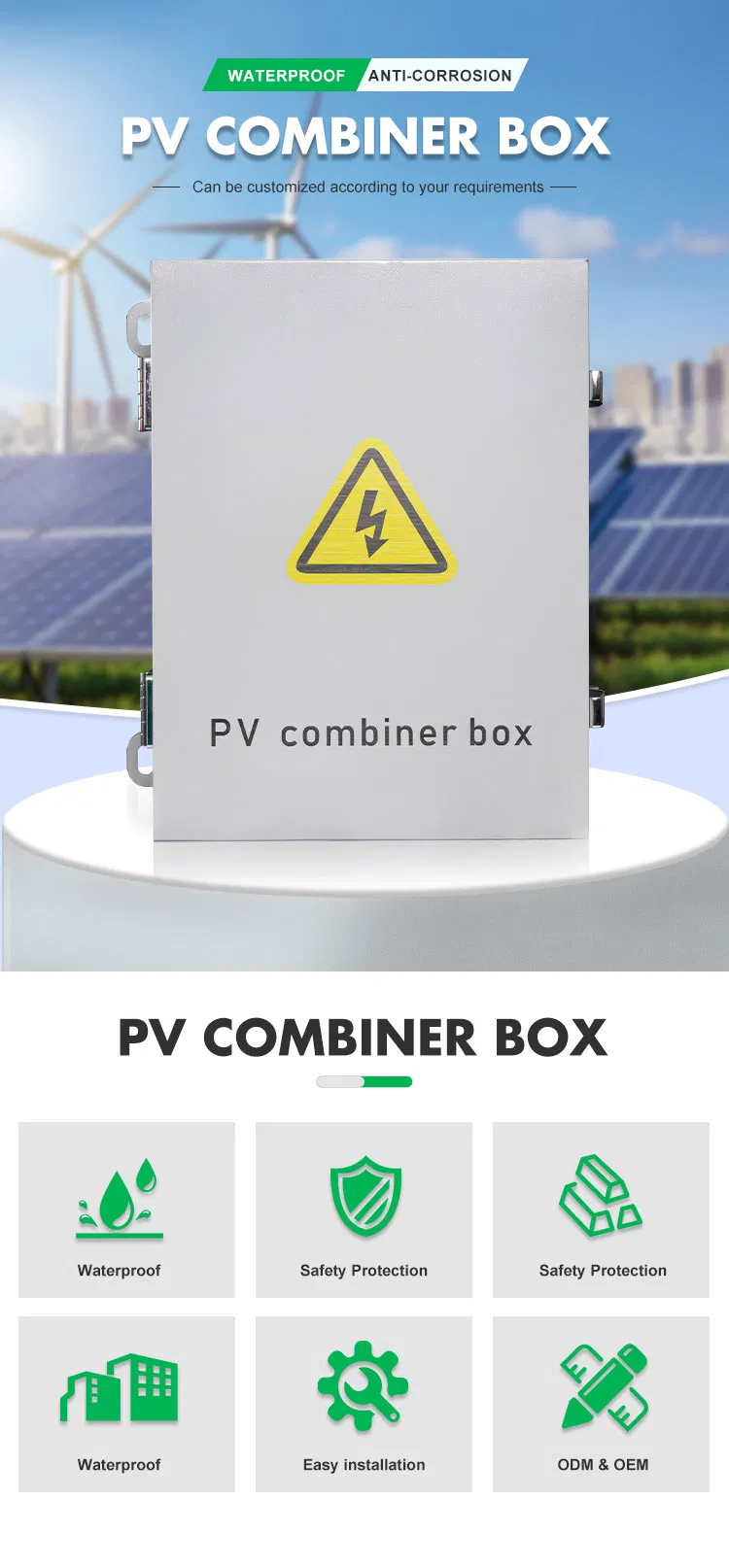

Solar Combiner Box Details

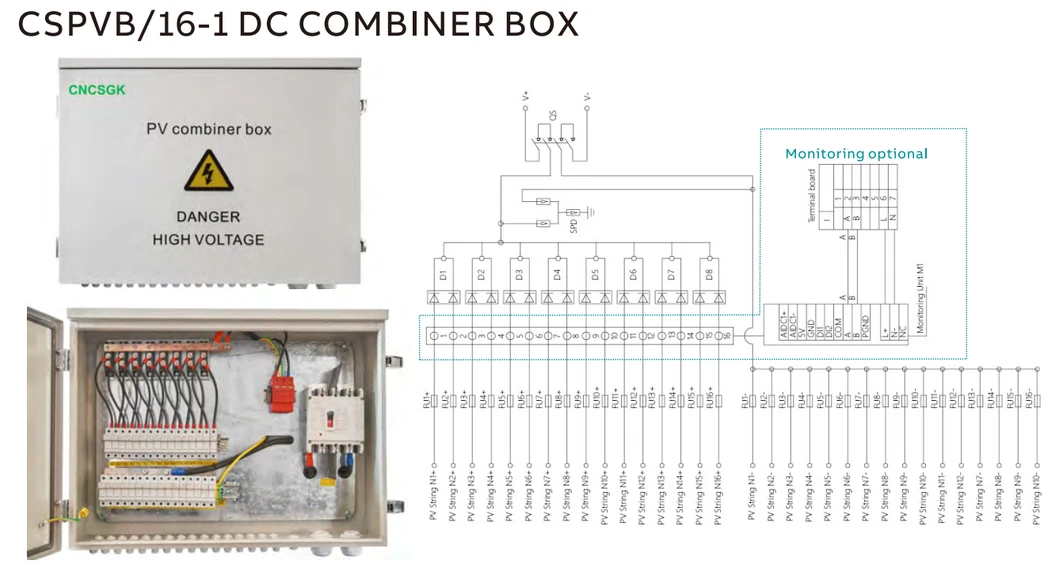

Wiring Layout

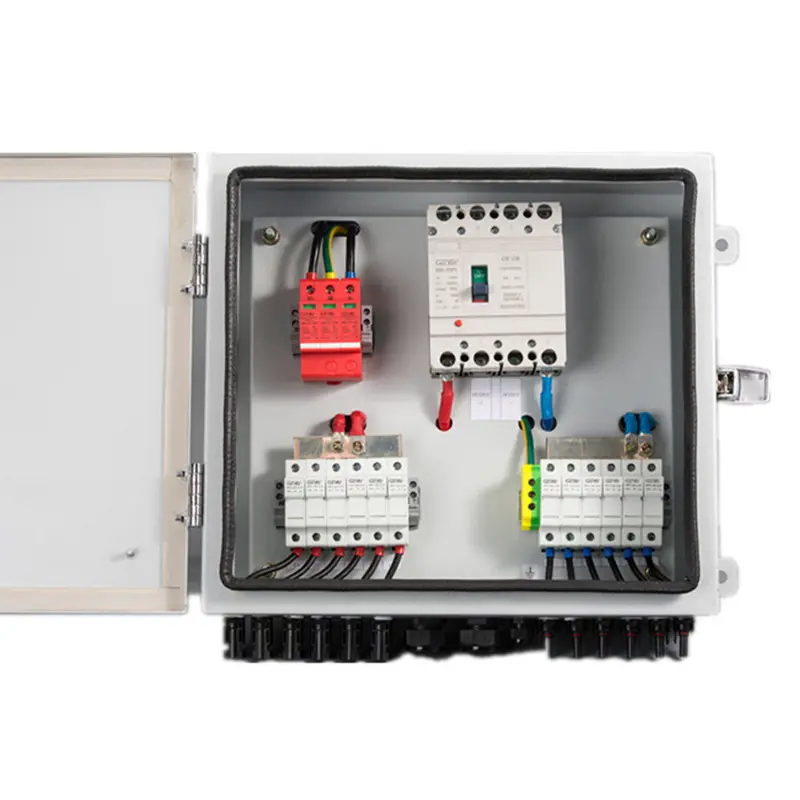

Internal Components

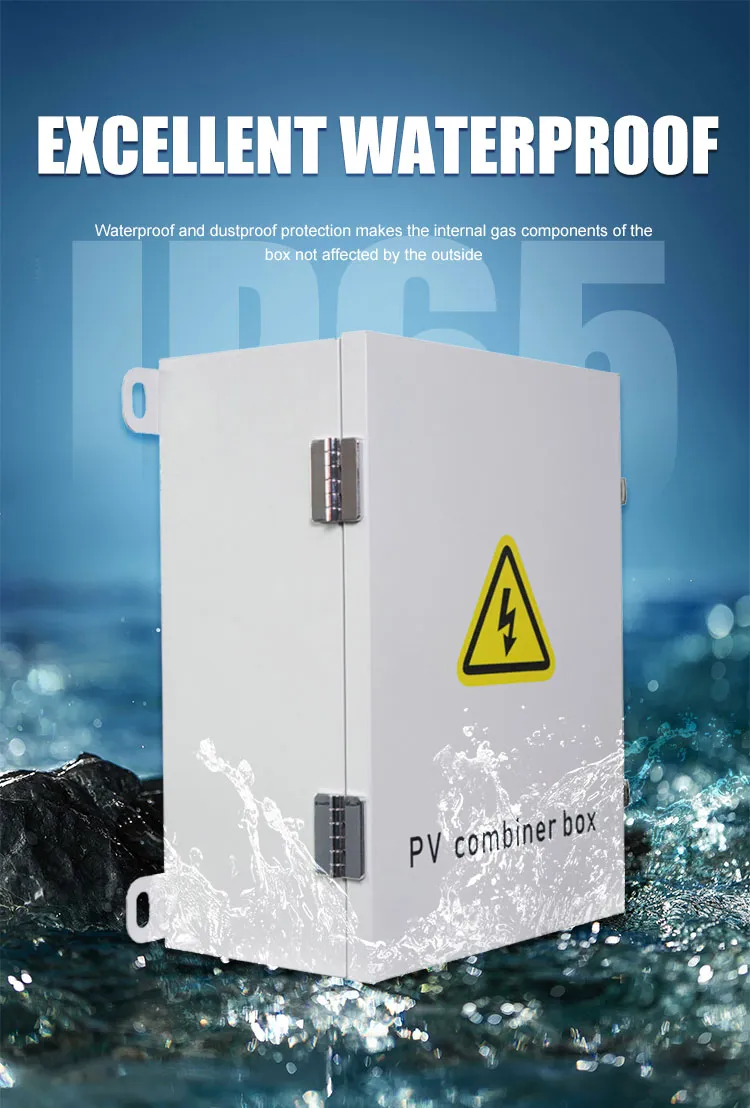

Protective Housing

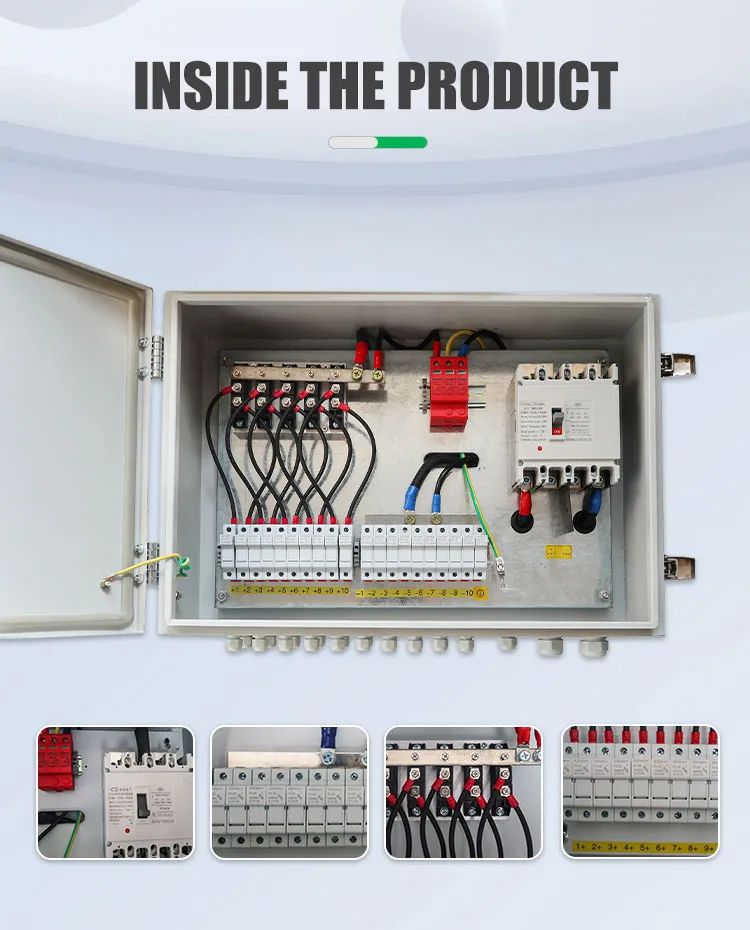

Component View

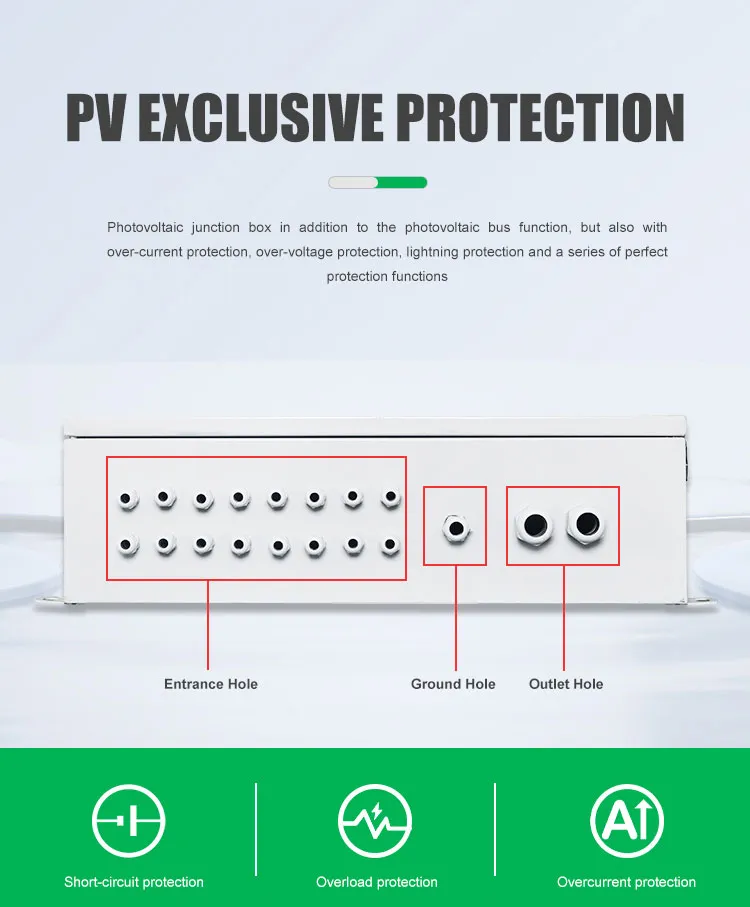

Mounting Details

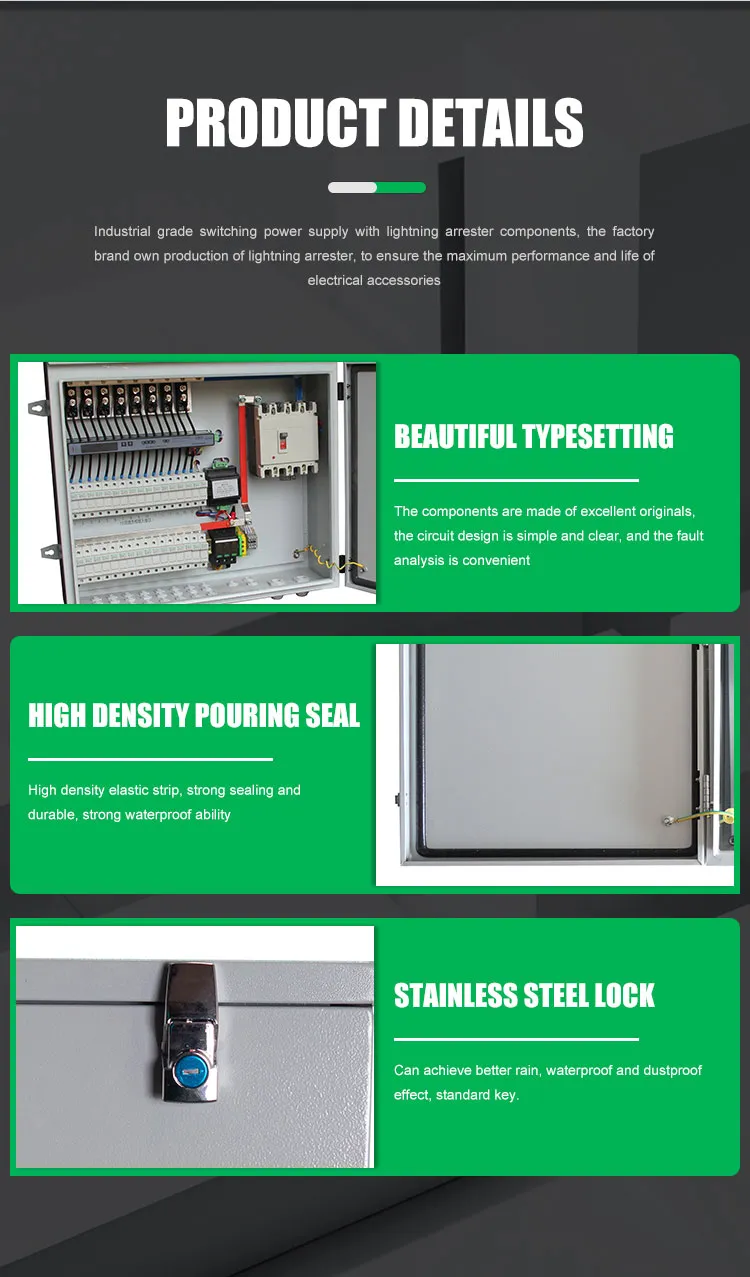

16 Strings Connection
Module Protection
Technical Specifications Overview
Surge Protection
Box Durability
Installation Guide
Solar Junction Detail
Certification Markings
Bottom Connectivity

Frequently Asked Questions

What is the primary function of this PV Combiner Box?
The 16-in-1-out solar combiner box is designed to aggregate the DC current from 16 solar panel strings into a single output, providing overcurrent and surge protection for the entire array.
Is the unit suitable for outdoor installation?
Yes, the box features an IP65 protection rating, making it dust-tight and protected against water jets, ideal for rooftop and outdoor installations.
What type of lightning protection is integrated?
It includes a Grade 2 PV surge protector with a maximum discharge current of 40kA and a nominal discharge current of 20kA for superior system safety.
What is the maximum operating temperature range?
The combiner box is engineered to operate reliably in extreme environments, with a temperature range from -40°C to +85°C.
Does the box support high-altitude installations?
Yes, the technical specifications confirm compatibility with altitudes up to 4km (4000 meters) without compromising performance.
Are MC4 waterproof connectors standard?
Yes, MC4R waterproof connectors are included as a standard feature to ensure secure and weatherproof wiring connections.
