| Model NO. | GD-PV05 |
|---|---|
| Certification | ISO9001:2000, VDE, CCC |
| Form | All-packaged Type |
| Operation Voltage | Low Voltage |
| Size | Industrial |
| Application Range | Solar Panels System |
| Shell Material | PC/ABS |
| Protection Grade | IP65 |
| Maximum DC Voltage | DC 1000V |
| Nominal Discharge Current | 20ka |
| Strings | 6 |
| Warranty | 3 Years |

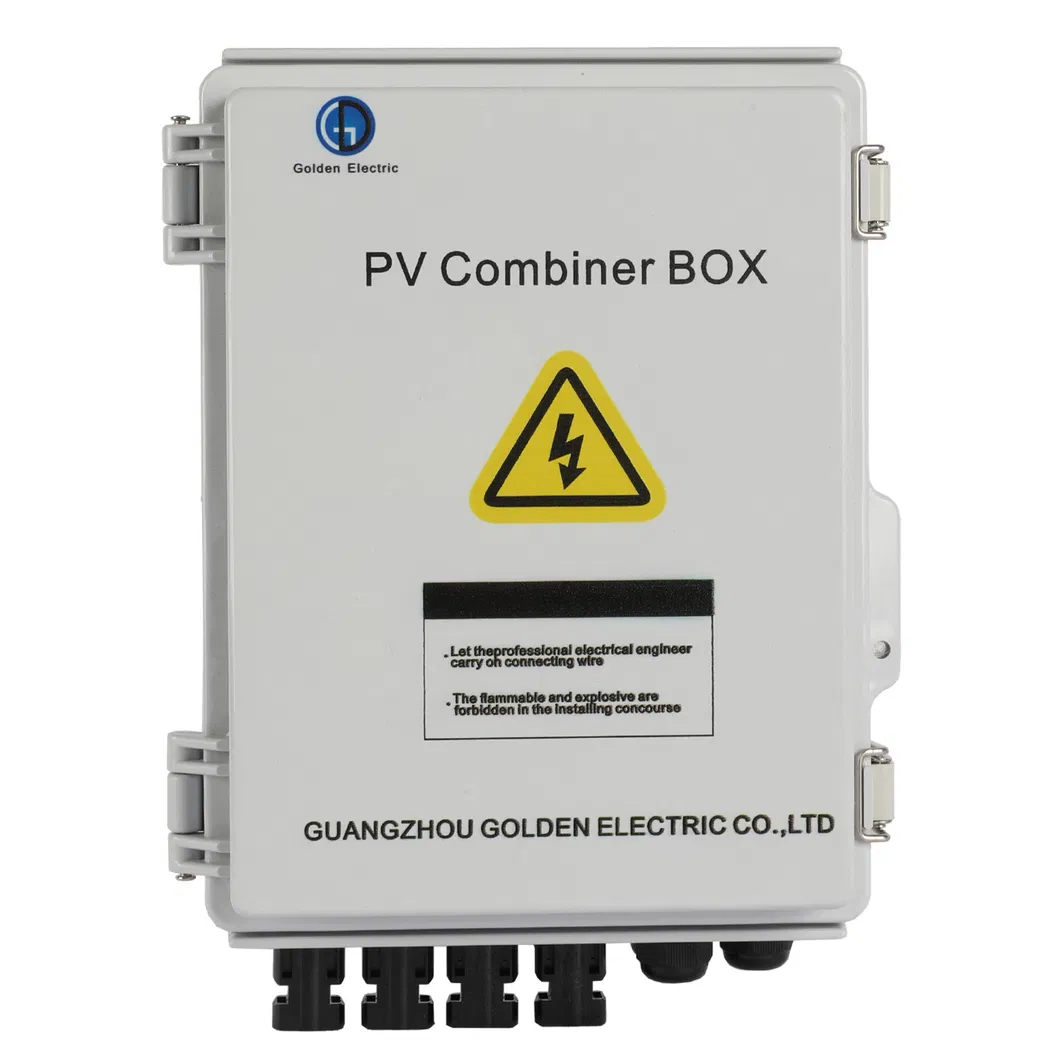

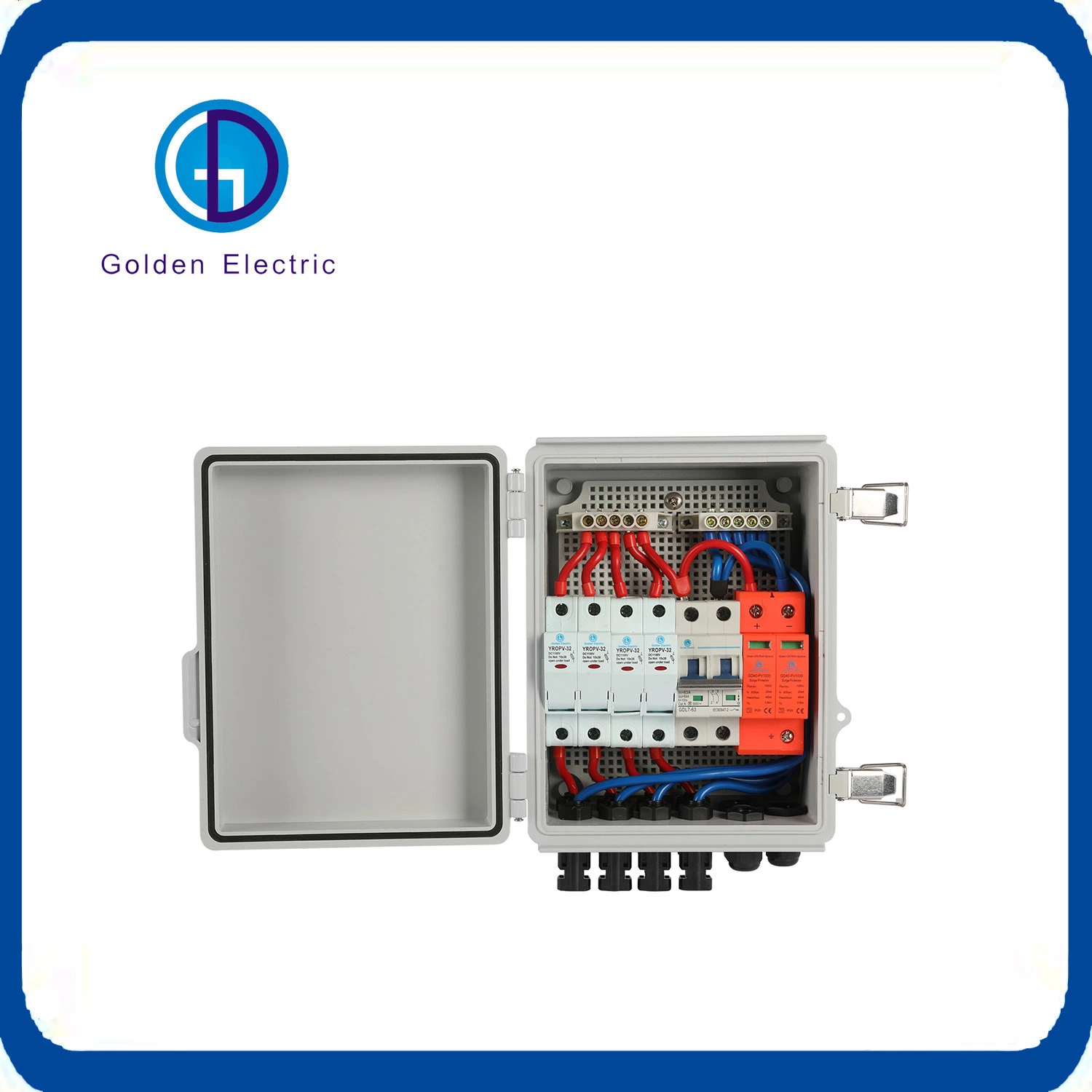

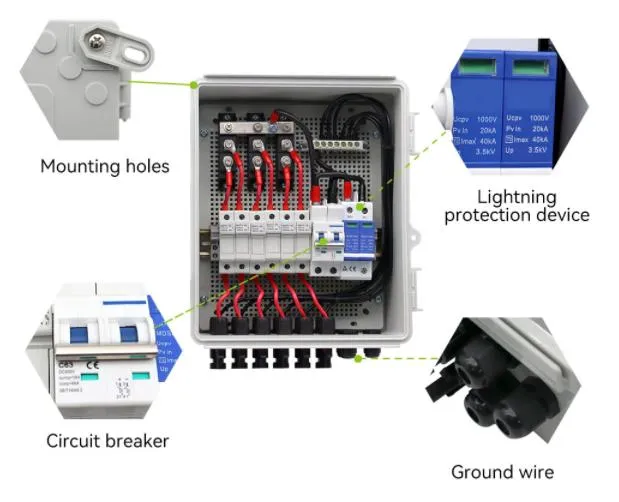

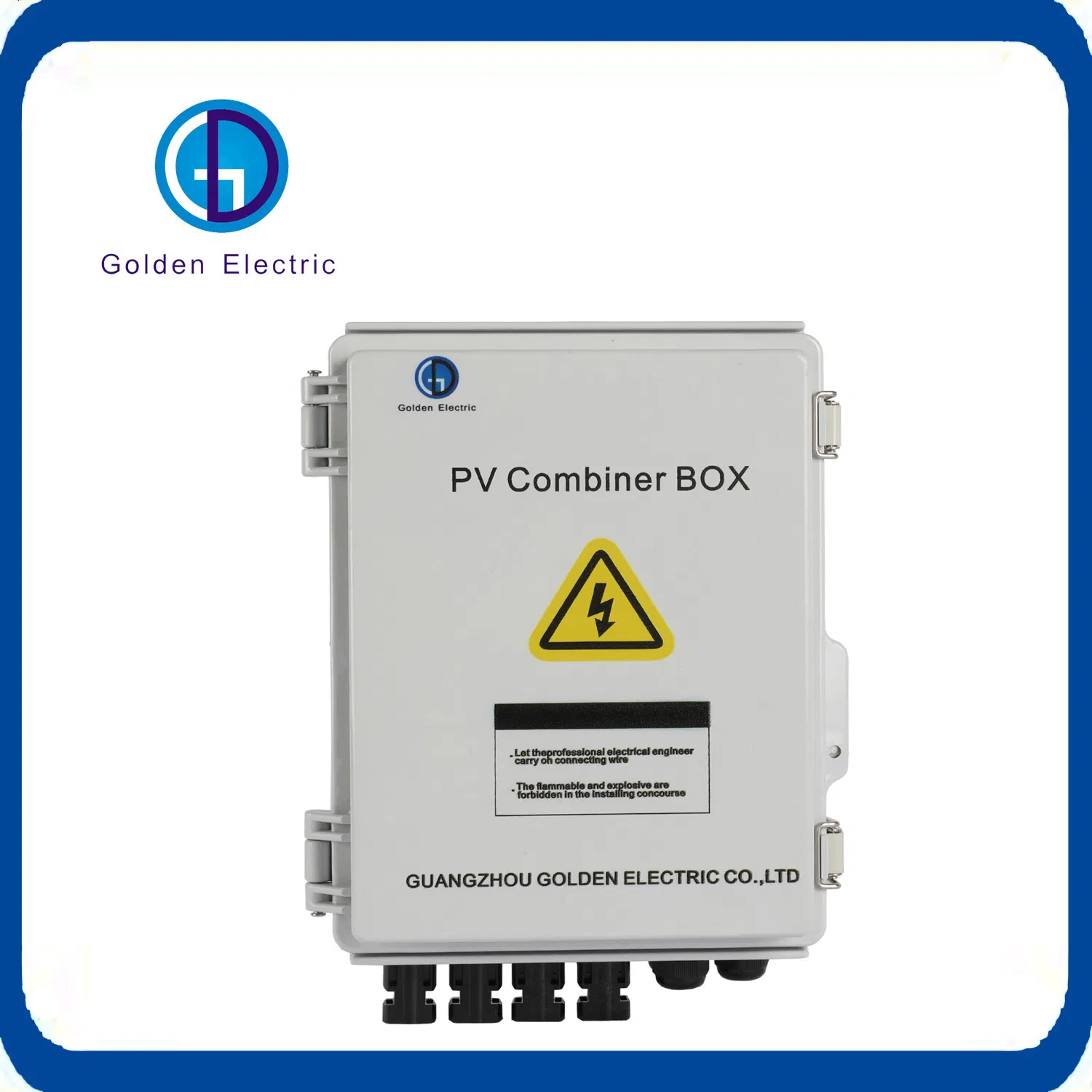

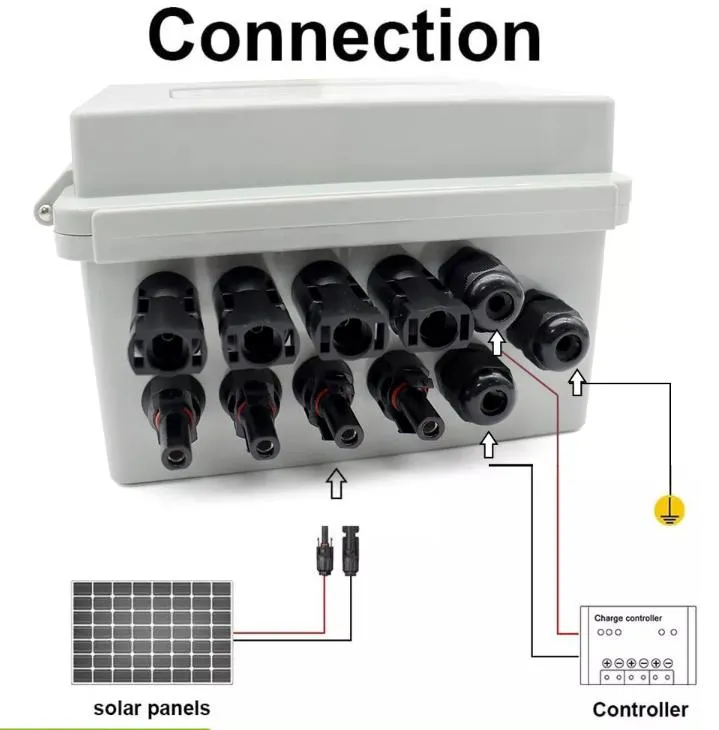

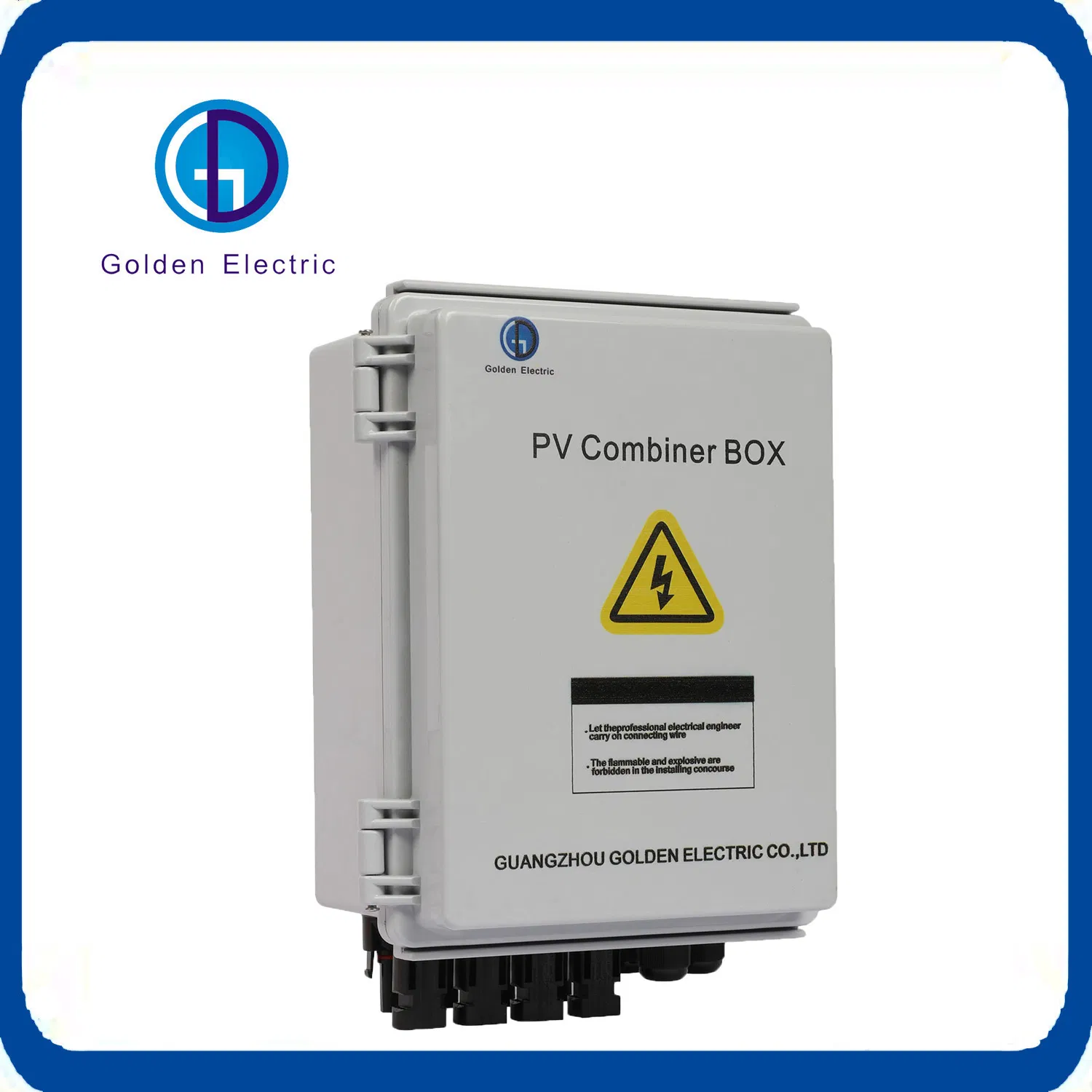

Our new design combiner box is suitable for inverters with a maximum input voltage of DC550V/DC1000V. It features a 6PV input channel and 1 output channel for single MPPT inverters. The box body is constructed from high-quality PVC engineering materials, rigorously tested for fire retardancy, temperature rise, impact resistance, and anti-ultraviolet properties.
Design and configuration are in strict accordance with technical specifications for photo-voltaic junction equipment. This product provides users with a safe, brief, and beautiful solution for solar power systems.
| System Max DC Voltage | 550V / 1000V |
|---|---|
| Max Input Strings | 6 |
| Max Input Current (per string) | 15A |
| Max Output Switch Current | 20A / 32A |
| Nominal Discharge Current | 20KA |
| Max Discharge Current | 40KA |
| Protection Level | 2.8KV / 3.8KV |
| Operating Temperature | -25°C to +55°C |
| Box Material | PC / ABS |
| Installation Method | Wall Mounting |
