Product Description

Overview & Basic Info

Model NO.

Petrol station (SS160Plus + SP300)

Range

0-5m

Measurement Accuracy

+/-0.5mm

Accuracy

0.1%

Material

SS316 Stainless Steel

Certification

CCC, ISO, ATEX, Iecex, EAC, Sil

Power Supply

DC12V

Protection Grade

IP68

Package Gross Weight

5.000kg

Product Description

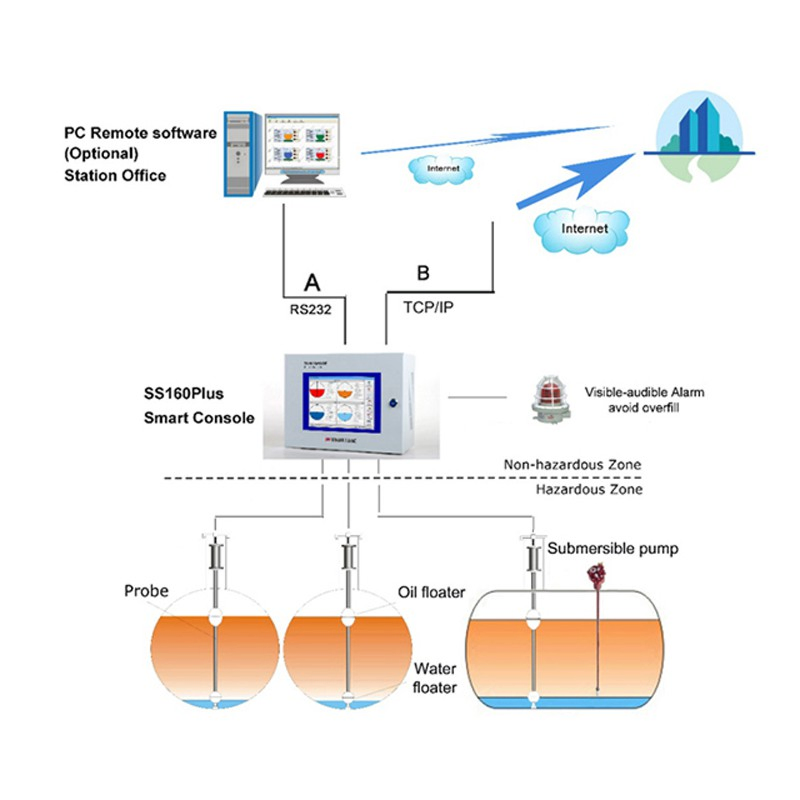

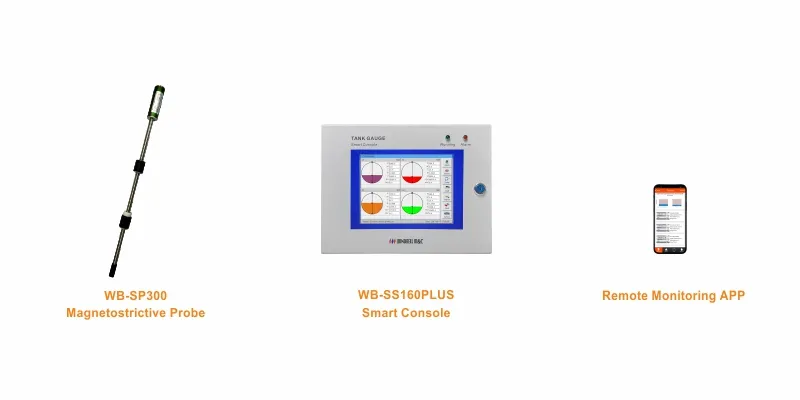

The automatic tank gauging system mainly includes the SP series magnetostrictive probe and SS series console. This system helps managers monitor fuel levels, water levels, and temperature in underground storage tanks in real-time.

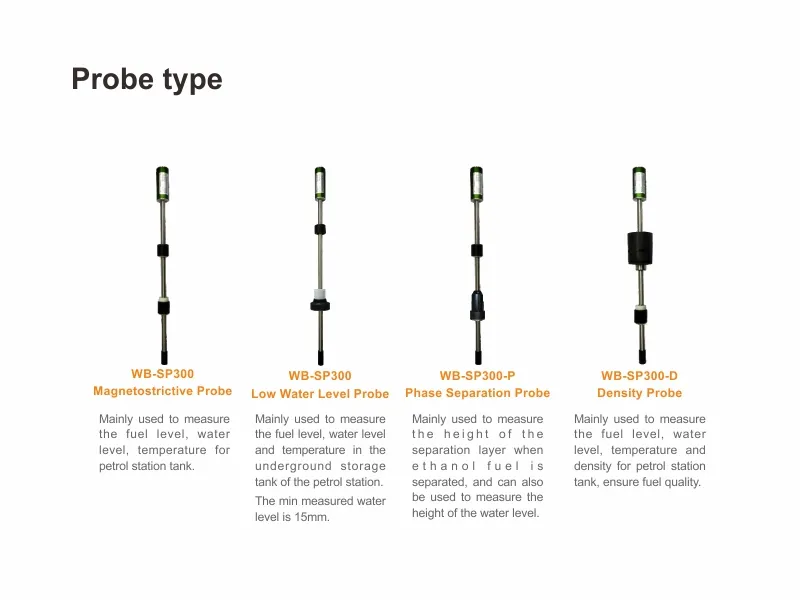

📡 SP300 Magnetostrictive Probe

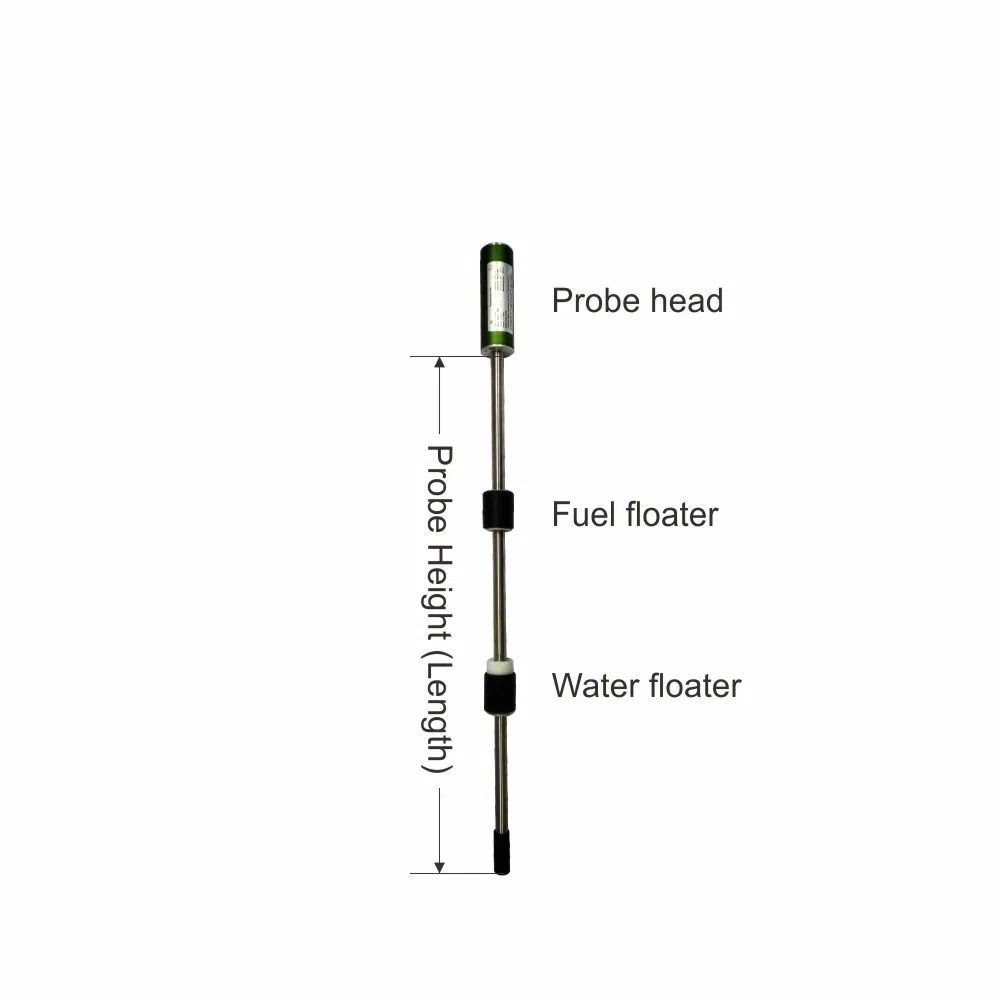

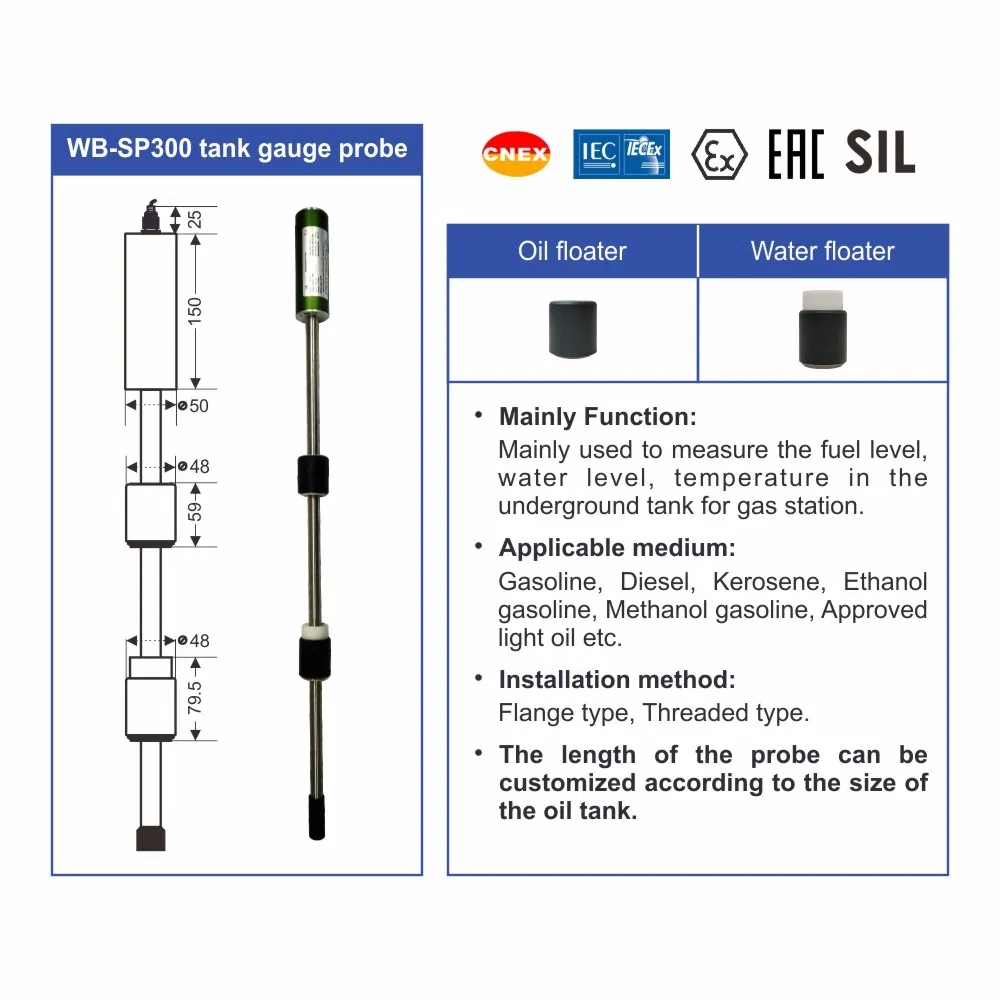

Composed of a probe head, temperature sensors, protection steel pipe, and magnetostrictive waveguide wire. It measures product level, water level, density (optional), and 5-point average temperature, transmitting digital data to the smart console.

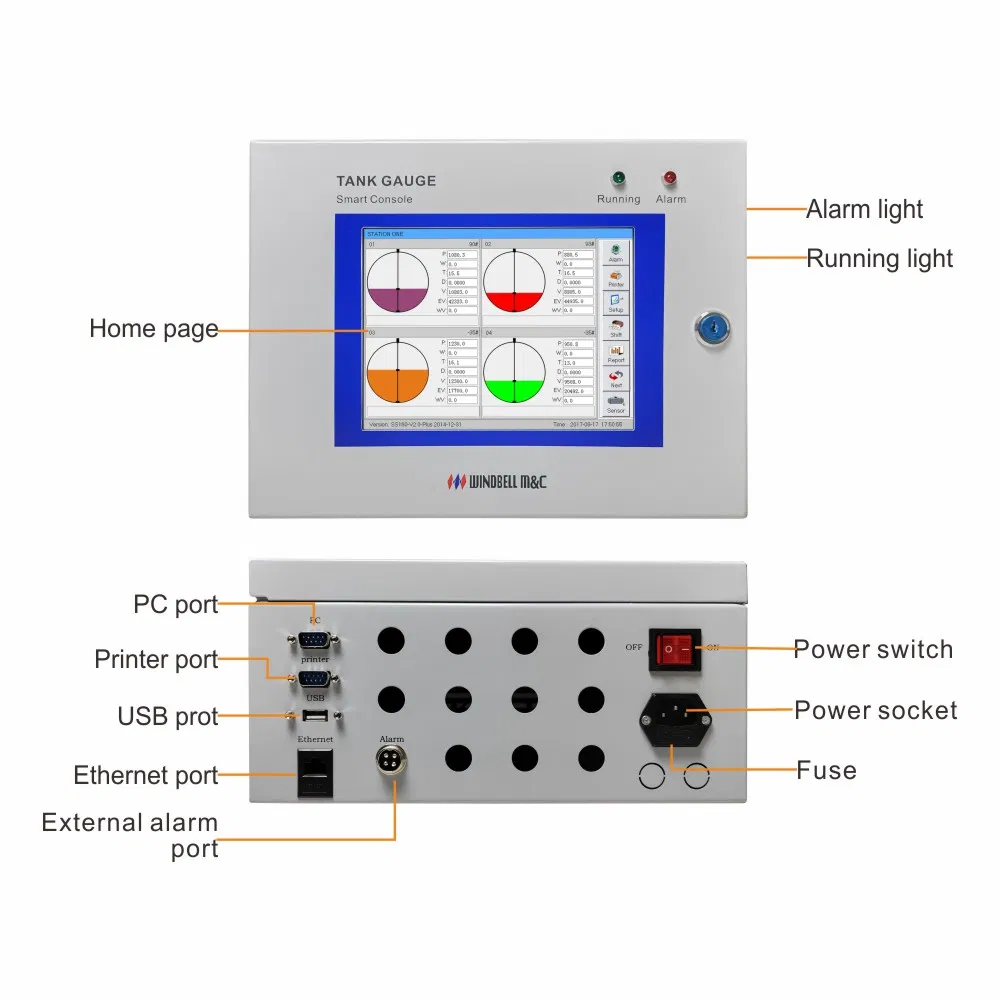

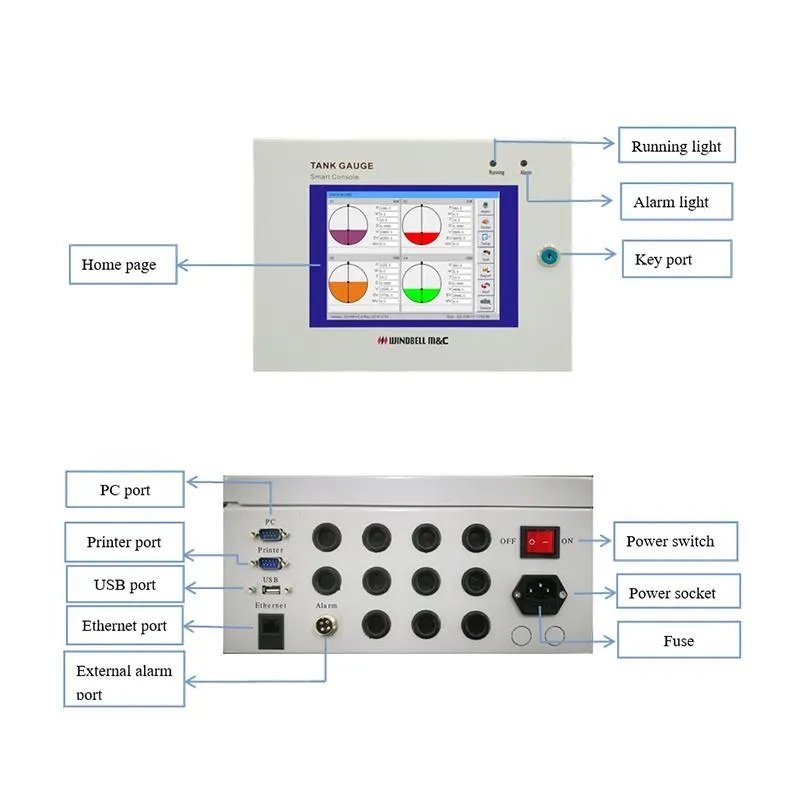

🖥️ Smart Console Interface

The display terminal features an 8'' TFT color touch screen (800*600 resolution). It monitors up to 12 fuel tanks simultaneously, displaying inventory, delivery, and alarm information via RS485 communication.

Product Features

International graphic touch screen with user-friendly icons.
Supports mm/inch, liter/gallon units.
Real-time product volume, water volume, and temperature monitoring.
Comprehensive reports: inventory, delivery, alarms, and system logs.
Multi-language support (English, Spanish, Portuguese, French, Russian).
Monitor up to 12 probes and 40 leak sensors.
Automatic alarm function for abnormal status.

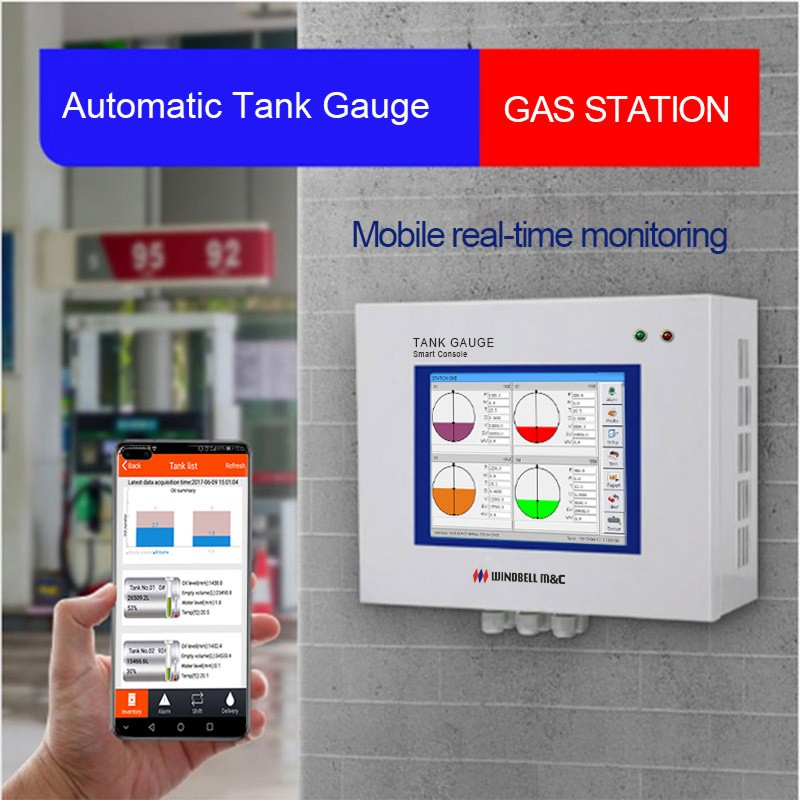

iTank APP for remote Android/iOS monitoring.
ATEX, EAC, CQST, SIL approved for hazardous zones.
Compatible with gasoline, kerosene, diesel, and ethanol fuel.

Product Parameters

Parameter	WB-SS160PLUS Smart Console Specs
Power	AC90 ~ 276VAC, 47-440HZ
Working temperature	-20ºC to 60ºC
Display	8-inch color touch screen
Ex-proof grade	[EX ia Ga] IIA
Monitor probes	6 Standard, Up to 12
Ports	RS485, RS232, USB, Ethernet
Dimensions	302314.5cm

Parameter	WB-SP300 Magnetostrictive Probe Specs
Precision	±0.5mm
Resolution (Level)	0.01mm
Temperature Points	5 Points
Material	316L stainless steel
Protection Grade	IP68
Rated Pressure	1.6MPa
Communication	RS485 (Max 1200m)

Application & Our Advantages

Packaging & Shipping

Frequently Asked Questions

What is an automatic tank gauging system?

An automatic tank gauge (ATG) is an electronic device whose basic function is to monitor the fuel level in the tank over a period of time to detect leaks and manage inventory.

What does an ATG system do for petrol stations?

ATGs provide tank inventory information, leak testing for tanks and piping, and automated management features that meet safety detection requirements.

What is an ATG petrol pump controller?

It acts as a protocol converter, communicating between various fuel dispensers and ATG probes to allow unified control over the station's equipment.

How many tanks can one console monitor?

The standard configuration monitors 6 probes, but the smart console can be upgraded to monitor up to 12 fuel tanks simultaneously.

What certifications does this system hold?

The system is fully compliant with international safety standards, holding ATEX, EAC, CQST, and SIL certifications for hazardous environment operations.

What types of fuel can be measured?

The system is applicable for Gasoline, Kerosene, Diesel, Ethanol gasoline, Methanol gasoline, and other approved light oils.
