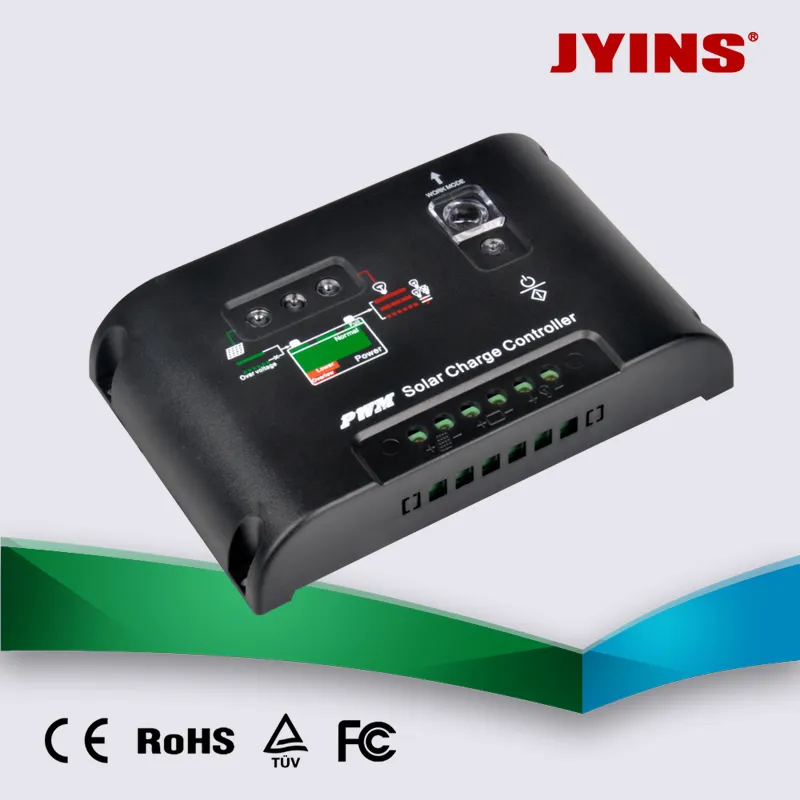

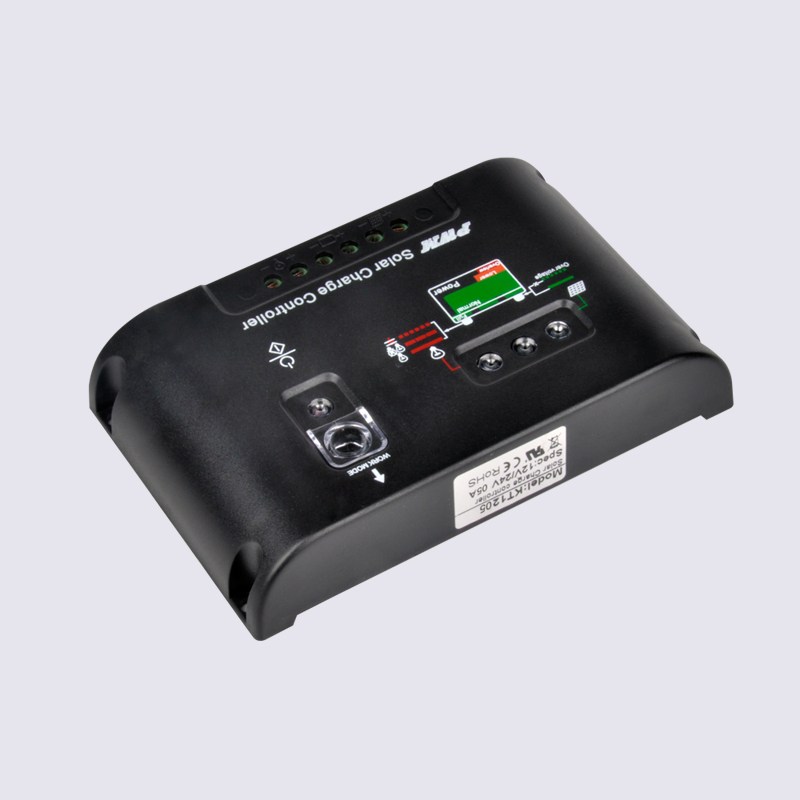

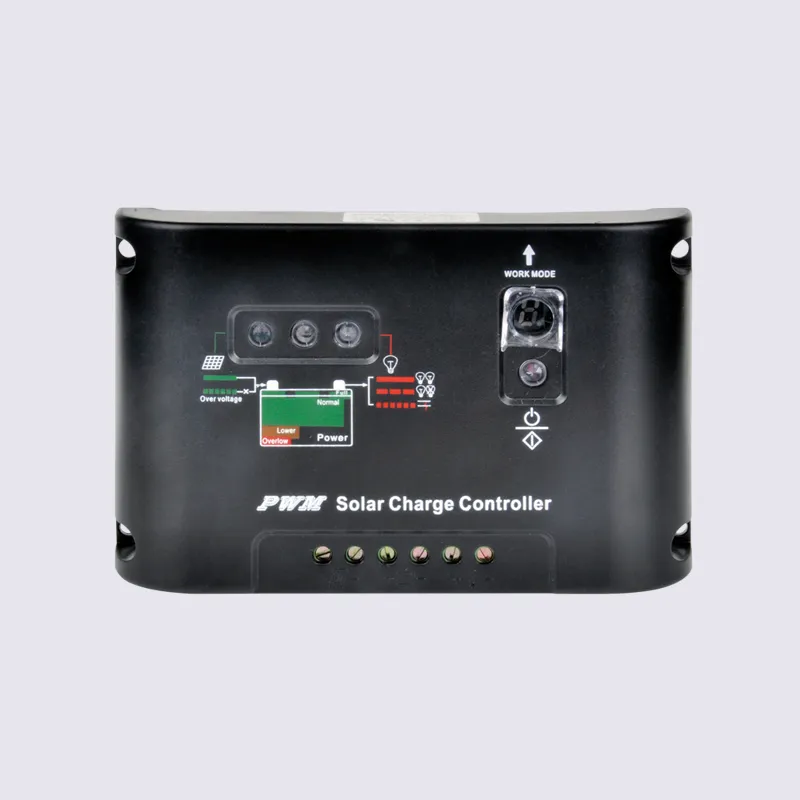

12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller
12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller
12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller
1 / 3
12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller
12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller
12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller

12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller

Customization: Available
Condition: New
Certification: ISO, CE
Send Inquiry

Product Description

📋

Basic Info.

Model NO.
KT
Application
Collector Controller, Solar System Controller, Charger Controller, Lighting Controller, Solar Working Station
Rated Voltage
12V/24V
Control Mode
PWM
Warranty
18 Months
Approval
CE & RoHS
ODM & OEM
Accepted
Weight
210g
Dimension
140*90.5*28.5mm
Functions
Time & Light Control
HS Code
8504403090
Capacity
10000 PCS/Months
☀️

Product Description

12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller

PWM Solar Charge Controller 1

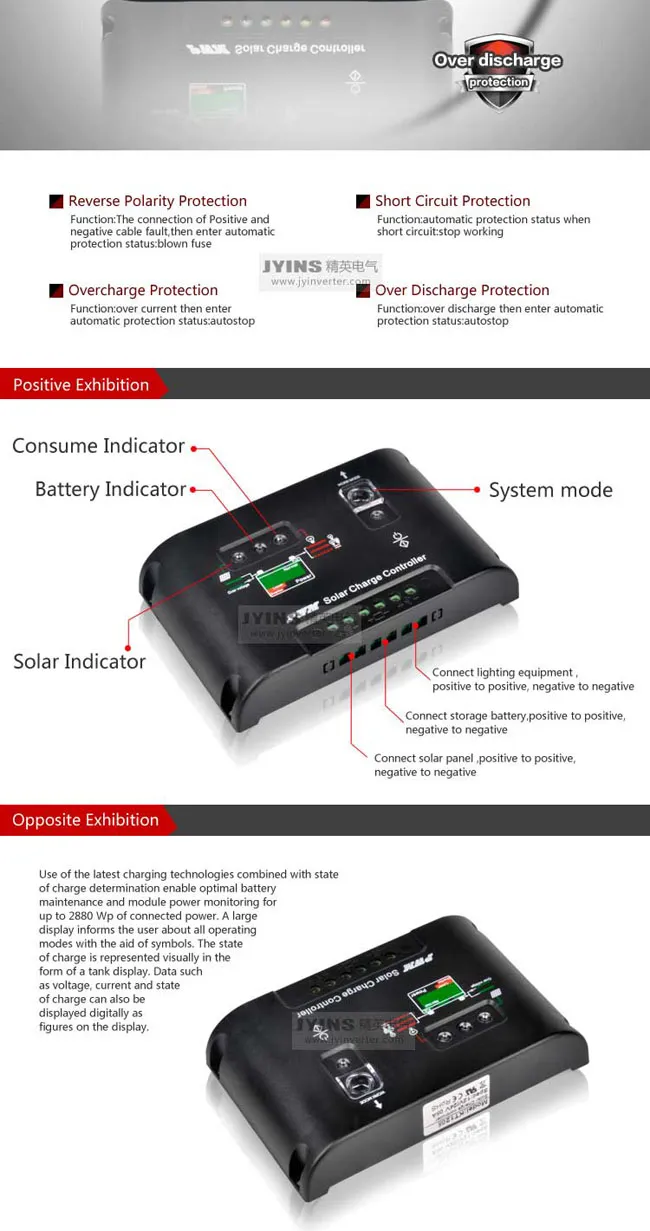

PWM Solar Charge Controller 2

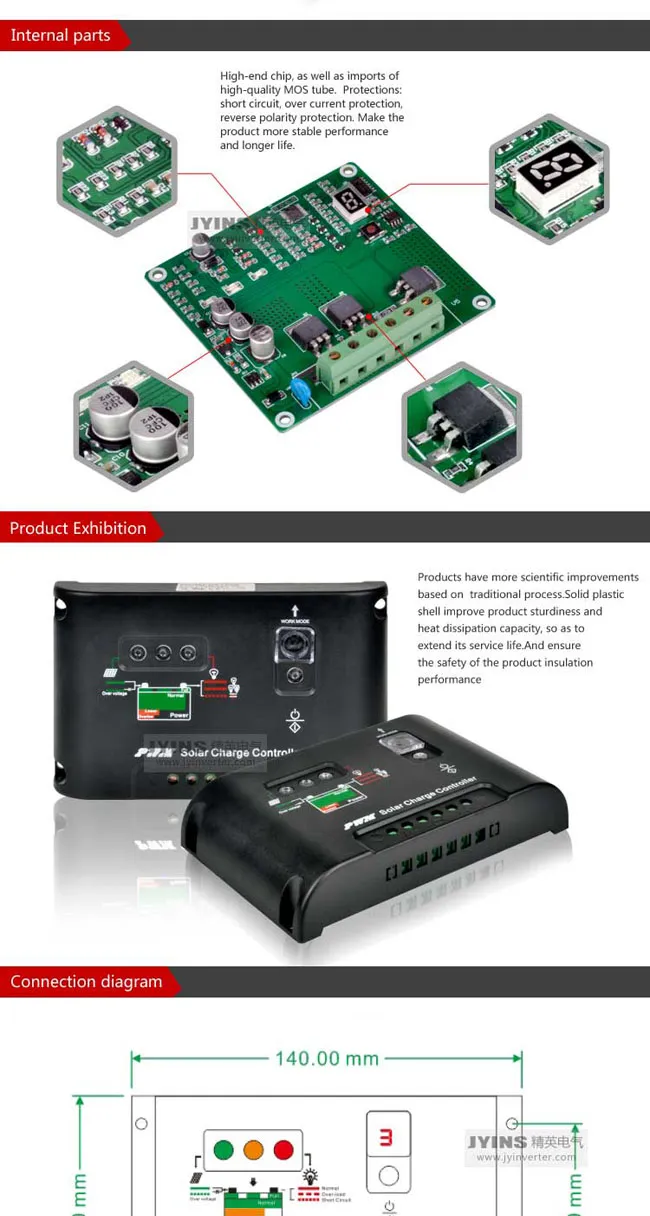

PWM Solar Charge Controller 3

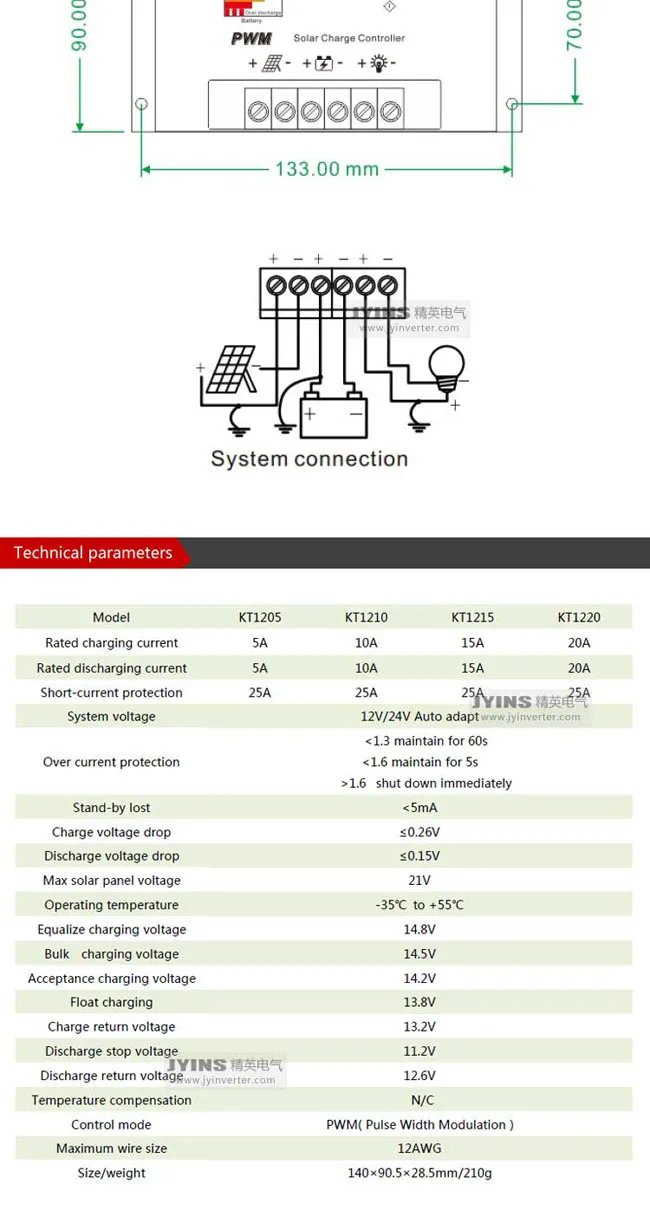

PWM Solar Charge Controller 4
📊

Technical Parameters

ModelKT1205KT1210KT1215KT1220
Rated charging current5A10A15A20A
Rated discharging current5A10A15A20A
Short-current protection25A25A25A25A
System voltage12V/24V Auto adapt
Over current protection<1.3 maintain for 60s; <1.6 maintain for 5s; >1.6 shut down immediately
Stand-by lost<5mA
Max solar panel voltage21V
Operating temperature-35ºC to +55ºC
Float charging13.8V
Discharge stop voltage11.2V
Control modePWM (Pulse Width Modulation)
Dimension/Weight140×90.5×28.5mm / 210g
Note:
1. All voltages are for 12V system, please multiply by 2 if using a 24V system.
2. Voltage tolerance is 1%.
3. Product specifications are subject to change without prior notice.
🏆

Why Choose Us

Why Choose Us 1
Why Choose Us 2
❓

FAQ

Would you accept to use our logo?
If you have good quantity, it is absolutely no problem to do OEM.
What is your monthly capacity?
It depends on the model. For relay type small capacity, it can reach near 200,000pcs, and big capacity near 30,000pcs.
Where is your primary market?
Our products are popular in Russia, Indonesia, Philippines, Italy, America, Pakistan, and more. We look forward to mutual benefit from our cooperation.
Does the inverter connect with a solar system?
Yes. Due to the unique feature combining invert, charge, and AC auto-transfer switch, it can be used with solar systems, office equipment, and household items.
What kind of certificates do you have?
Our products have achieved CE and ROHS. Other certificates can be applied for as needed.
How long is the warranty or guaranty?
18 months.
