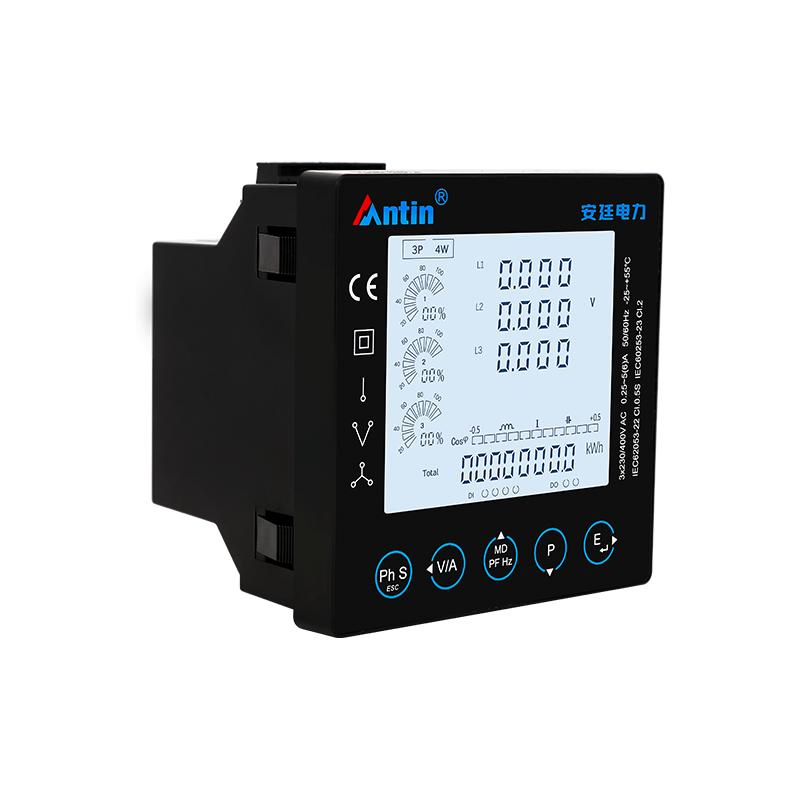

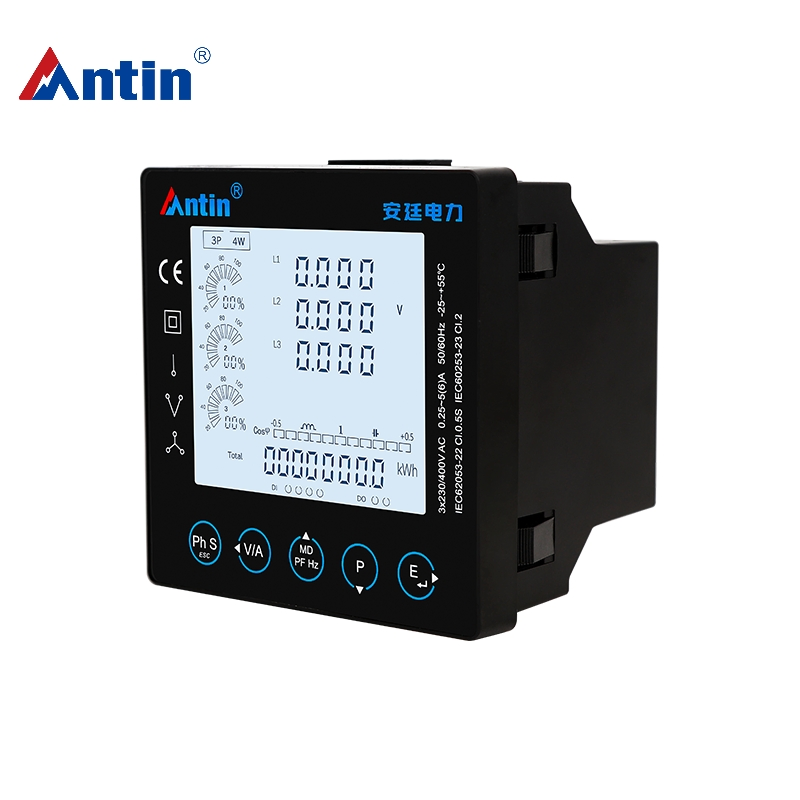

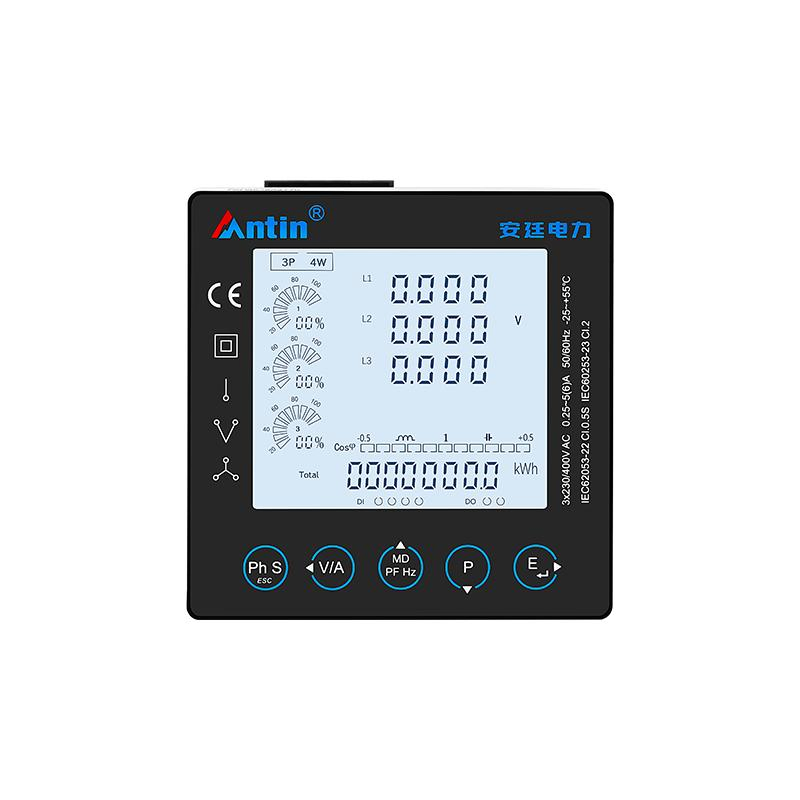

ATZ2000 Multimeter, Smart Energy Meter,96*96 Power Meter

1 / 5

ATZ2000 Multimeter, Smart Energy Meter,96*96 Power Meter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

ATZ2000

Display

Digital

Usage

Multi-Functional Energy Meter, Watt-Hour Meter, Industry and Home Use

Equipment

Embedded Panel

Type

Power Meter

Certification

Voltage

AC100/220/230/400V

IP Class

IP51

Communication

Modbus RTU

Accuracy Class

Active Power: Class0.5; Reactive Power: Class2

📝

Product Description

⚙️

Product Parameters

Applicable grid				Three-phase four-wire, three-phase three-wire, single two-wire, three-phase three-wire PT
Working power		Voltage range		AC/DC85~265V
		Power consumption		≤5W
Input Voltage	Rated		AC100V, 220V, 400V	1.2x continuous, 2x (10s)
	Power consumption		<0.4VA/Phase
	Impedance		≥200kΩ
	Frequency		45Hz~65Hz
Input Current	Secondary input		1A or 5A	Range: 1-9999A
	Short-time overcurrent		20 times max for 0.5s
	Impedance		≥0.1Ω
Accuracy Index	Voltage/Current		0.5%
	Active Power		Class 0.5S
	Reactive Power		Class 2
Communication	Protocol		Modbus RTU (RS485)
	Baud Rate		2400 to 38400bps
	Distance		1000m

📏

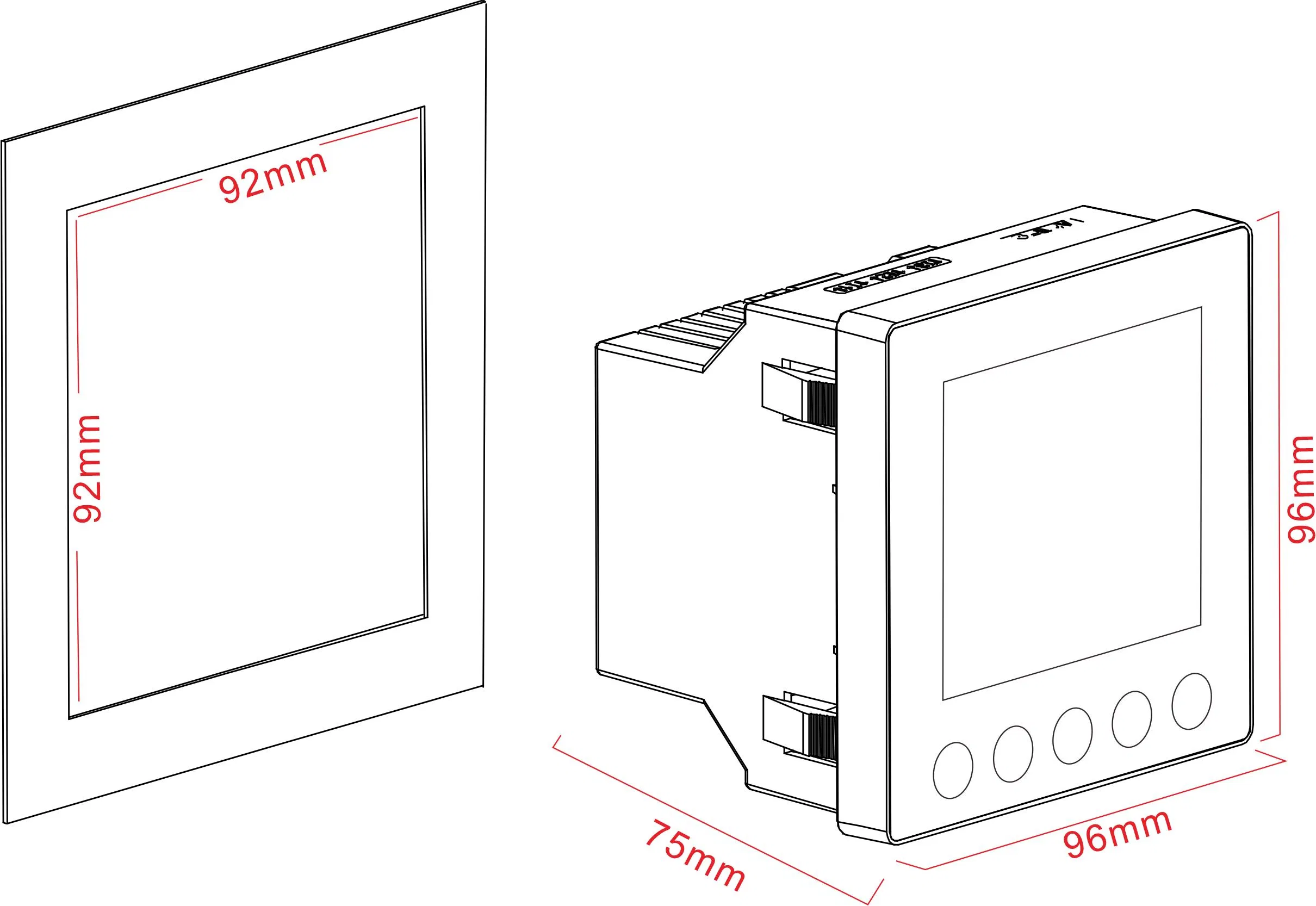

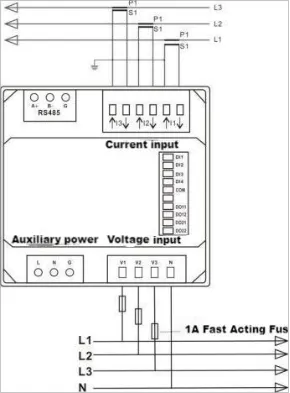

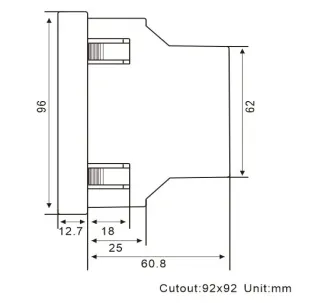

Dimension and Wiring

📸

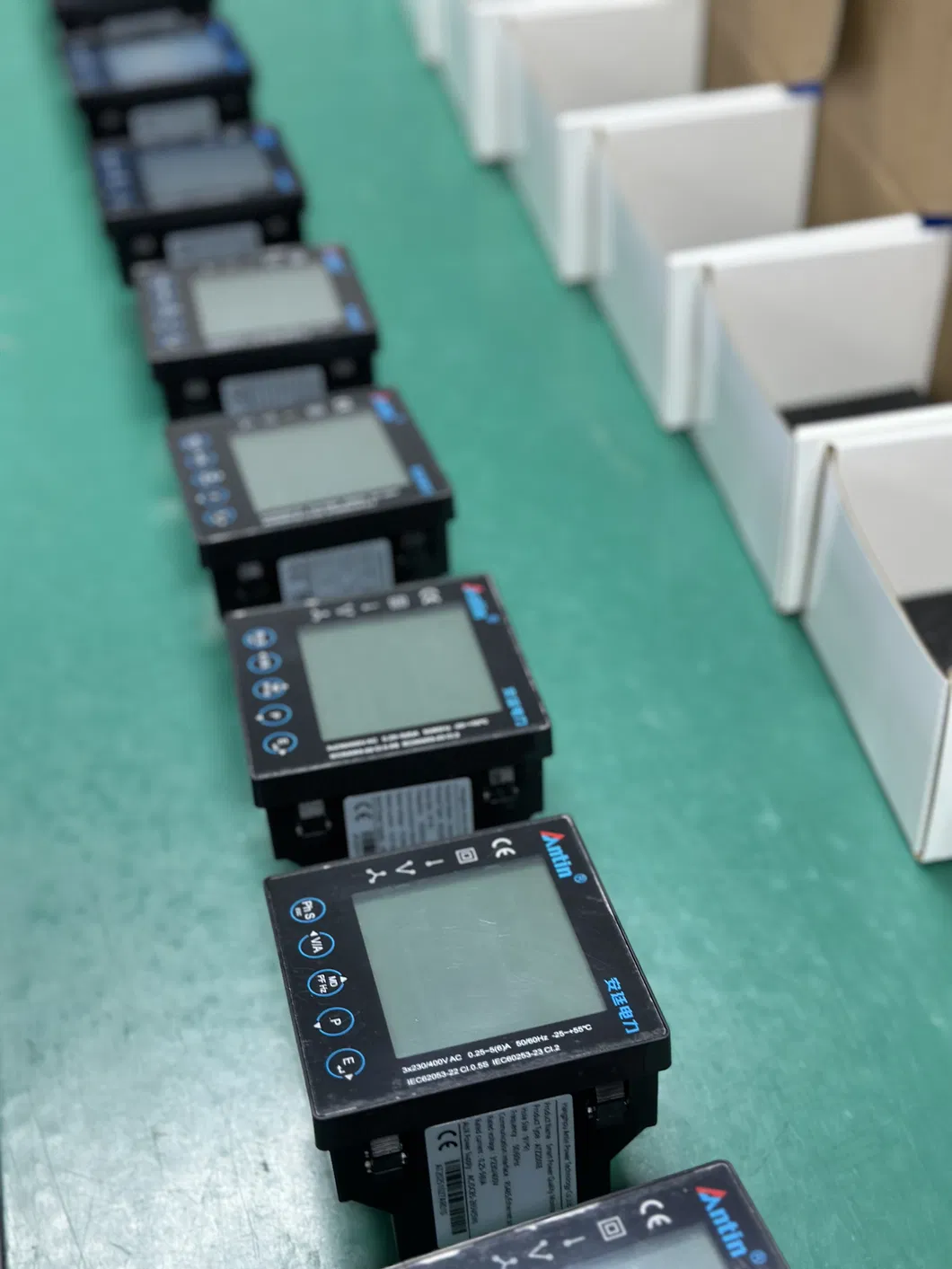

Detailed Photos

❓

Frequently Asked Questions

What is the measurement accuracy of the ATZ2000?

The meter features high precision with Class 0.5S for active power and 0.5% for voltage and current measurements.

What communication protocols does this meter support?

It supports the Modbus RTU protocol via an RS485 bus, with a communication distance of up to 1000 meters.

Is it suitable for different types of power grids?

Yes, it is compatible with three-phase four-wire, three-phase three-wire, and single-phase two-wire electrical systems.

What are the environmental operating limits?

The device operates reliably in temperatures ranging from -25°C to 55°C and humidity levels up to 90% RH (non-condensing).

What is the protection rating for this power meter?

The meter has an IP51 protection class, making it suitable for indoor embedded panel installations.
