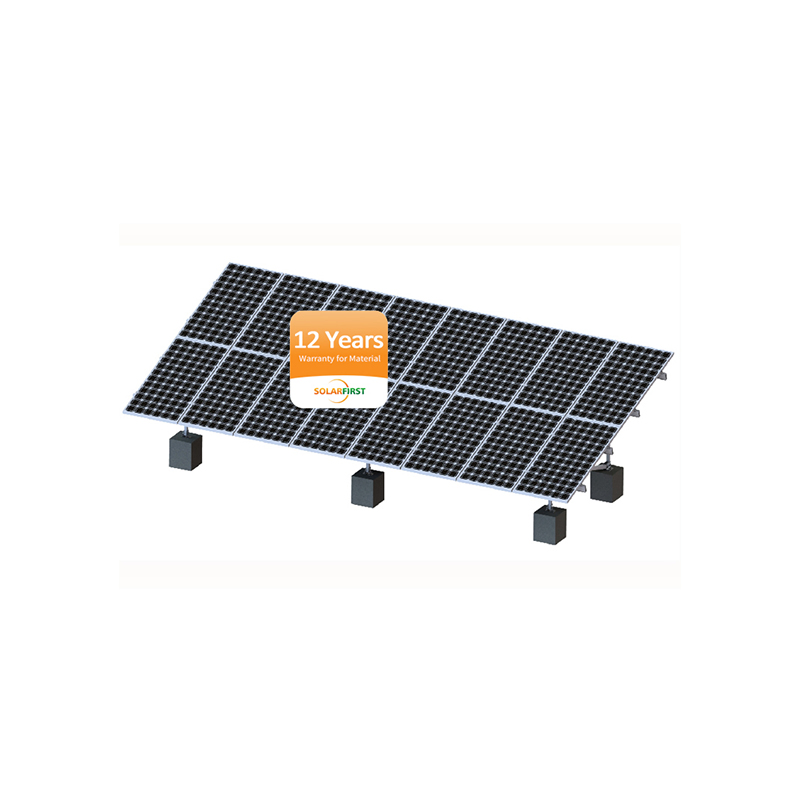

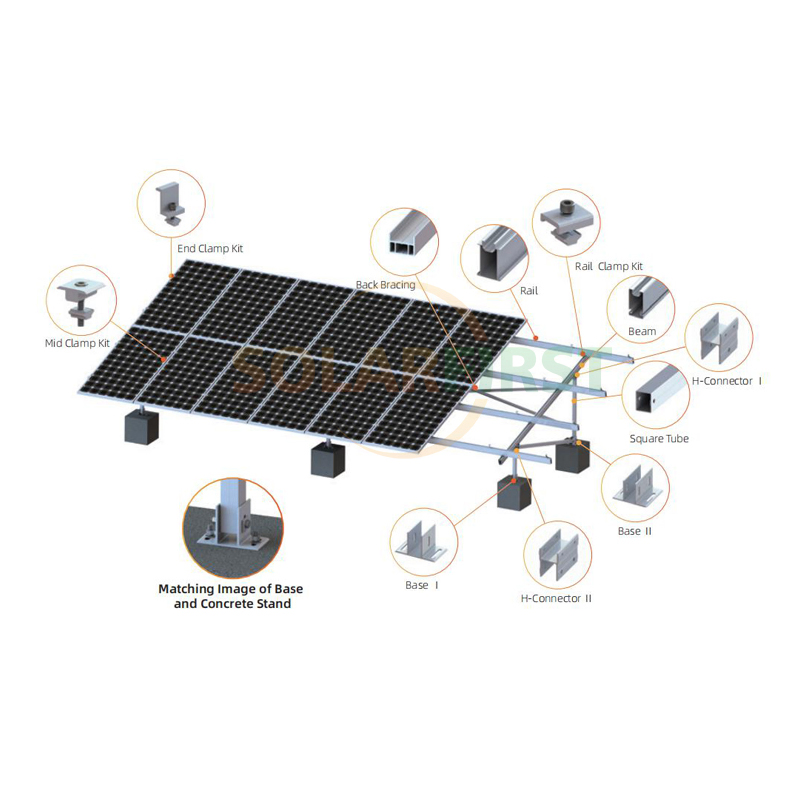

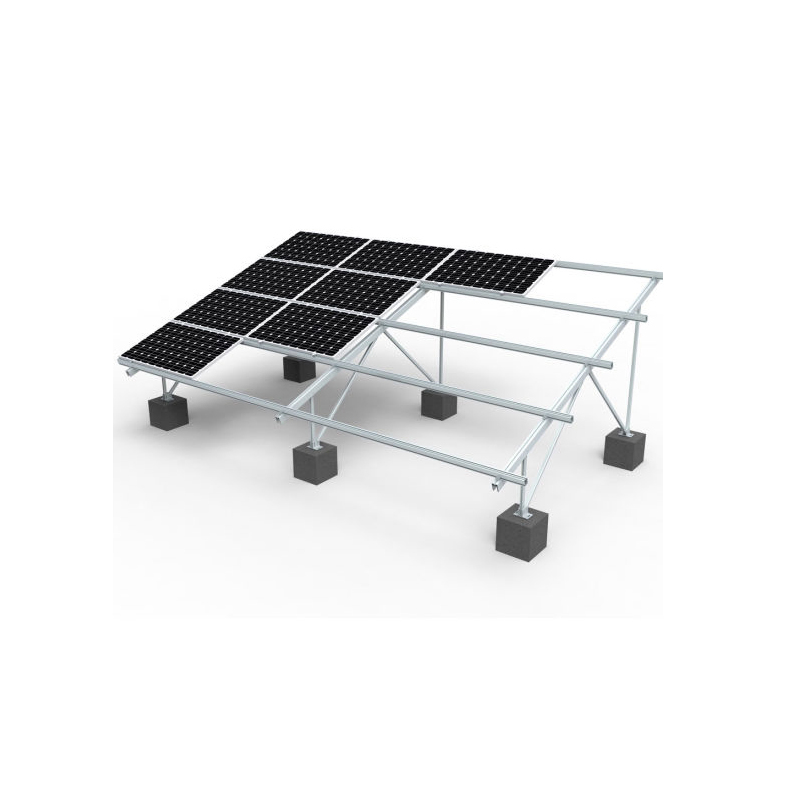

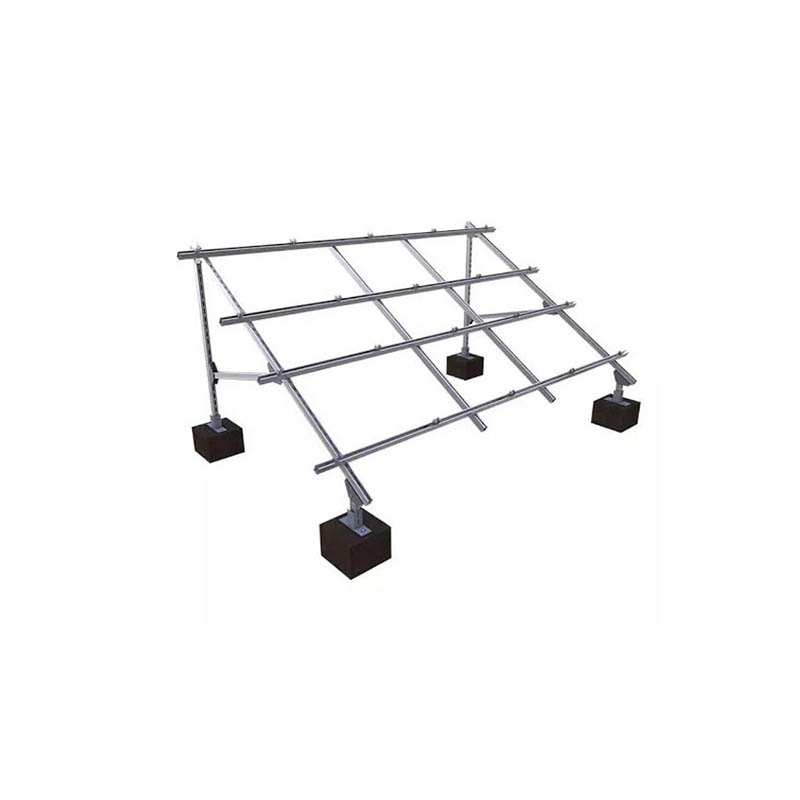

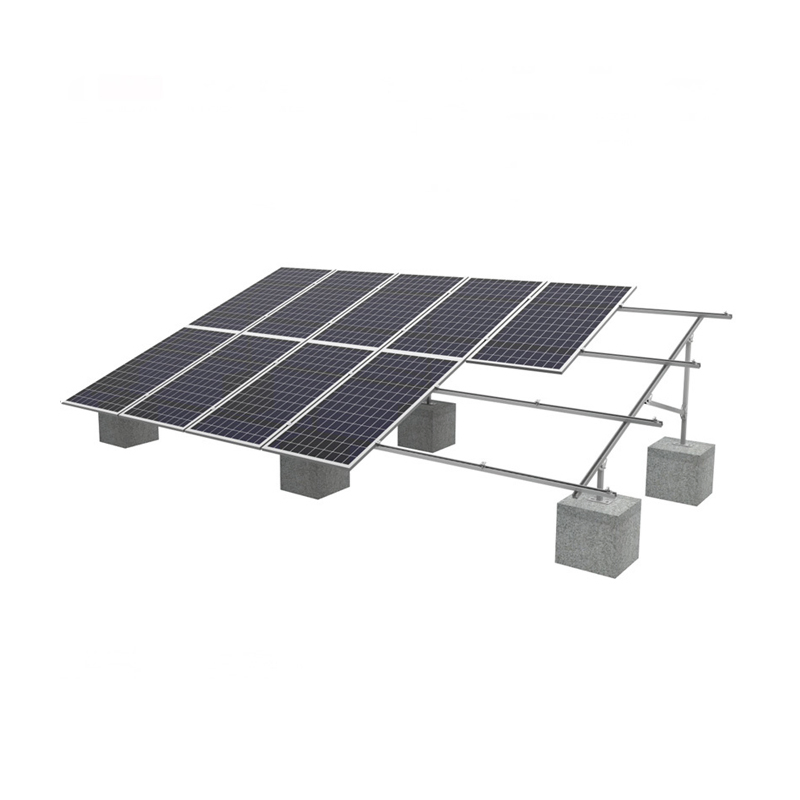

Aluminum PV Mount Solar Ground Mounting Brackets Structure
Aluminum PV Mount Solar Ground Mounting Brackets Structure
Aluminum PV Mount Solar Ground Mounting Brackets Structure
Aluminum PV Mount Solar Ground Mounting Brackets Structure
Aluminum PV Mount Solar Ground Mounting Brackets Structure
1 / 5
Aluminum PV Mount Solar Ground Mounting Brackets Structure
Aluminum PV Mount Solar Ground Mounting Brackets Structure
Aluminum PV Mount Solar Ground Mounting Brackets Structure
Aluminum PV Mount Solar Ground Mounting Brackets Structure
Aluminum PV Mount Solar Ground Mounting Brackets Structure

Aluminum PV Mount Solar Ground Mounting Brackets Structure

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
SF-M24
Certification
ISO, TUV, CE
Application
Commercial
Material
Concrete
Type
Ground Bracket
Product Name
Solar Panel Ground Mounting Structure
Installation Site
Open Field
Color
Silver
Tilt Angle
0-45deg
Feature
Quick Installation
Surface Treatment
Aluminum Anodized
Mounting Type
Ground Solar Mounting
Production Capacity
300,000,000 Set/Sets Per Month
✓

Product Description

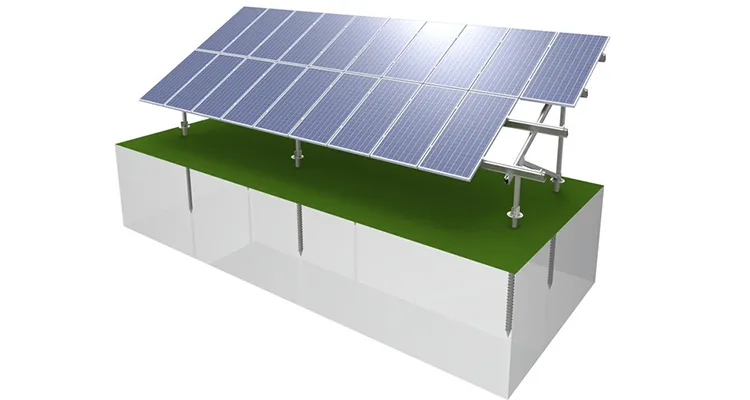

Solar Ground Mounting Structure

Solar Ground Mounting

Ground Screw Mounting Structure is widely applied for large solar farms, with fixed ground screw foundations or adjustable screw piles. The unique oblique spiral design can greatly ensure the stability of withstanding static loads.

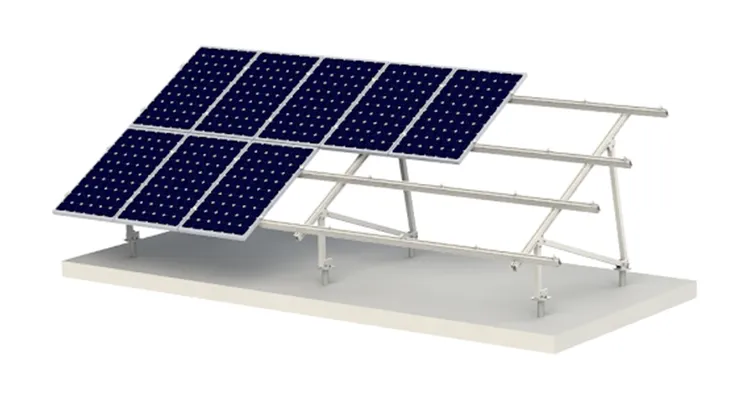

Advantage of Solar Mounting

Key Advantages

  • ● Anti-corrosion and anti-rust.
  • ● Simple and fast installation.
  • ● Significant reduction in labor costs.

Technical Data Overview

  • ● Installation site: Open field ground mount
  • ● Foundation: Ground screw & Concrete
  • ● Mount tilt angle: 0-45 Degree
  • ● Main components: AL6005-T5
  • ● Accessories: Stainless steel fastening
  • ● Duration: More than 25 years

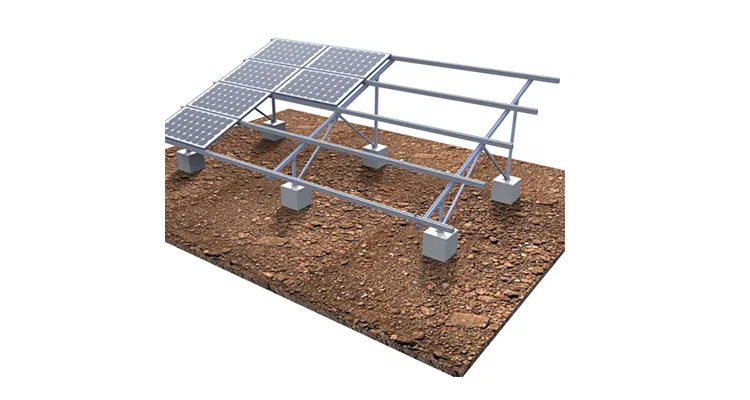

Technical Datas
⚙

Technical Details

Installation SiteOpen field
Wind LoadUp to 60m/s
Snow Load1.4kn/m2
Tile Angle0-45 deg
StandardsAS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
MaterialAnodized AL6005-T5, HDG steel Q235B, SUS304
Warranty10 Years Warranty and 25 Years Service Life

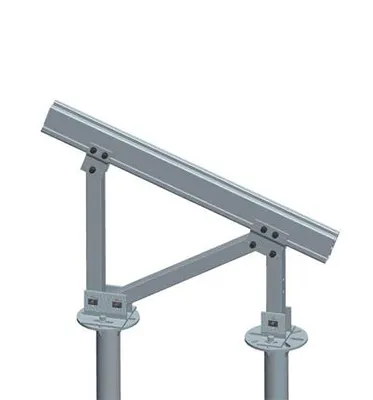

Screw Piles

Screw Piles

• High traction and pressure values
• Installation by mini-digger machine with rotating head support

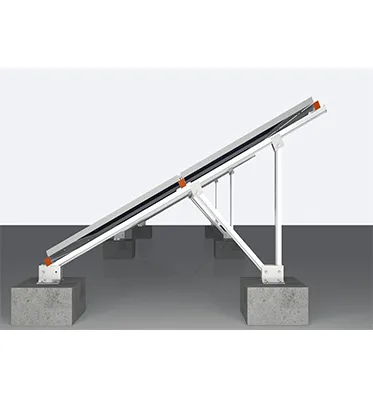

Concrete Base

Concrete Base

• Best suited where ground excavation is not permitted
• The size is adjusted based on static requirements and location.

★

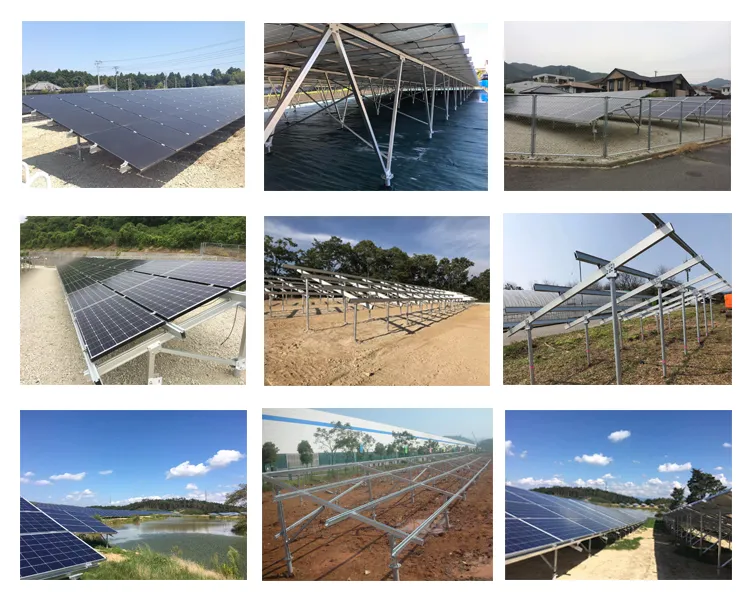

Project Showcase

Solar Project
📦

Packaging & Shipping

Packaging and Shipping
🏛

Exhibition & Certifications

Exhibition
Certifications
?

Frequently Asked Questions

What is the expected service life of this mounting structure?
The solar ground mounting structure is designed for a service life of more than 25 years, utilizing high-quality AL6005-T5 aluminum and stainless steel components.
Can this system withstand extreme weather conditions?
Yes, it is engineered to withstand wind loads up to 60m/s and snow loads up to 1.4kn/m2, complying with international standards like AS/NZS1170 and IBC 2006.
What types of foundations can be used with this structure?
The system is versatile and supports both ground screw foundations for fast installation and concrete bases for sites where excavation is restricted.
Is the tilt angle adjustable?
The structure supports a tilt angle range of 0 to 45 degrees, allowing for optimization based on the specific geographical location of the solar farm.
What is the warranty period for the mounting brackets?
We provide a 10-year warranty on the mounting structure, ensuring long-term reliability and performance for your commercial solar projects.
Is the installation process complicated?
No, the system is designed for quick installation with pre-assembled components, which significantly reduces labor time and costs on-site.
