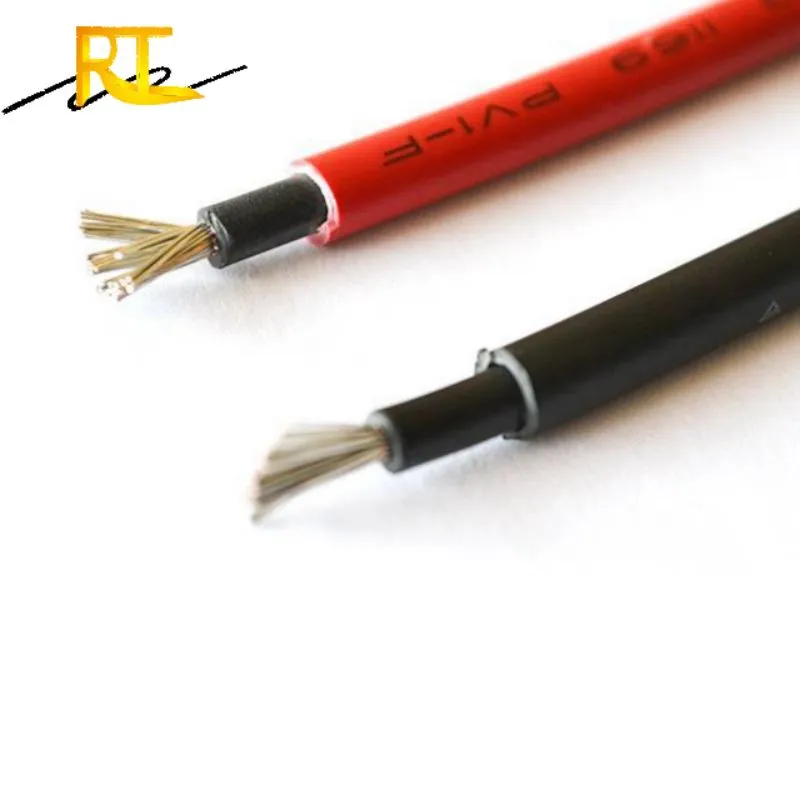

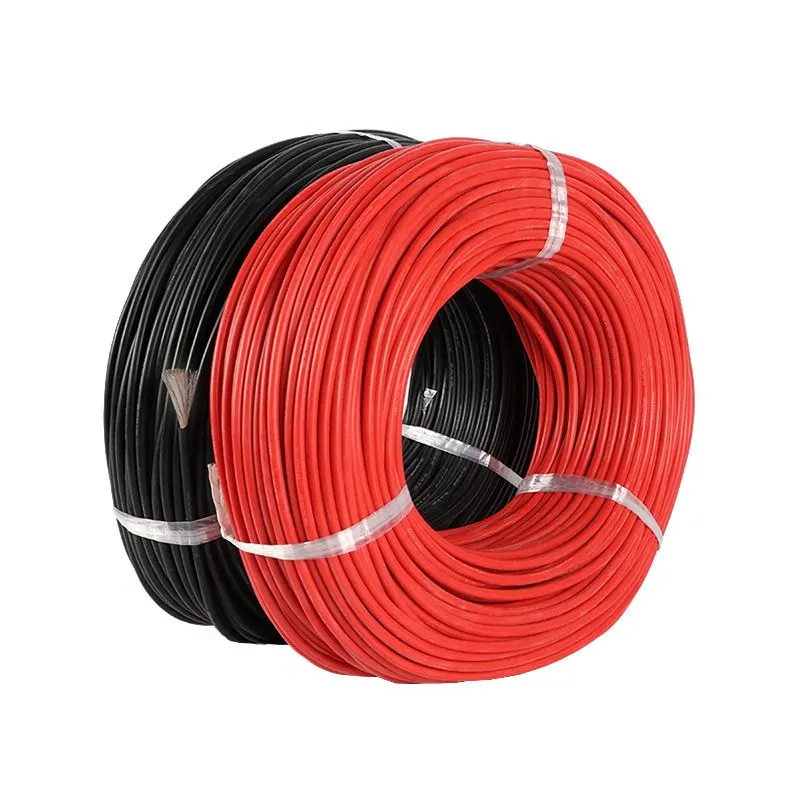

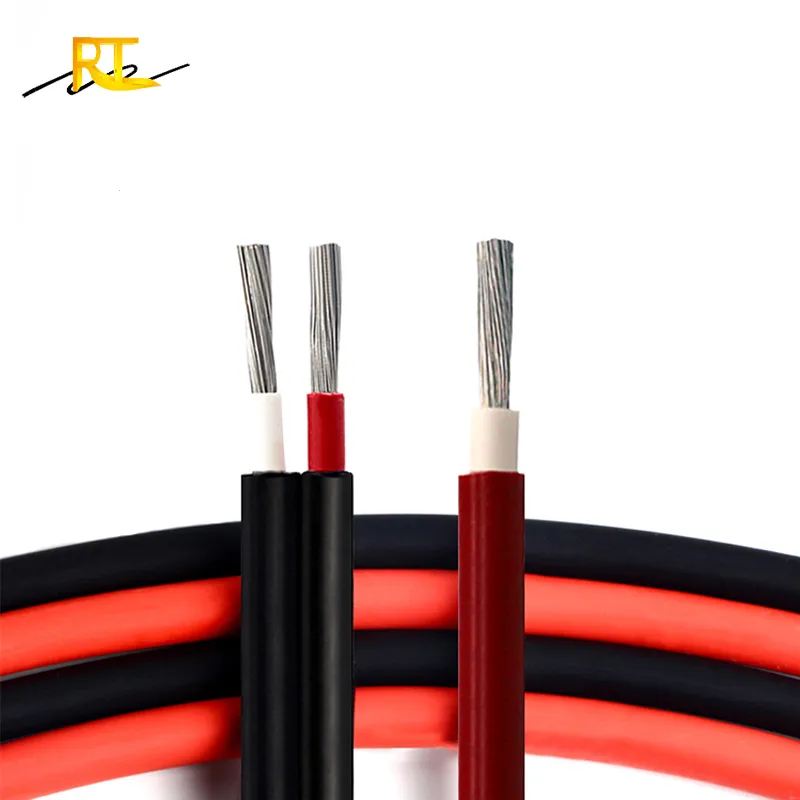

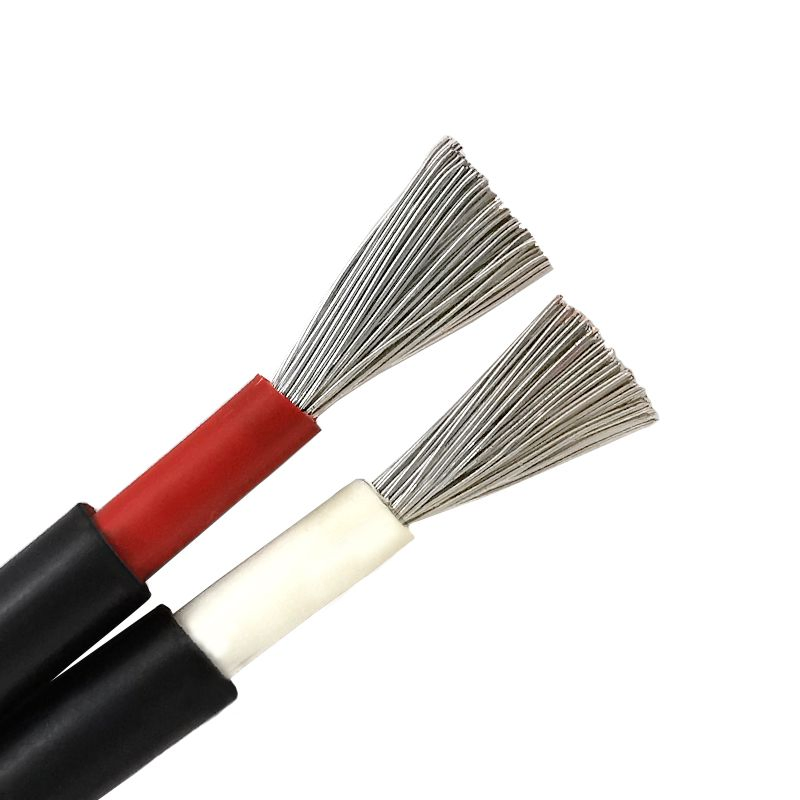

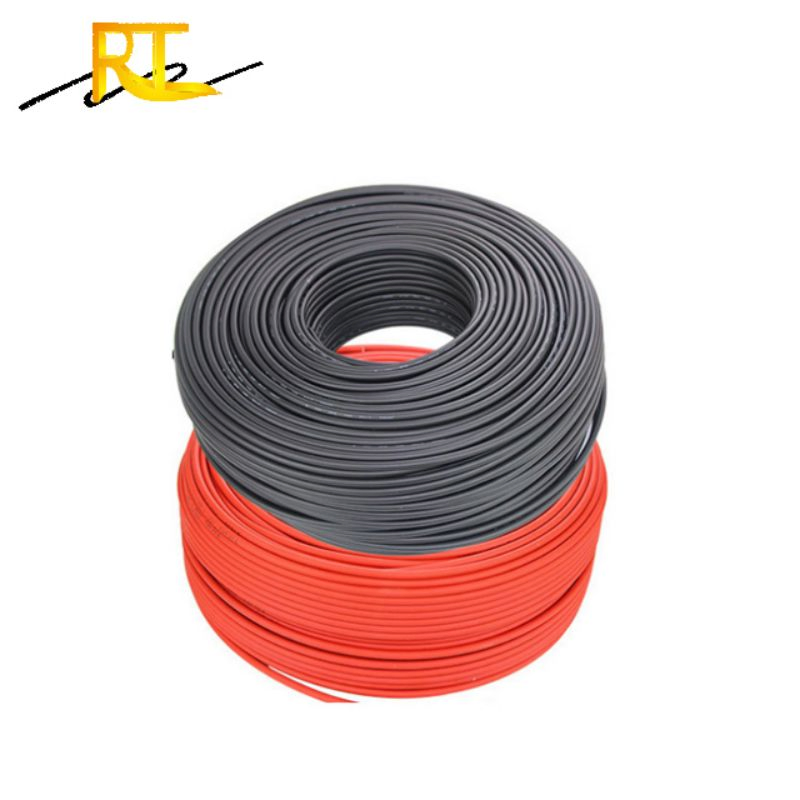

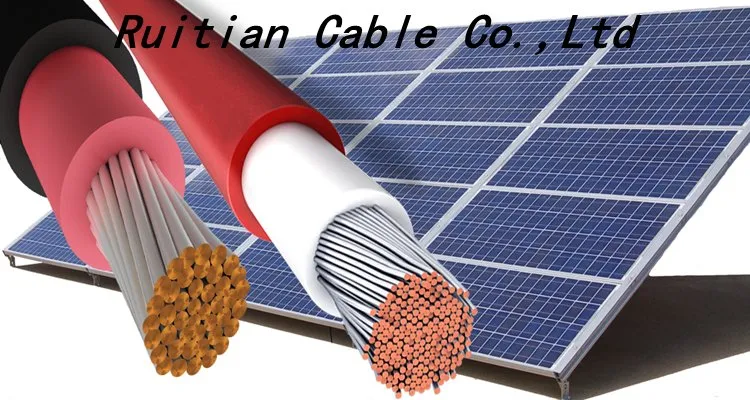

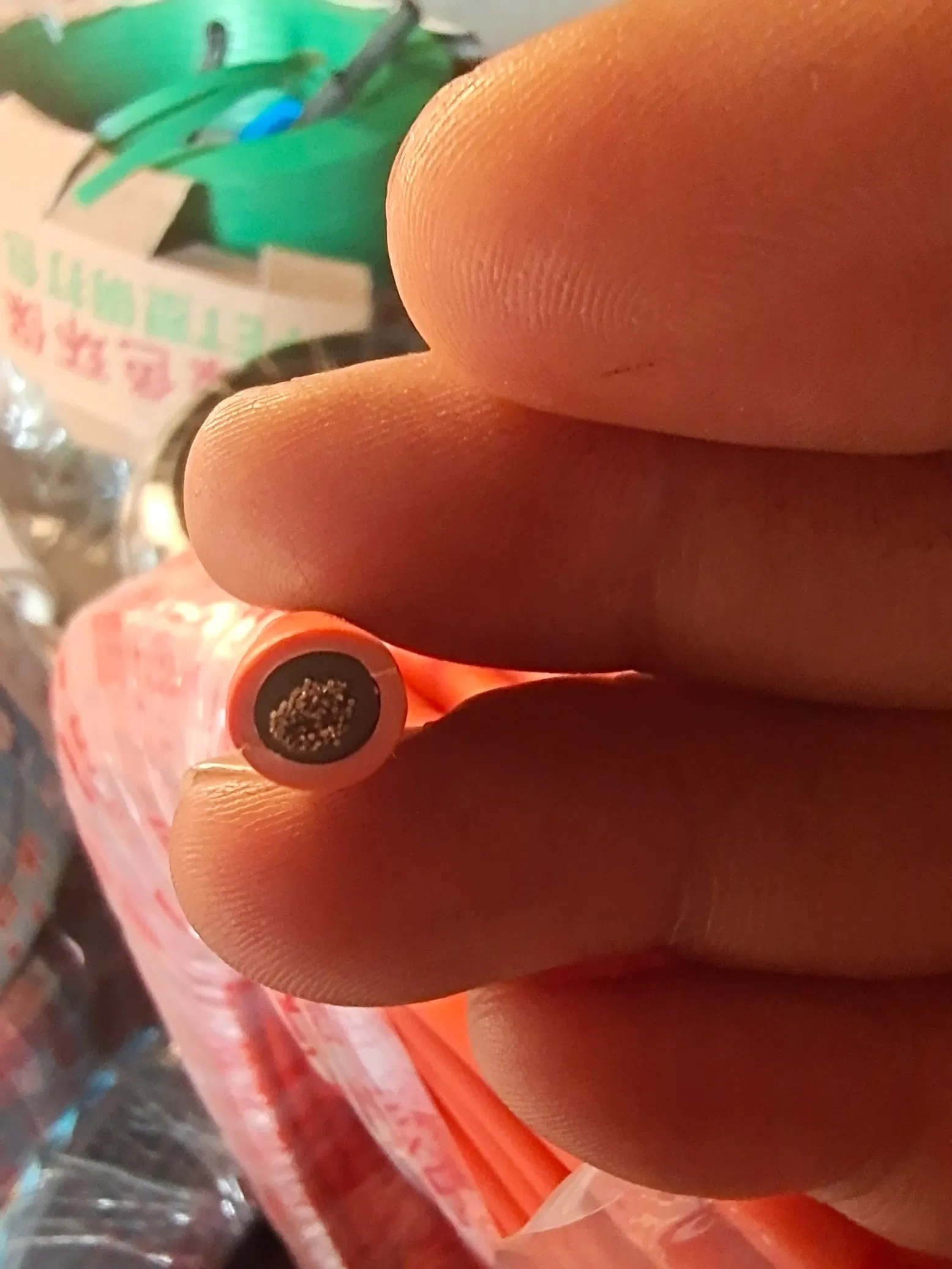

PV solar cable and wire is rated 600V, 1000V, 2000V, suitable for AC and DC systems. It is rated for temperatures of 90, 105, 125 or 150°C dry and 90°C wet. This single conductor, insulated and non-integrally jacketed, sunlight-resistant photovoltaic wire is ideal for interconnection wiring of grounded and ungrounded photovoltaic power systems.
| Product Specification | Details |
|---|---|
| Production Specification | 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2 |
| Conductor Material | Copper / Tinned Copper |
| Insulation Material | XLPE (XLPO) |
| Color | Red / Black / White |
| Temperature Range | -40ºC ~ 90ºC |
| Rated Voltage | AC 0.6/1KV, DC 1.0/1.5KV |
| Type | Spec (mm²) | Conductor Construction | Outer Dia. (mm) | Max Resistance (Ω/kM) | Current Capacity |
|---|---|---|---|---|---|
| Single Core | 1x4 | 56/0.3 | 6.1 | 4.75 | 50 |
| Single Core | 1x6 | 84/0.3 | 7.2 | 3.39 | 70 |
| Single Core | 1x10 | 142/0.3 | 9 | 1.95 | 98 |

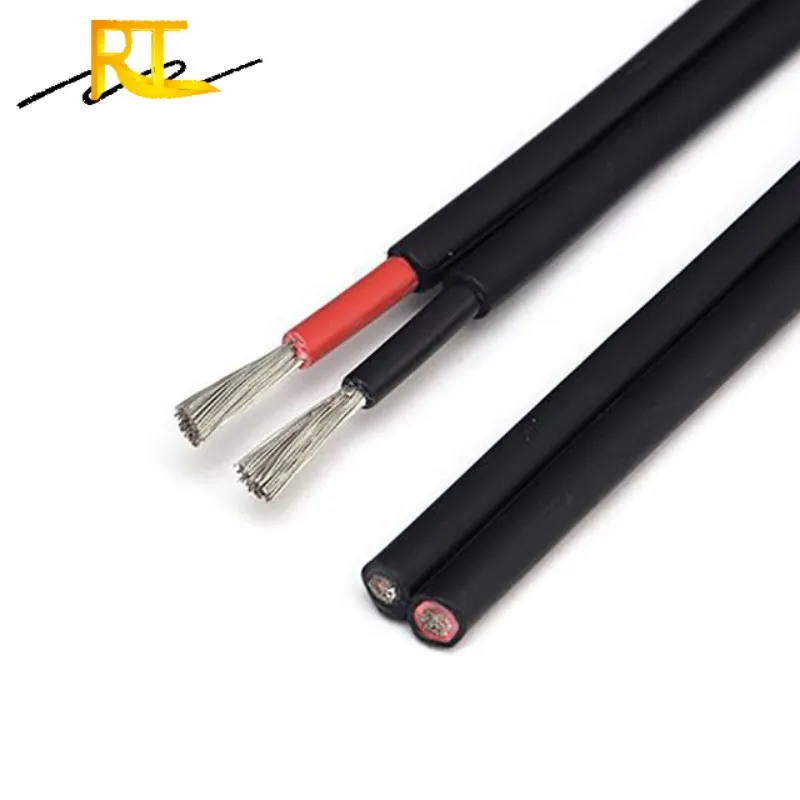

| Twin Core | 2x4 | 56/0.3 | 12 | 4.75 | 50 |
| Twin Core | 2x6 | 84/0.3 | 13.5 | 3.39 | 70 |

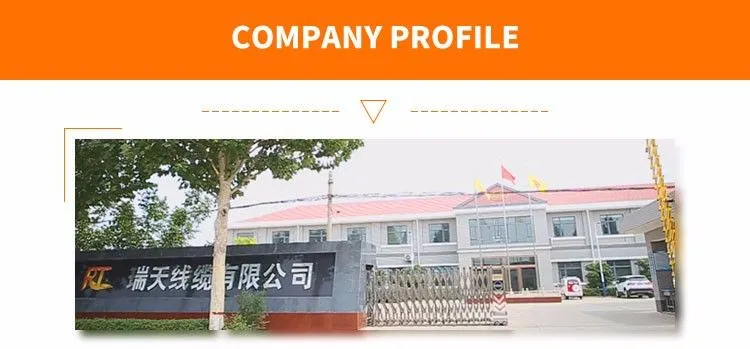

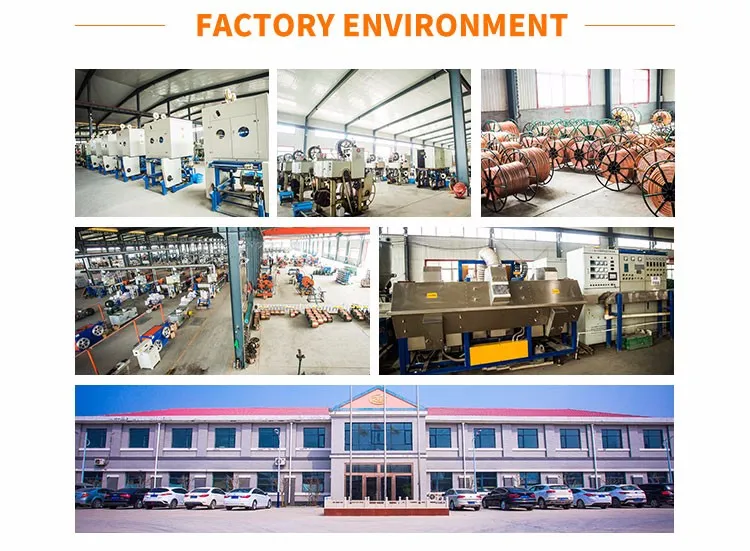

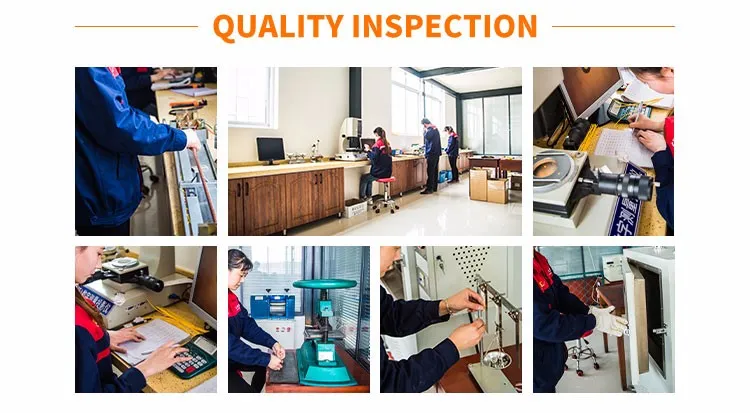

Established in 2008, the professional manufacturer is engaged in the research, development, and production of power cables, solar cables, and control wires. Equipped with advanced testing, insulation, and cabling machinery, the facility ensures strict quality control and full customer satisfaction.
