| Model NO. | pv1-f/H1Z2Z2-K | Sheath Material | Crosslinking |
|---|---|---|---|
| Insulating Material | XLPE | Conductor Type | Stranded |
| Certification | TUV | Wire Core Material | Tinned Wire |
| Rated Voltage | DC 1500V | Temperature Rating | -40 ~ +90 |
| Production Capacity | 100000m/Day | Origin | Hebei |

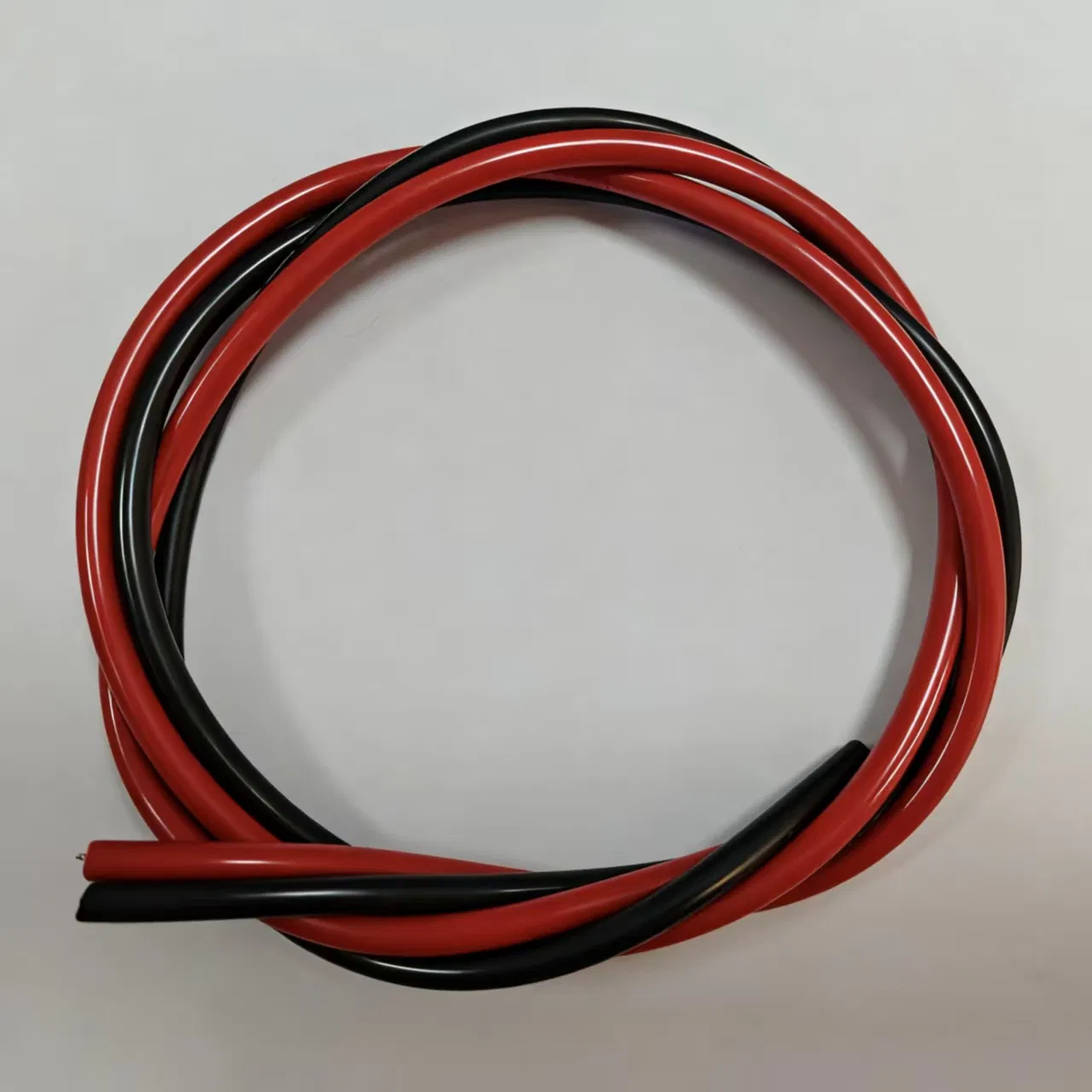

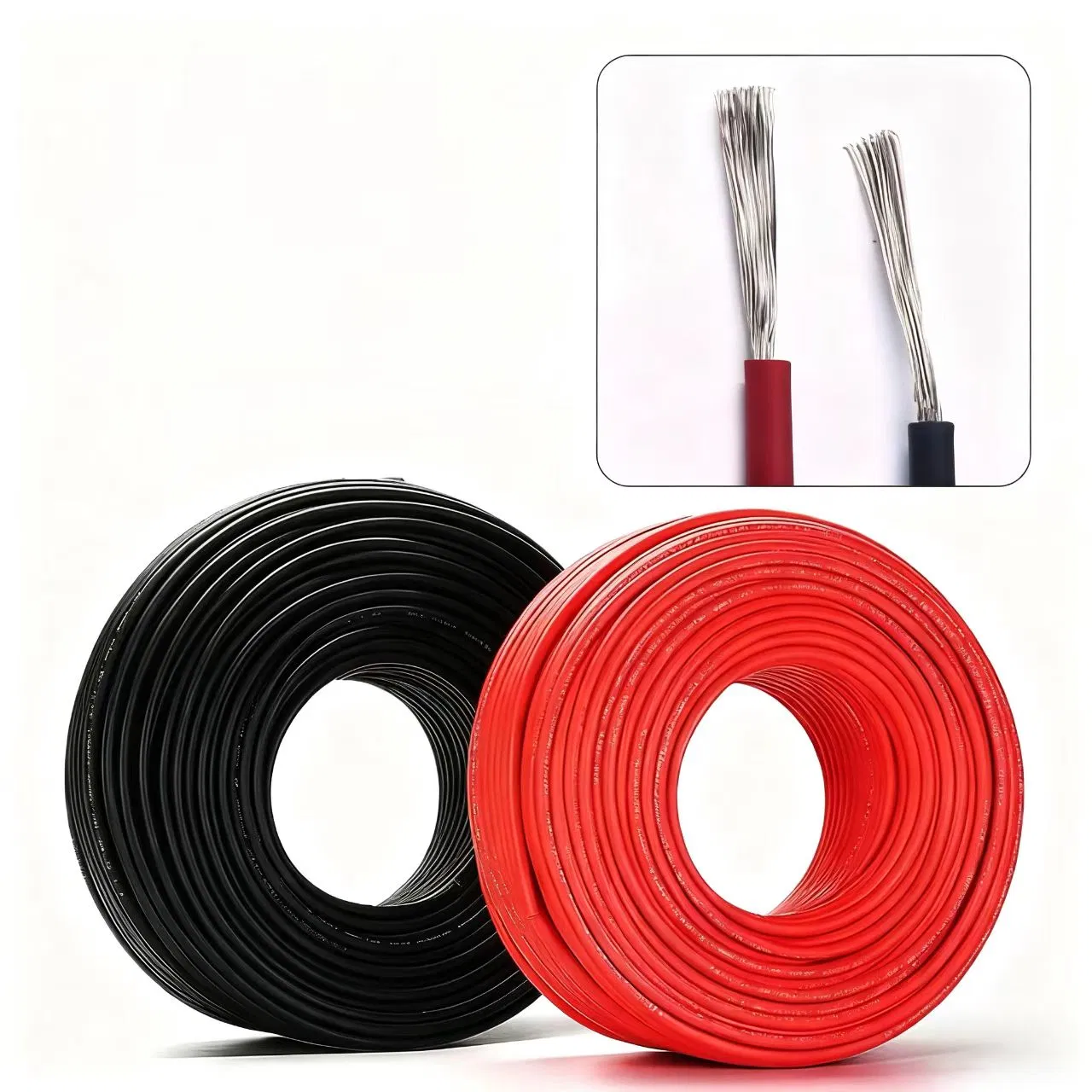

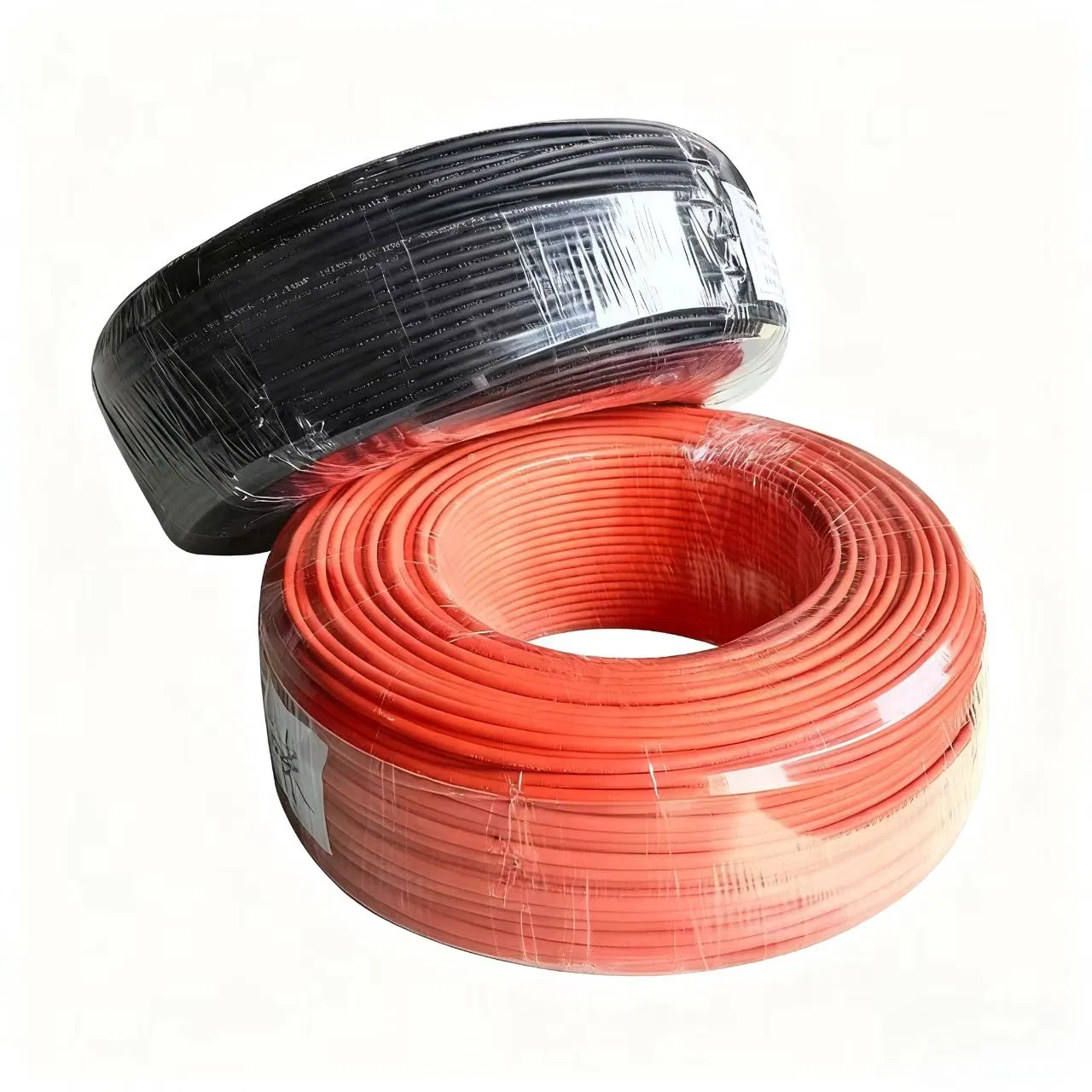

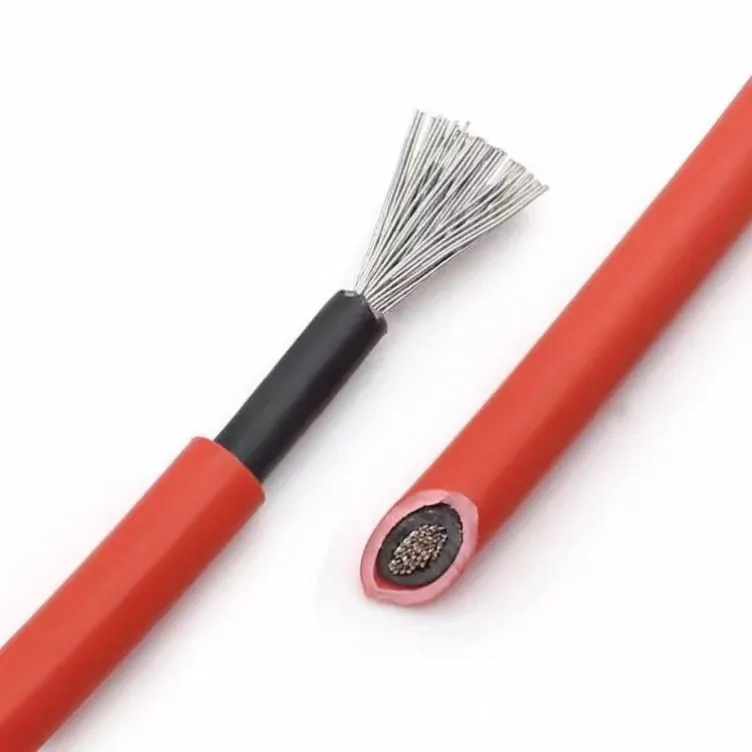

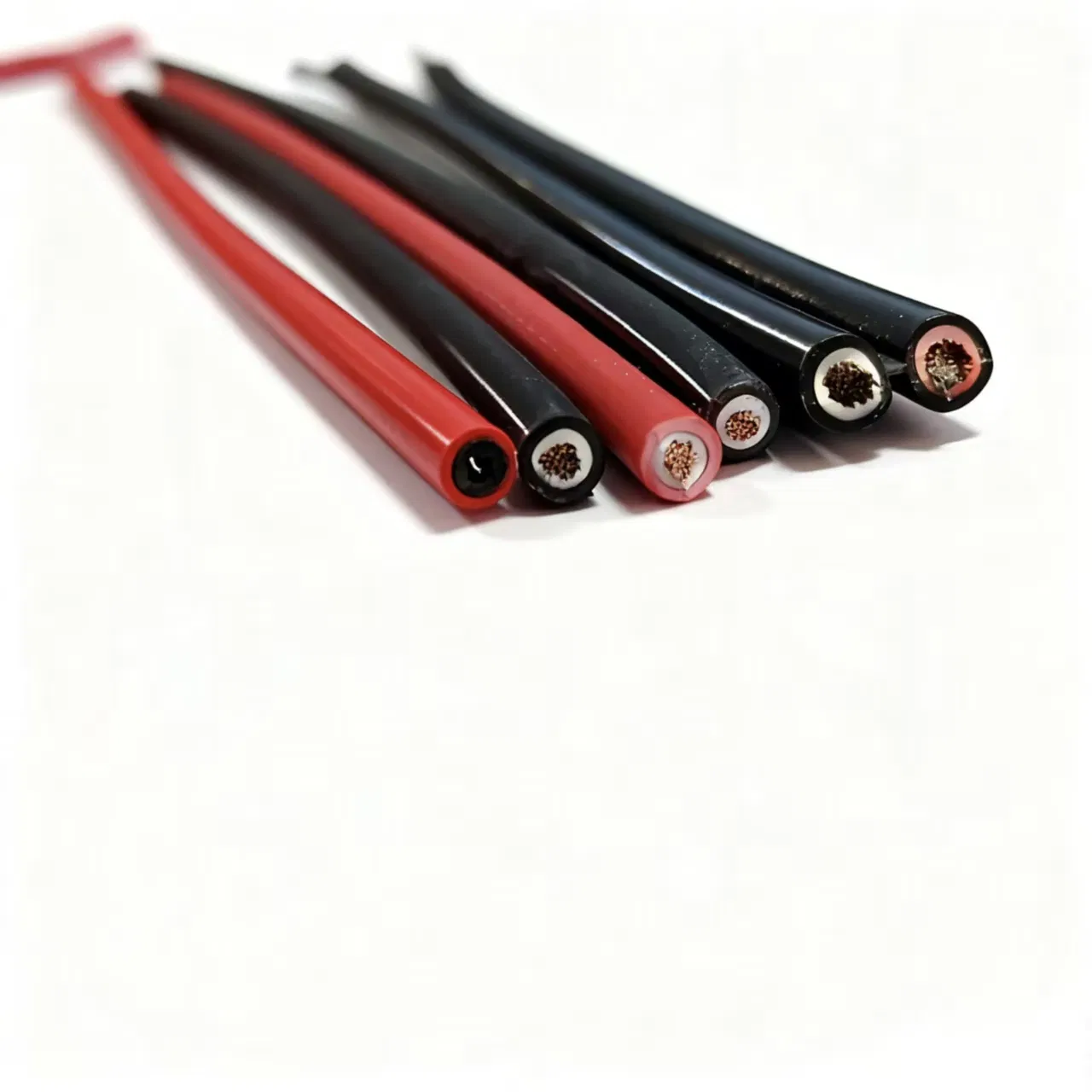

Our solar (PV) cables offer highly customizable solutions to meet your specific project needs. Designed for Photovoltaic systems, these cables ensure efficient power transmission and long-term durability.

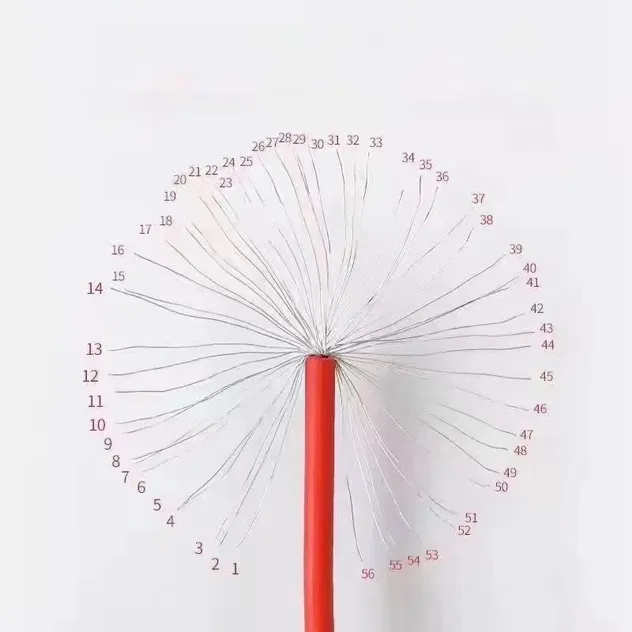

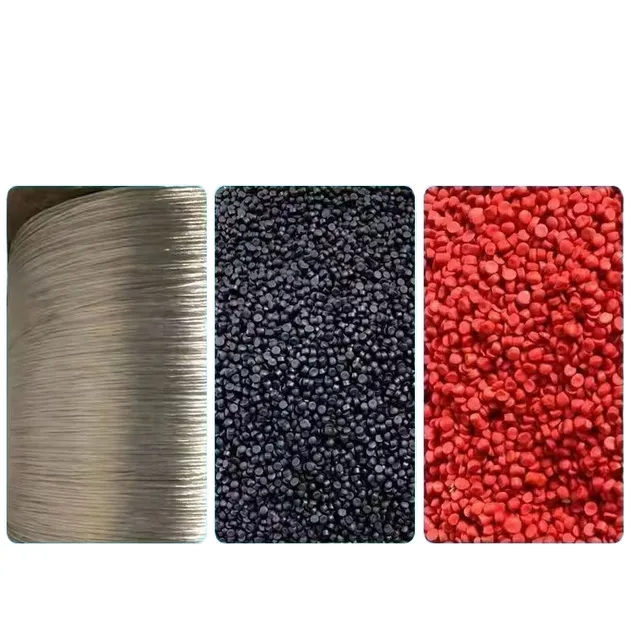

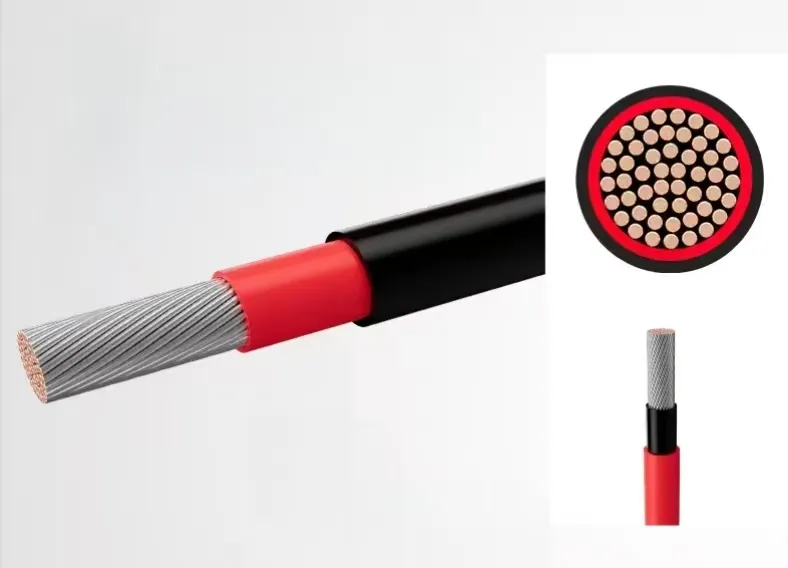

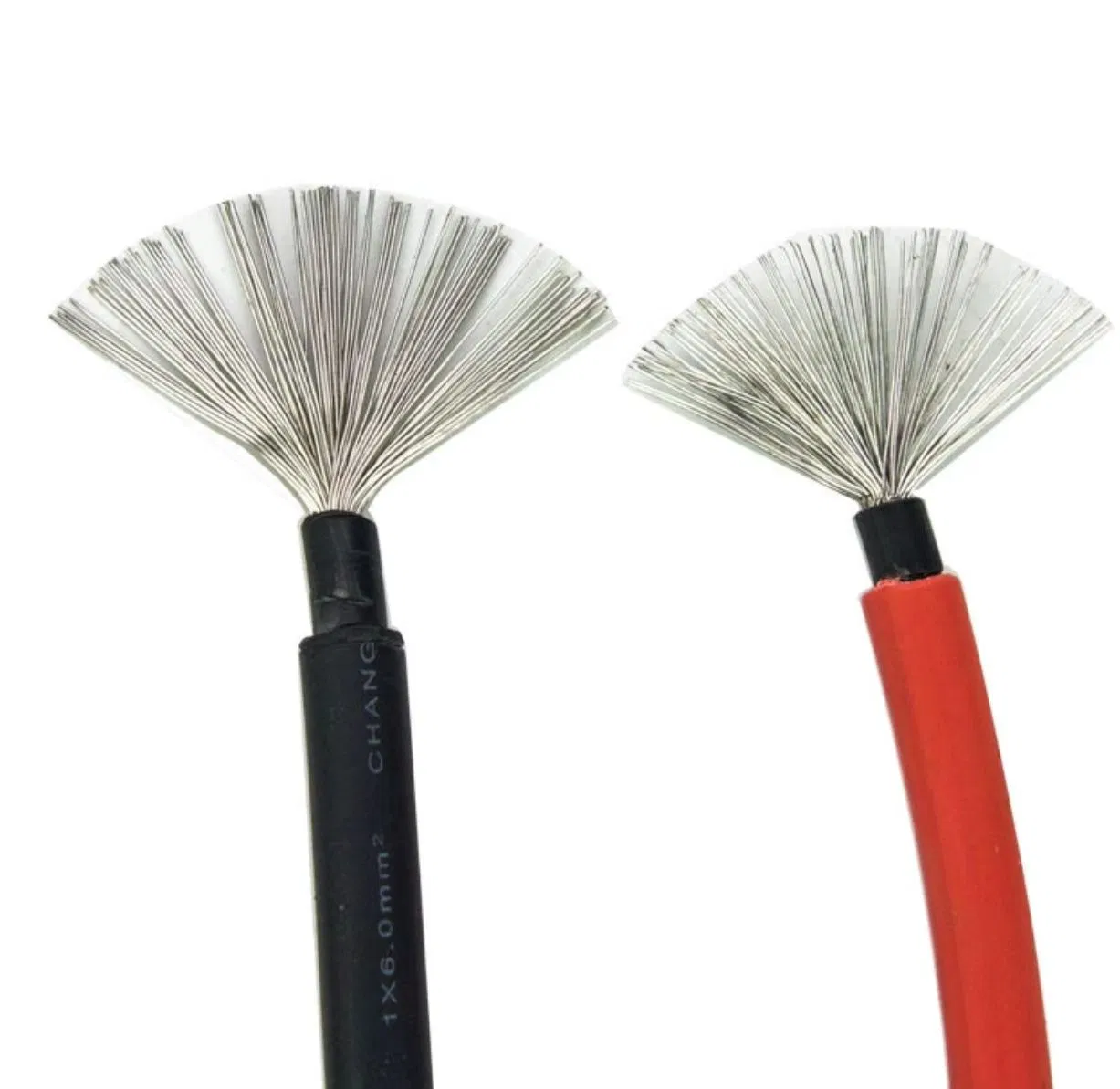

| Conductor | Tinned copper (anti-corrosion), bare copper, or aluminum alloy. High-purity tin-plated oxygen-free copper with 56 strands for stable conductivity. |
|---|---|
| Insulation & Sheath | Weather-resistant XLPE, UV-stabilized PVC, or high-performance PVDF. Irradiation cross-linked low-smoke, halogen-free, flame-retardant polyolefin. |
| Performance | DC 1500V compatible. Temperature range: -40℃ to +125℃. Superior weather resistance and strong anti-aging ability. |

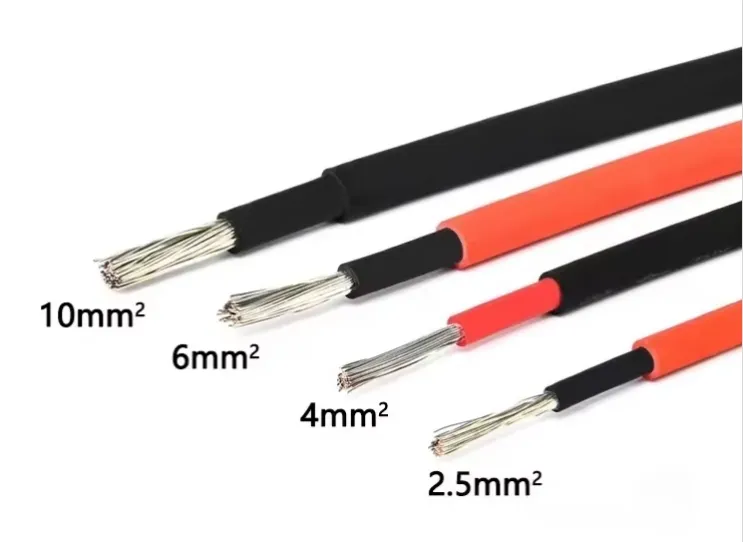

| Model Number | Cross-section (mm²) | Conductor Structure (mm) | Cable Diameter (mm) | Resistance 20℃ (Ω/km) |
|---|---|---|---|---|
| PV1-F | 1.5 | 30/0.2 | 5.2 | 12.2 |
| PV1-F | 2.5 | 50/0.2 | 5.6 | 7.56 |
| PV1-F | 4 | 56/0.3 | 6.4 | 4.7 |
| PV1-F | 6 | 84/0.3 | 7 | 3.11 |
| PV1-F | 10 | 142/0.41 | 8.2 | 1.84 |
| PV1-F | 16 | 228/0.41 | 9.7 | 1.16 |
| PV1-F | 25 | 361/0.41 | 11.3 | 0.734 |

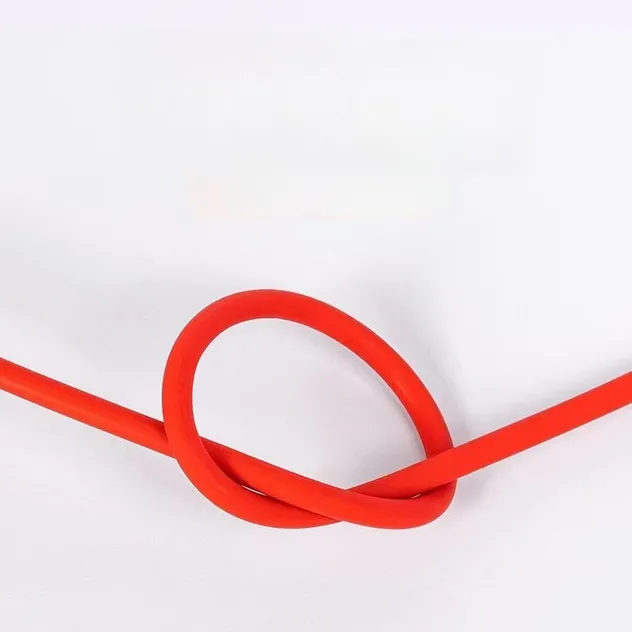

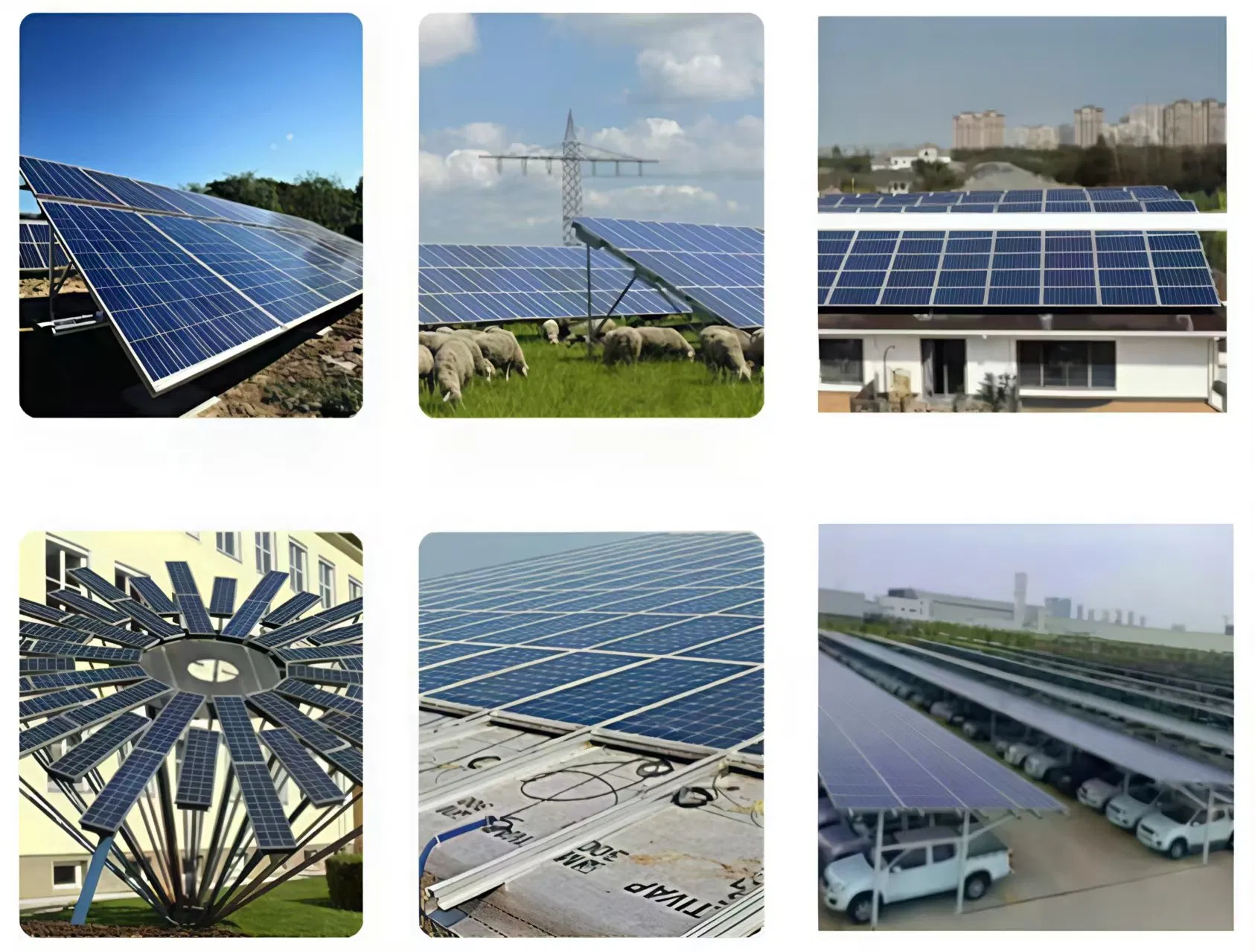

Widely used in indoor and outdoor solar installations, power plants, and residential photovoltaic systems. Engineered to withstand extreme environmental conditions while maintaining high flexibility.

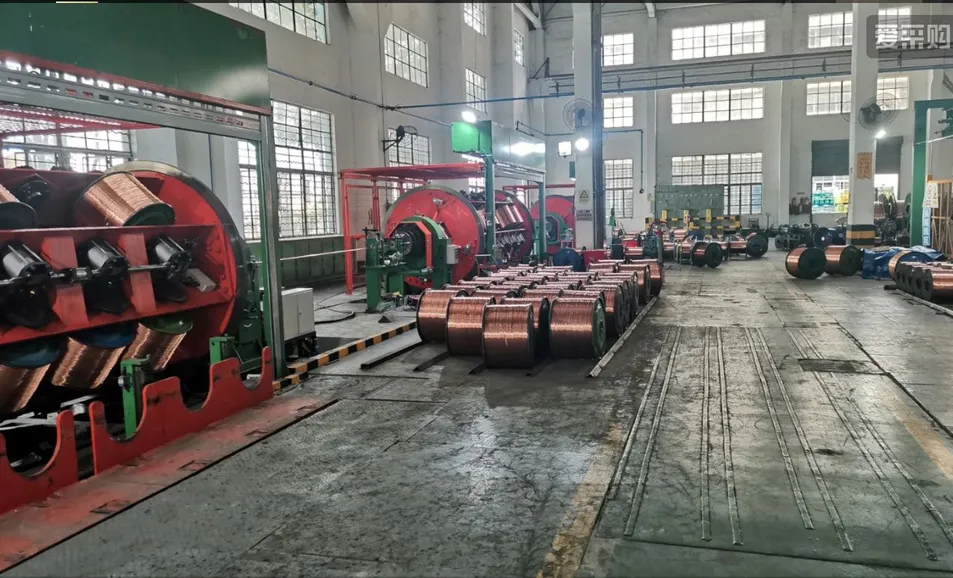

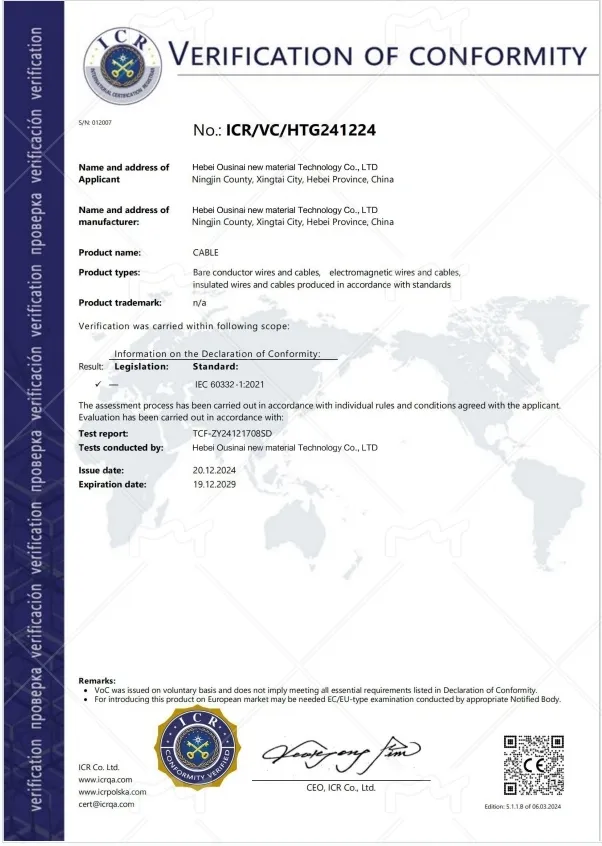

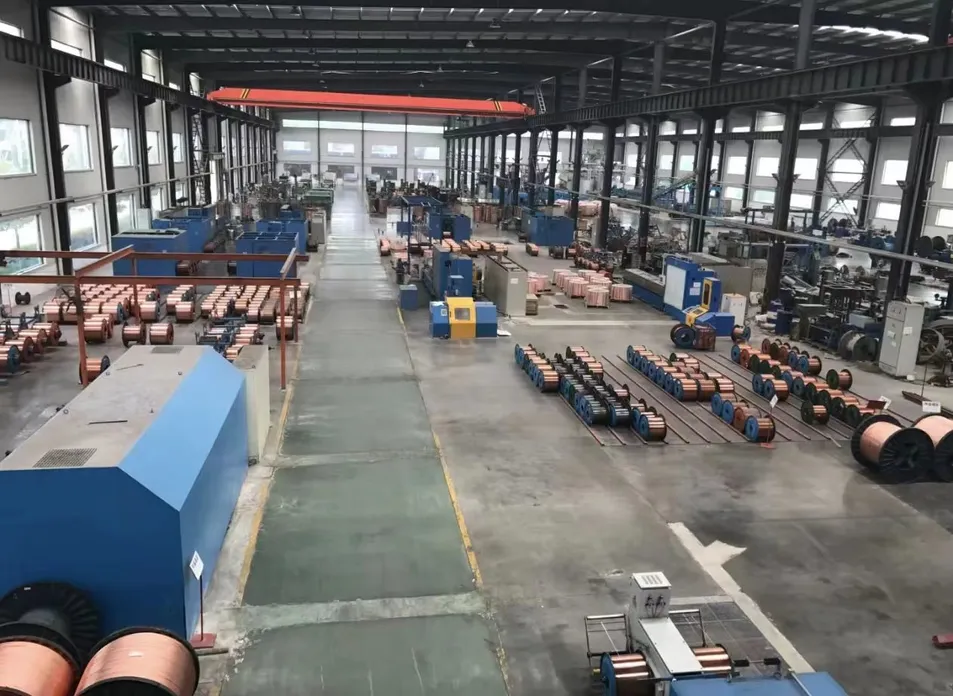

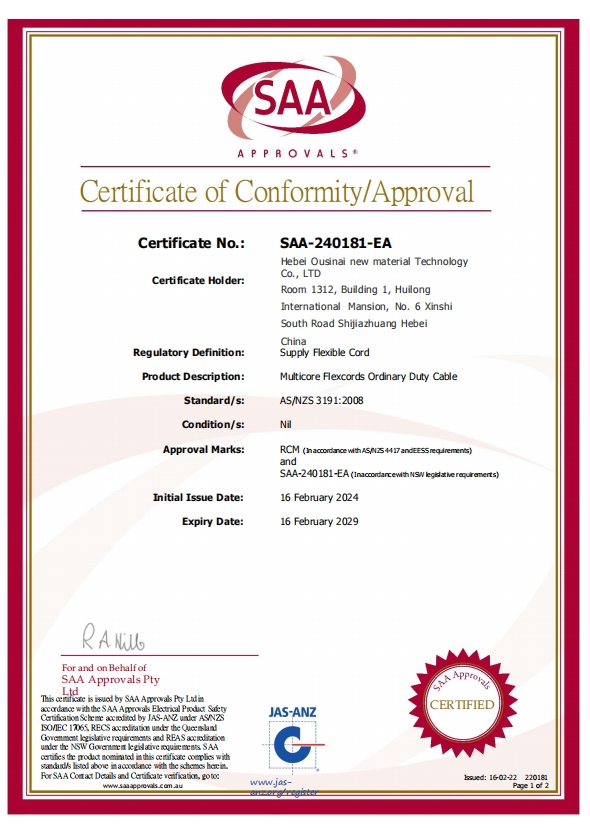

Our production follows strict ISO9001 quality systems. Products are certified by CE, SAA, ROHS, and UL to meet international safety standards.
