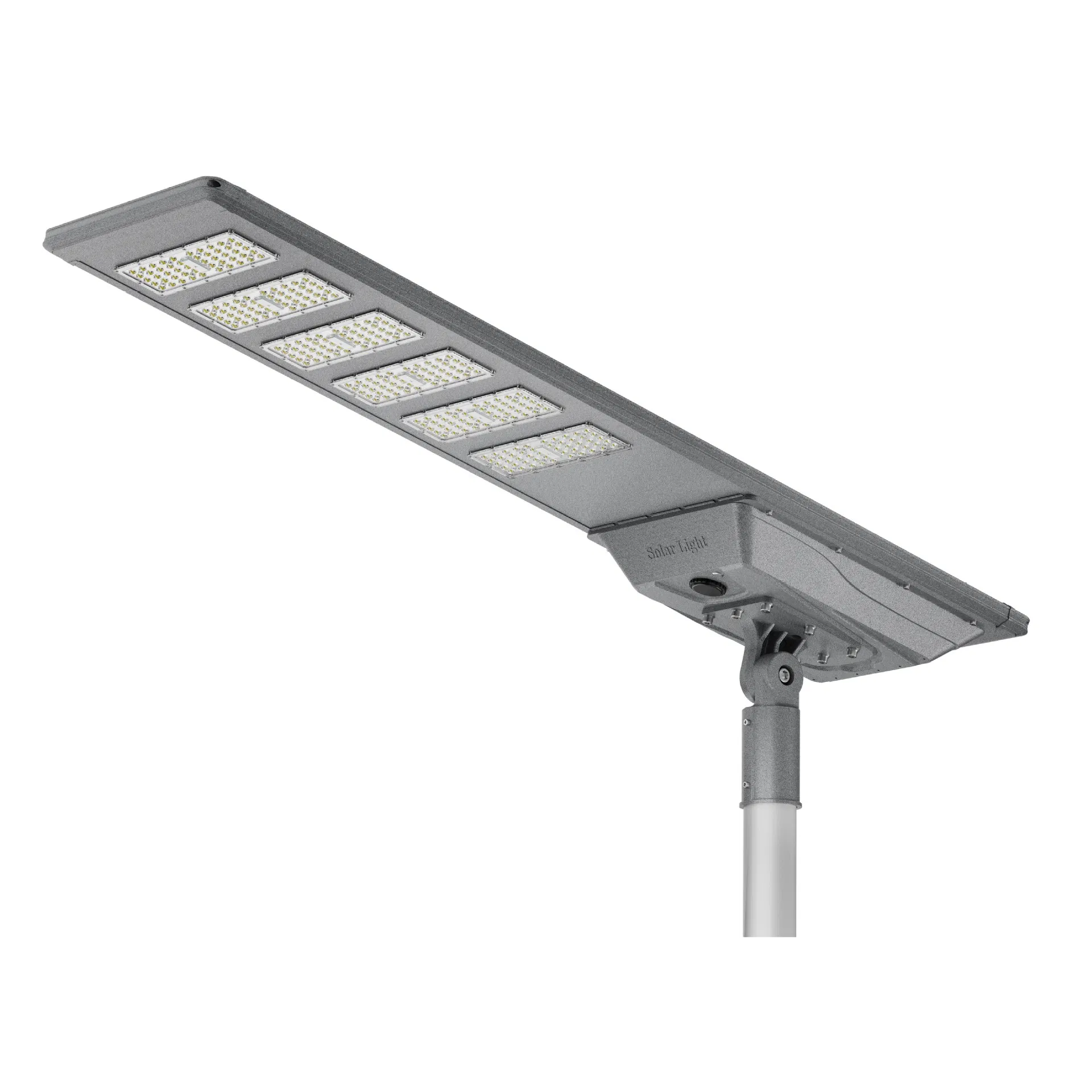

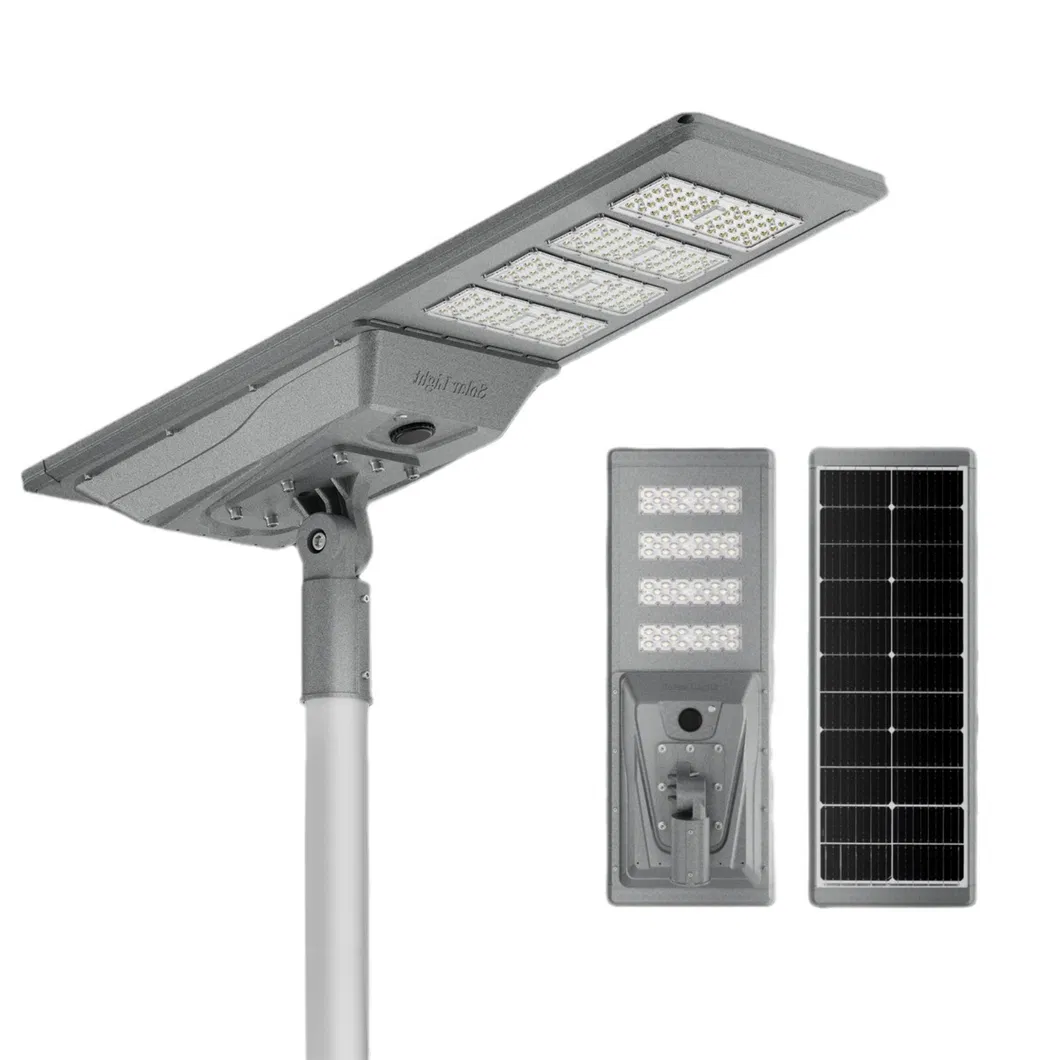

Solar street lights model M23 was made according to ISO 9001 standard, with 205Lm/W high luminous efficacy, especially for PUBLIC lighting use. Designed by integrated fixture, with PV panel, Lithium battery, charge controller, led components all together, which make the installation easily.

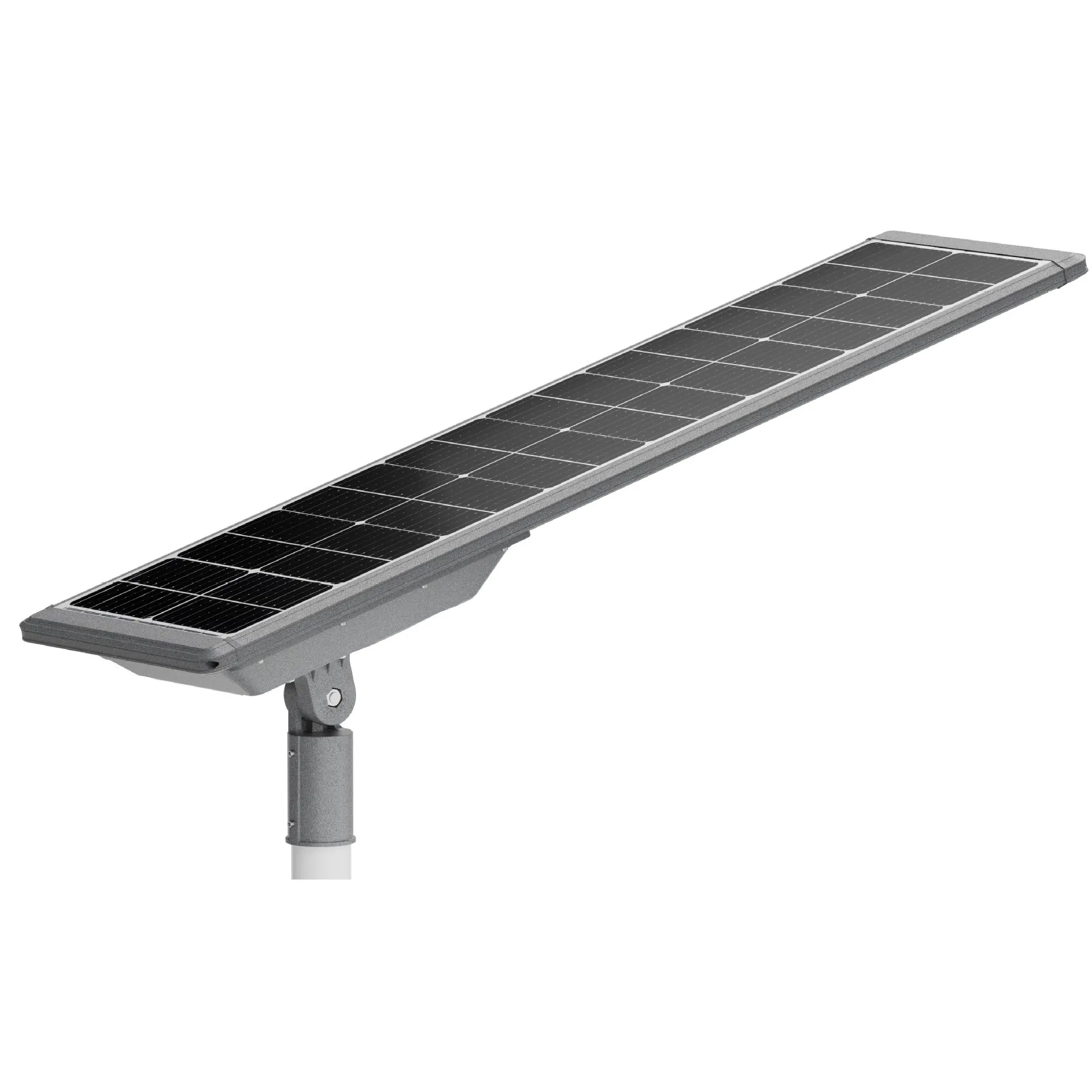

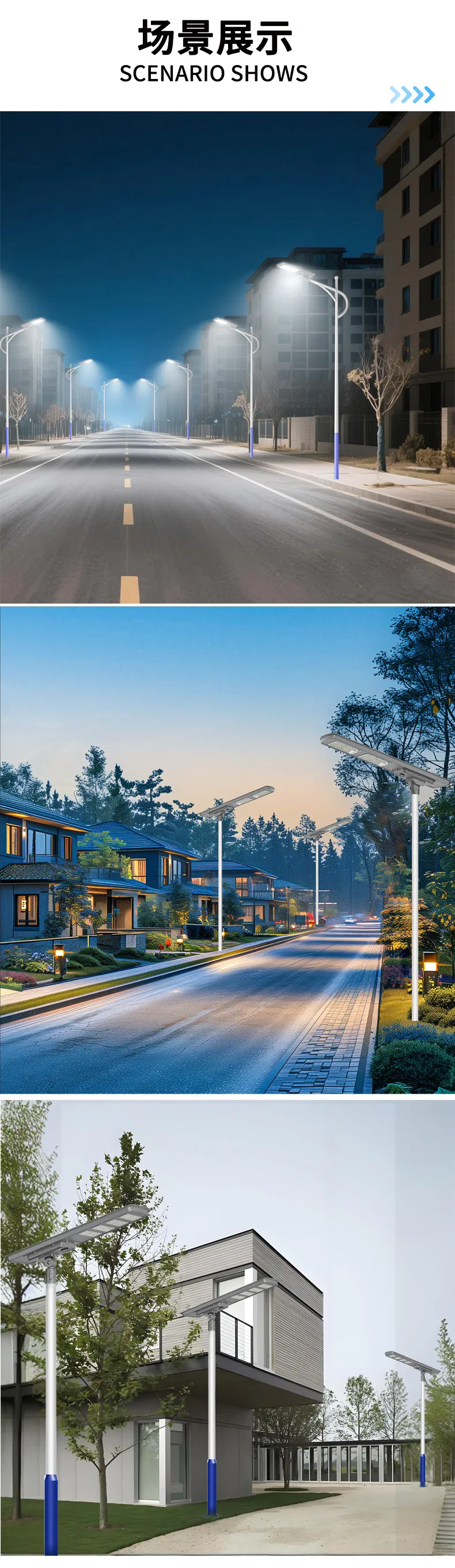

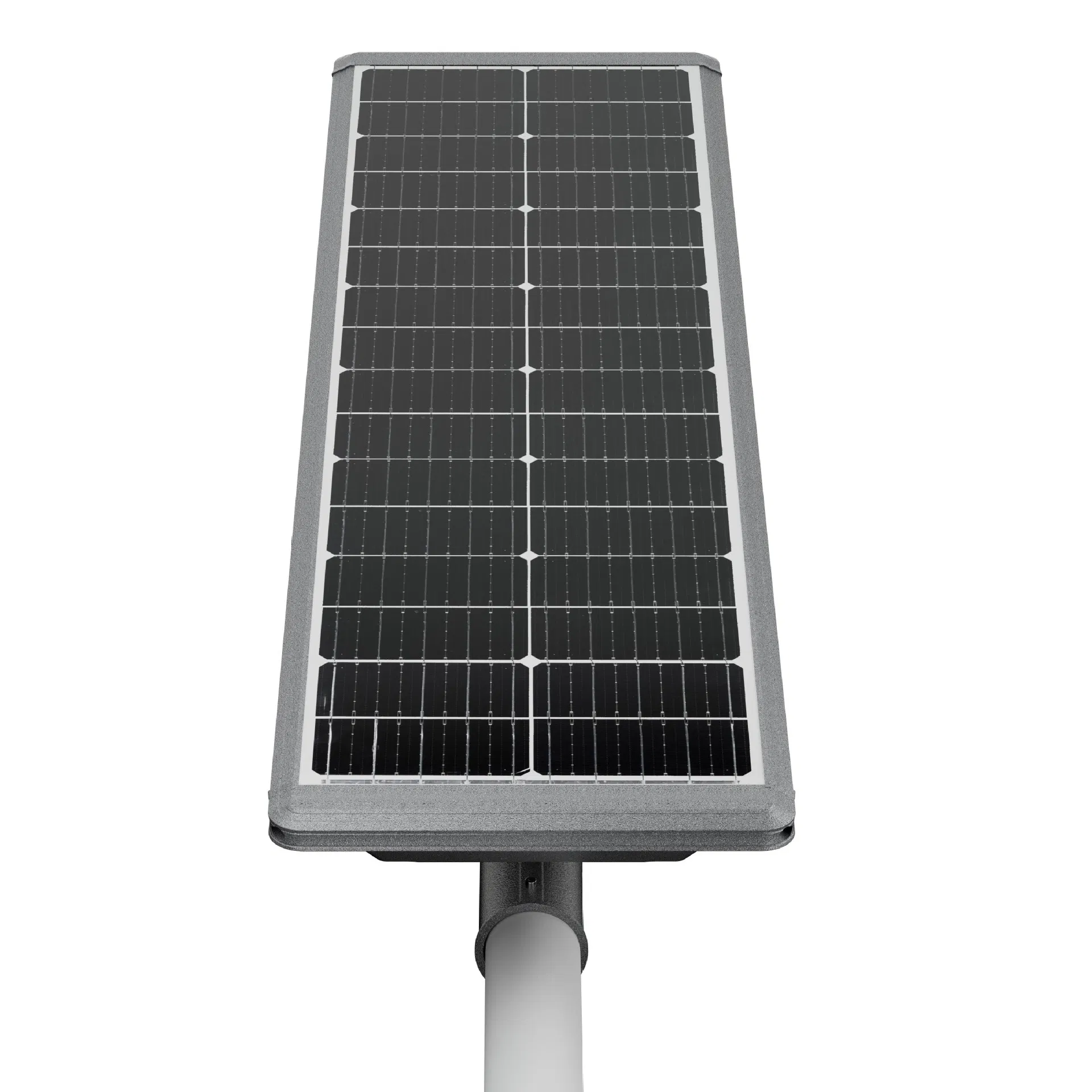

With 24% convert solar pv panel MONO type, and LiFePo4 battery, Constant current driver, MPPT charging agreement, which make the solar lights have excellent charge and discharge performance. M23 model can be used for Max 12meter mounting height with luminous flux 52lx, which is strong lumens with advanced technology of led improvement, with Type I Type II Type III Type IV Type V different optical lens which make the lights can be widely be used for expressway, highway, Road, Area lighting.

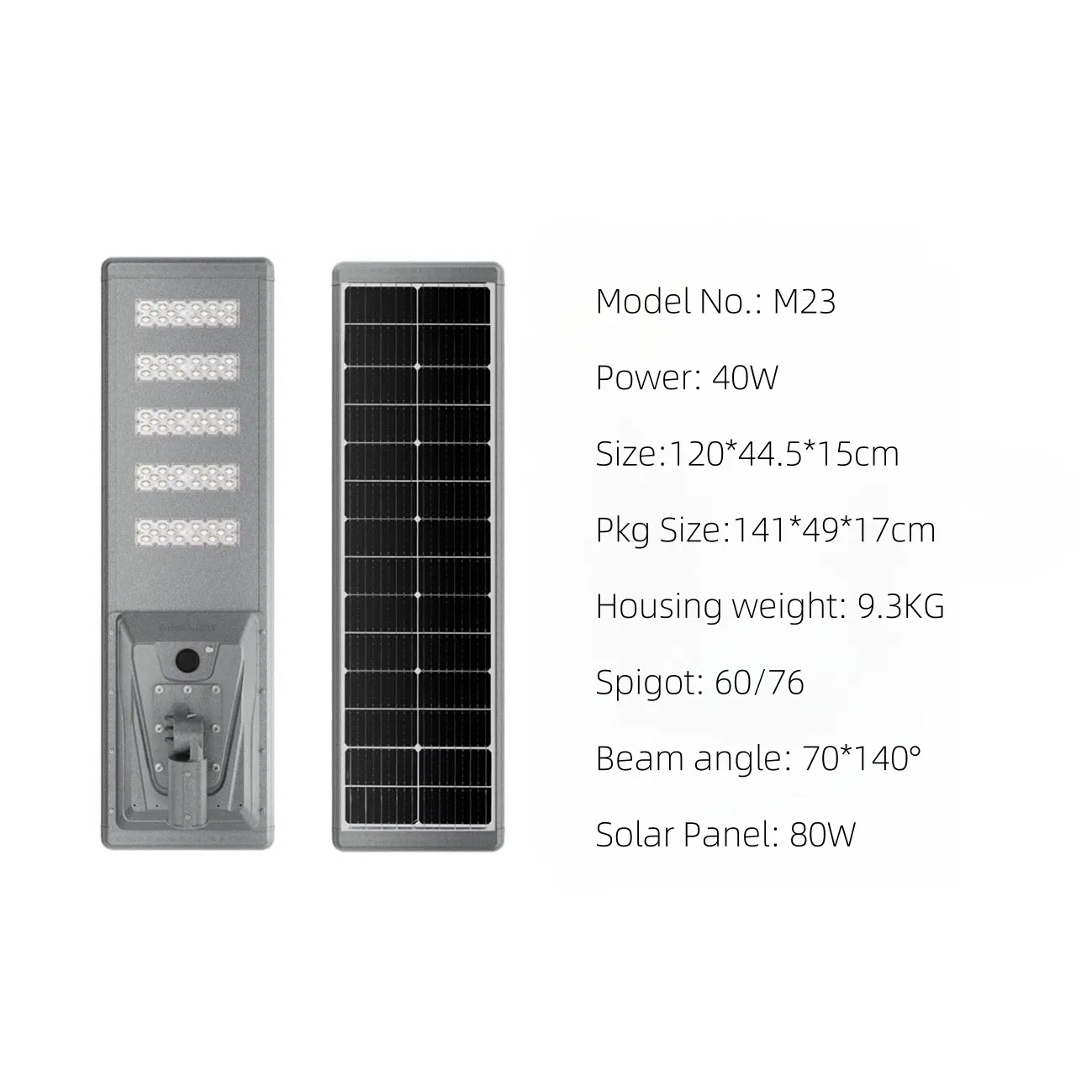

| Parameter | M23-40W | M23-50W | M23-60W |
|---|---|---|---|
| Solar panel | 60Wp 18V | 80Wp 18V | 110Wp 18V |
| Battery | 384Wh | 576Wh | 768Wh |
| LED Chips | 3030 SMD (180pcs) | 3030 SMD (240pcs) | 3030 SMD (300pcs) |
| Luminous flux | 8200lm | 12300lm | 16400lm |
| Efficacy | 205Lm/W | ||
| CCT | 2700k to 6500k | ||
| Feature | MPPT - IoT Lora - Motion Sensor | ||
| Mounting Height | 6-8meter | 8-10meter | 10-12meter |
This model M23 solar street lights was fully certified for projects tender use, including:
Standard Compliance: IEC 60598, IEC 61215, 61730, IEC 62109, IEC 62133, IEC 62471, IEC 62620
Testing Reports: LM79, LM80, TM21
Safety & Quality: IP66, IK Rating, CE, RoHS...
Comprehensive certificates for Battery, PV panel, LED modular, Controller, and luminaire protection.

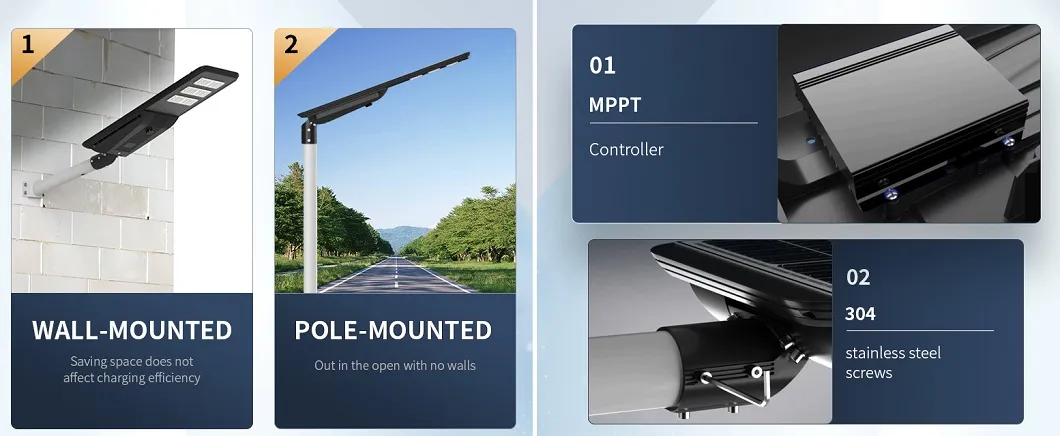

The M23 model provides a versatile mounting tilt system, supporting both horizontal and vertical installations. It is ideal for replacing traditional HID street lights while utilizing existing poles.
