1500V Mc4 Solar Connector for 10mm2/8AWG DC Cable Solid Terminal
1500V Mc4 Solar Connector for 10mm2/8AWG DC Cable Solid Terminal
1500V Mc4 Solar Connector for 10mm2/8AWG DC Cable Solid Terminal
1500V Mc4 Solar Connector for 10mm2/8AWG DC Cable Solid Terminal
1500V Mc4 Solar Connector for 10mm2/8AWG DC Cable Solid Terminal
1 / 5
1500V Mc4 Solar Connector for 10mm2/8AWG DC Cable Solid Terminal
1500V Mc4 Solar Connector for 10mm2/8AWG DC Cable Solid Terminal
1500V Mc4 Solar Connector for 10mm2/8AWG DC Cable Solid Terminal
1500V Mc4 Solar Connector for 10mm2/8AWG DC Cable Solid Terminal
1500V Mc4 Solar Connector for 10mm2/8AWG DC Cable Solid Terminal

1500V Mc4 Solar Connector for 10mm2/8AWG DC Cable Solid Terminal

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
PV-BN101A(10mm2)
Application
Conduct Electricity, Transmission of Electrical Signals, Solar Power System
Character
High Temperature Resistance
Species
Terminal
Production Process
Welding
Shape
Round
Interface Type
DC/DC
Certification
BS, UL, VDE, TUV, CE, Retie
Insulation Material
PPO
Rated Voltage
TUV 1500 DC/ UL 600V DC
Test Voltage
6kv(50Hz, 1min)
Contact Material
Copper, Tin Plated
Contact Resistance
Less Than 0.5 M Ohm
Degree of Protection
IP68
Pollution Degree
2
Protection Class
Class II
Flame Calss
UL94-V0
Ambient Temp Range
-40 ~ + 90.
Transport Package
500pair/ Carton
HS Code
8535900090
Production Capacity
500000pair/Day
Product Description
1500V Mc4 Solar Connector for 10mm2/8AWG DC Cable Solid Terminal
Technical Data & Features:
  • Connector adopts touch of reed with inne-knob type.
  • Auto-lock enable connection more easy and reliable.
  • Popular figure suit most of field installation.
  • Quickly to connector.
  • Water proof and prevent dust.
  • Long life and high temperature resistance.
Insulation materialPPO
Rated VoltageTUV 1500 DC/ UL 600V DC
Test voltage6KV(50Hz,1Min)
Contact materialCopper, Tin Plated
Contact resistanceLess than 0.5 m ohm
Degree of protectionIP68
Pollution Degree2
Protection classClass II
Flame calssUL94-V0
Plug/Withdrawal ForceLess than 50N / More than 50N
Ambient temperature range-40 ~ + 90
Compatible cable sections10mm² (8 awg)
Pin dimension4.0mm
Product Gallery

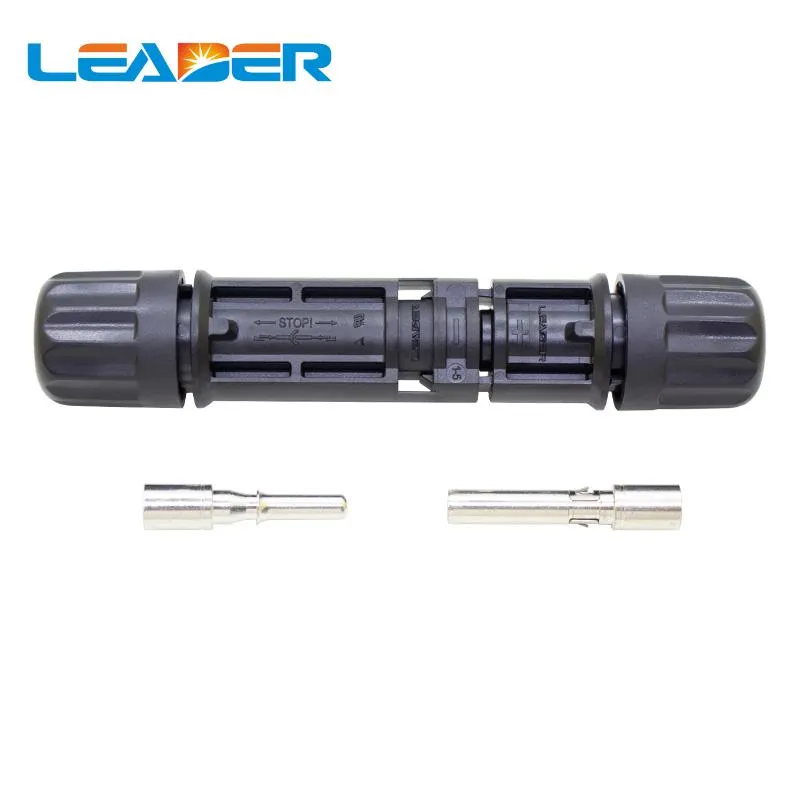

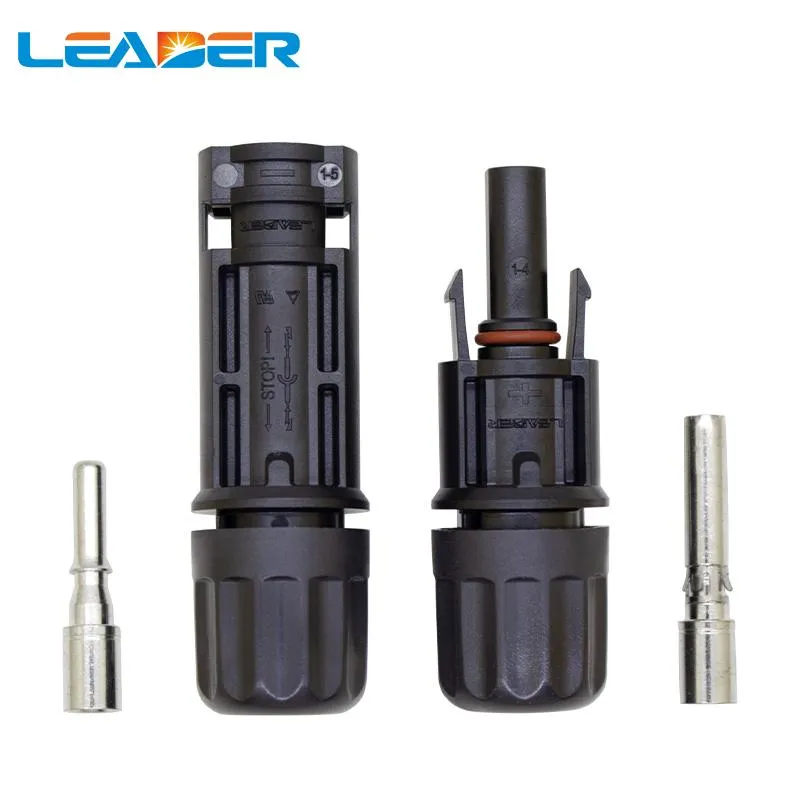

Solar Connector Detail 1
Solar Connector Detail 2

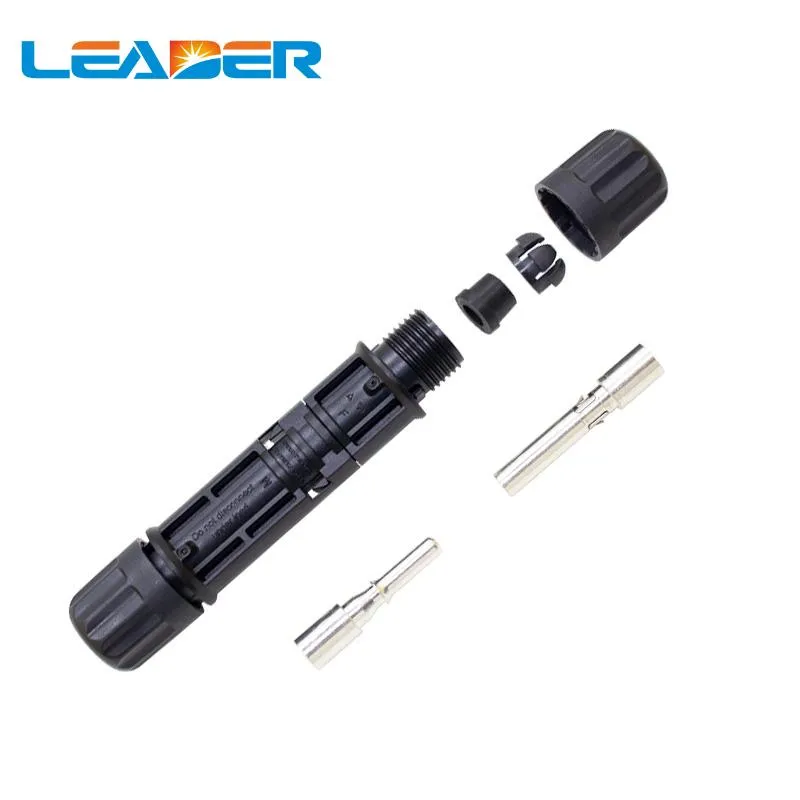

Solar Connector Detail 3

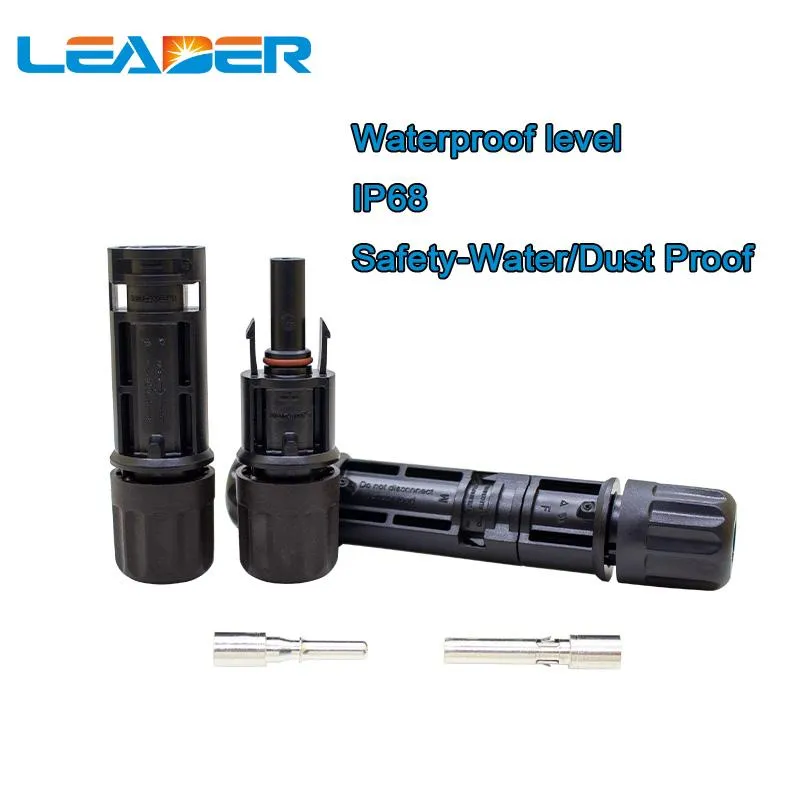

Solar Connector Detail 4

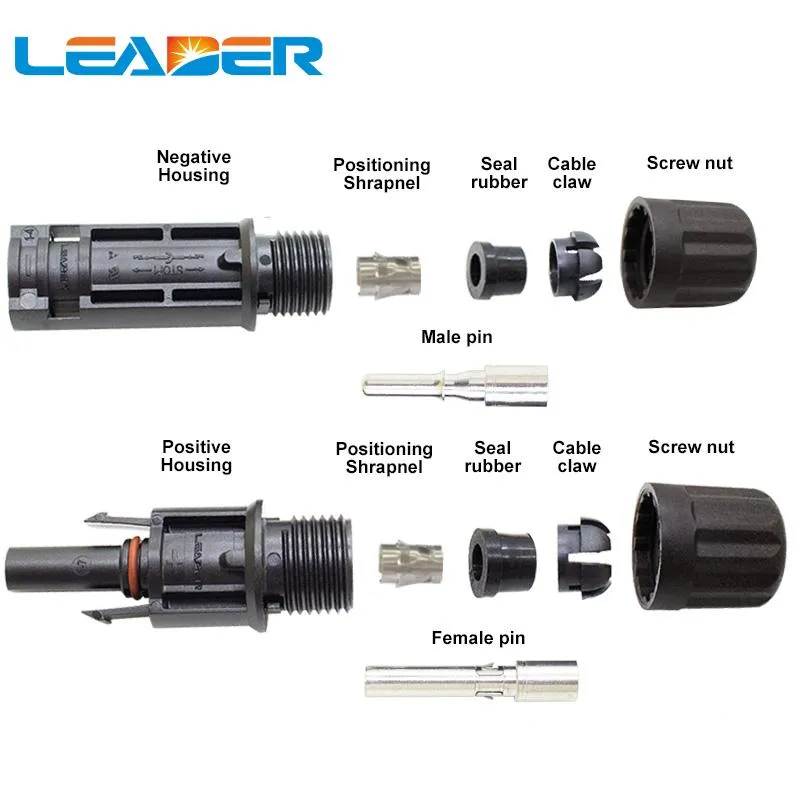

Solar Connector Detail 5
Technical Drawing 1

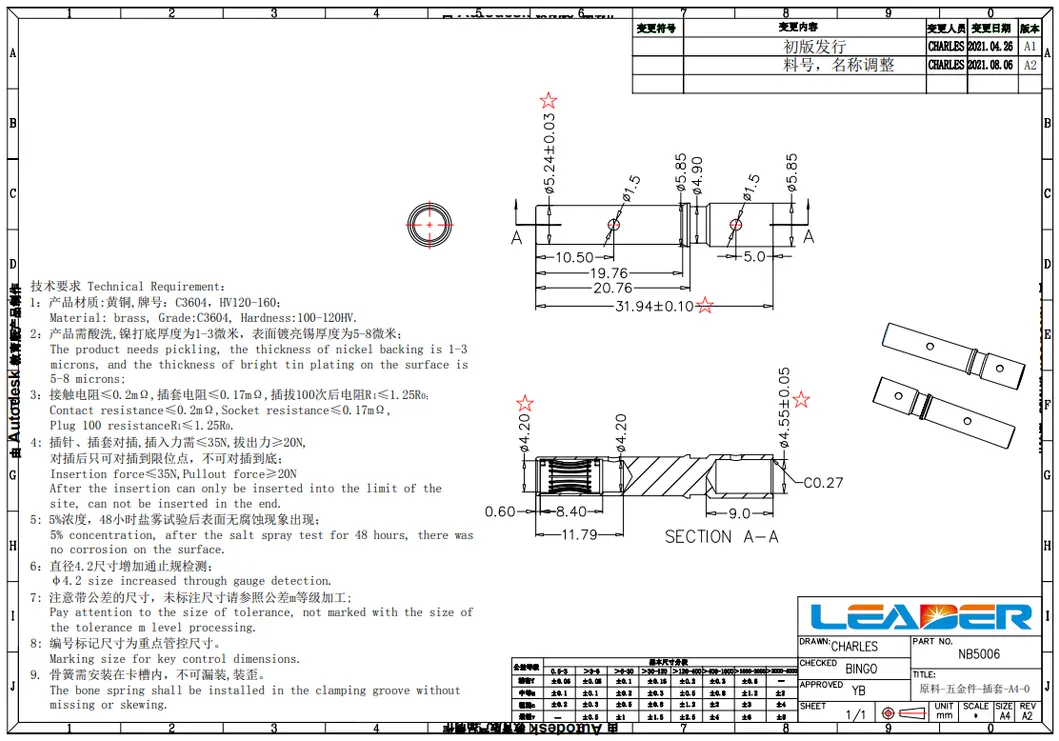

Technical Drawing 2
Our Services

Experience our commitment to quality. If you find any aspect unsatisfactory, you're welcome to return it within three days. Please ensure all items remain intact and in their original packaging. Note that any return shipping and customs expenses will be the buyer's responsibility.

  • Receive a prompt response to your inquiry within 24 hours.
  • Get detailed answers to all your technical questions.
  • Benefit from a freight forwarder that is faster, safer, and more convenient.
  • Competitive quotes provided swiftly for items of interest.
Frequently Asked Questions
Q1: What is the rated voltage for this solar connector? The rated voltage is TUV 1500V DC and UL 600V DC, making it suitable for high-voltage solar power systems.
Q2: What is the protection rating against water and dust? This connector features an IP68 protection degree, ensuring complete protection against dust and high-pressure water immersion.
Q3: Which cable sizes are compatible with this terminal? It is specifically designed for 10mm² (8 AWG) solar DC cables with a 4.0mm pin dimension.
Q4: What materials are used for insulation and contact? The insulation material is high-quality PPO, and the contact material is copper with tin plating for excellent conductivity.
Q5: Can these connectors withstand extreme temperatures? Yes, they are designed to operate within an ambient temperature range of -40°C to +90°C.
Q6: What is the flame resistance rating of the product? The product meets the UL94-V0 flame class standard, ensuring high safety and fire resistance.
