Product Description

📋 Basic Information

Model NO.

PV-BN101A

Application

Conduct Electricity, Transmission of Electrical Signals, Solar Power System

Character

High Temperature Resistance

Species

Terminal

Production Process

Welding

Shape

Round

Interface Type

DC/DC

Certification

CE, TUV, Retie

Insulation Material

PPO

Rated Voltage

TUV 1500 DC/ UL 600V DC

Test Voltage

6kv(50Hz, 1min)

Contact Material

Copper, Tin Plated

Contact Resistance

Less Than 0.5 M Ohm

Degree of Protection

IP68

Pollution Degree

Protection Class

Class II

Flame Class

UL94-V0

Temperature Range

-40 ~ + 90℃

Transport Package

500pair/Carton

HS Code

8536900000

Capacity

5000000pair

⚙️ Product Description & Technical Data

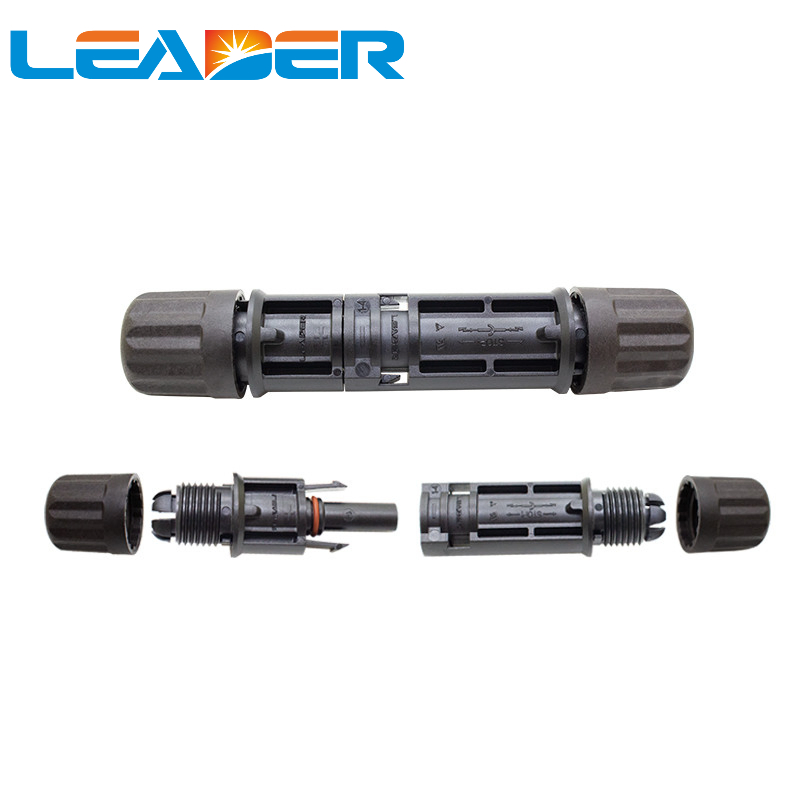

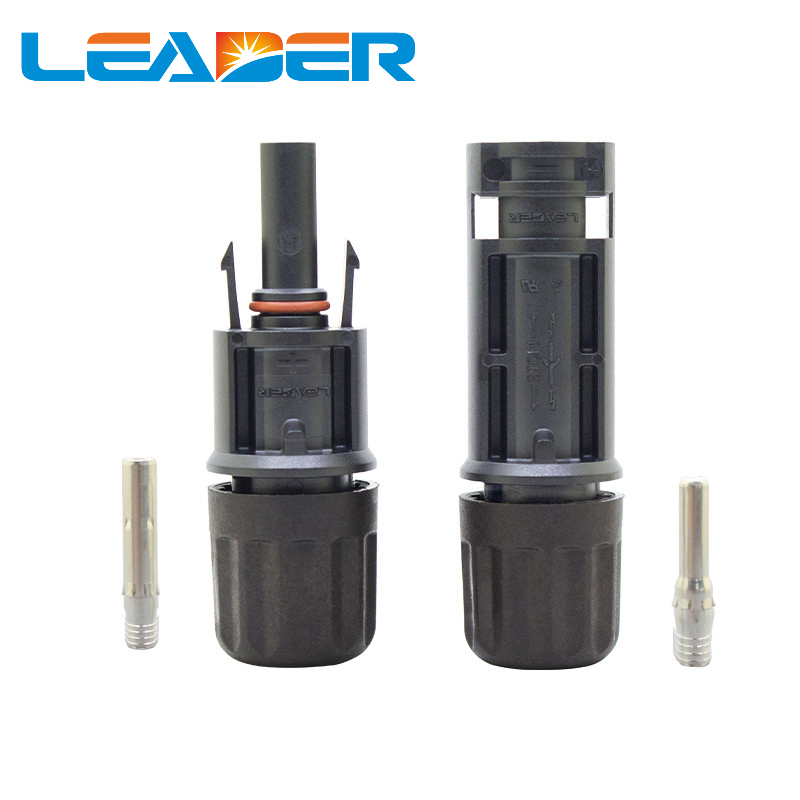

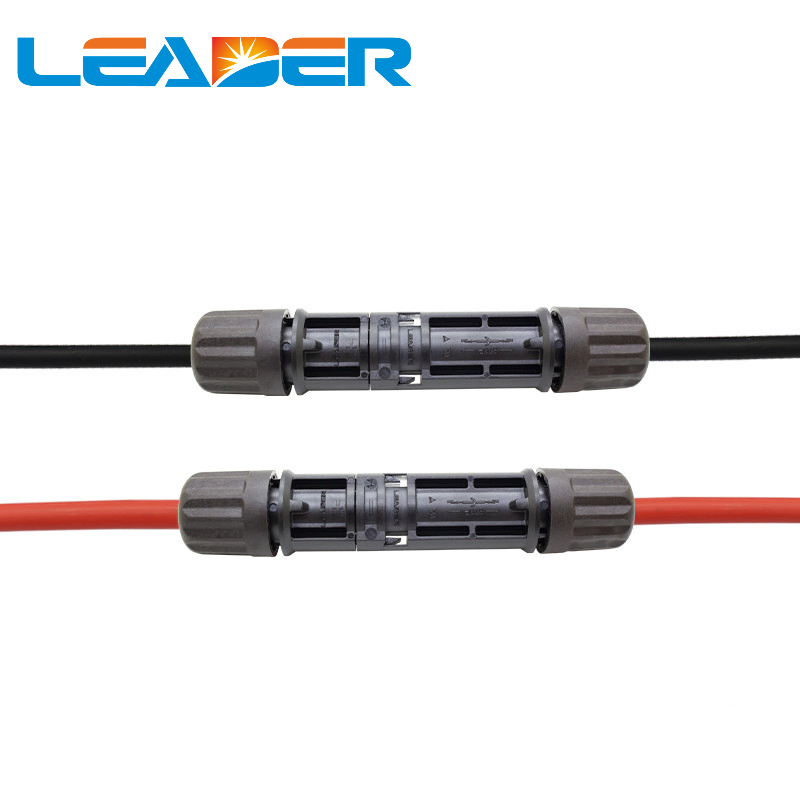

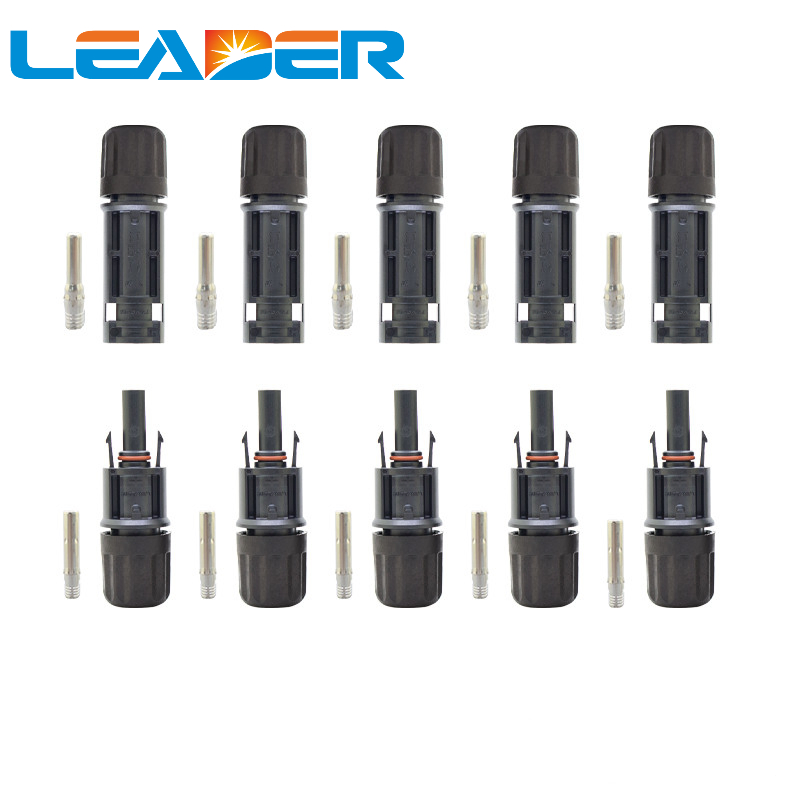

1500V IP68 TUV Certification UV Resistant Mc4 Solar Connector for Panels Cables

Our connectors are designed for high-performance solar power systems, ensuring reliable electrical signal transmission and power conduction.

Connector adopts touch of reed with inner-knob type.
Auto-lock enables connection more easy and reliable.
Popular figure suit most of field installation.
Quickly to connector.
Water proof and prevent dust (IP68).
Long service life.

Parameter	Specification
Insulation material	PPO
Rated Voltage	TUV 1500 DC/ UL 600V DC
Test voltage	6KV(50Hz,1Min)
Contact material	Copper, Tin Plated
Contact resistance	Less than 0.5 m ohm
Degree of protection	IP68
Pollution Degree	2
Protection class	Class II
Flame class	UL94-V0
Plug Force	Less than 50N
Withdrawal force	More than 50N
Ambient temperature range	-40 ~ + 90℃
Compatible cable sections	2.5mm², 4.0 mm² and 6.0 mm² (14/12/10 AWG)
Pin dimension	4.0mm

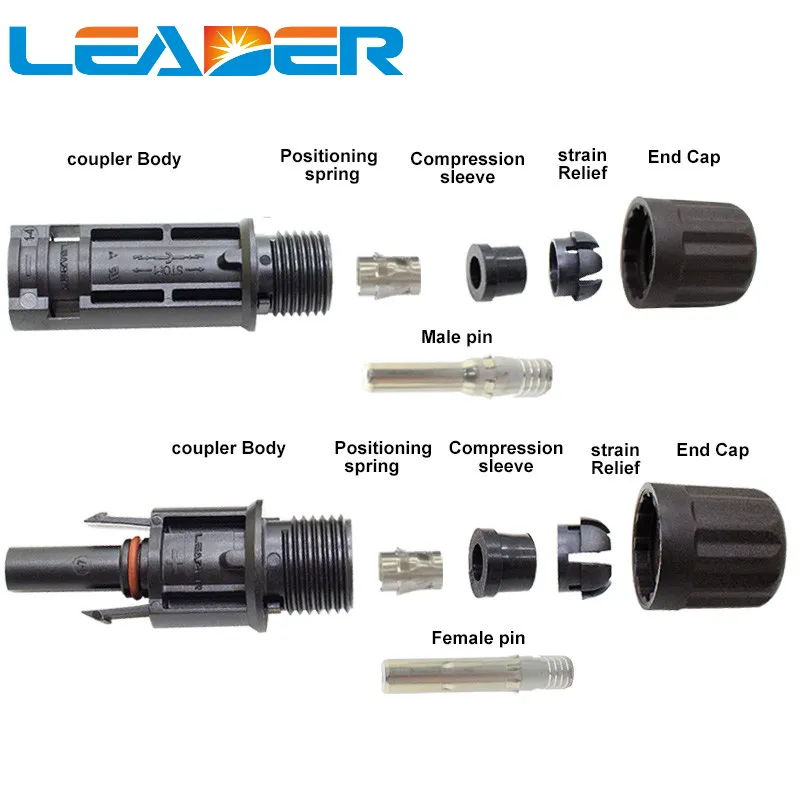

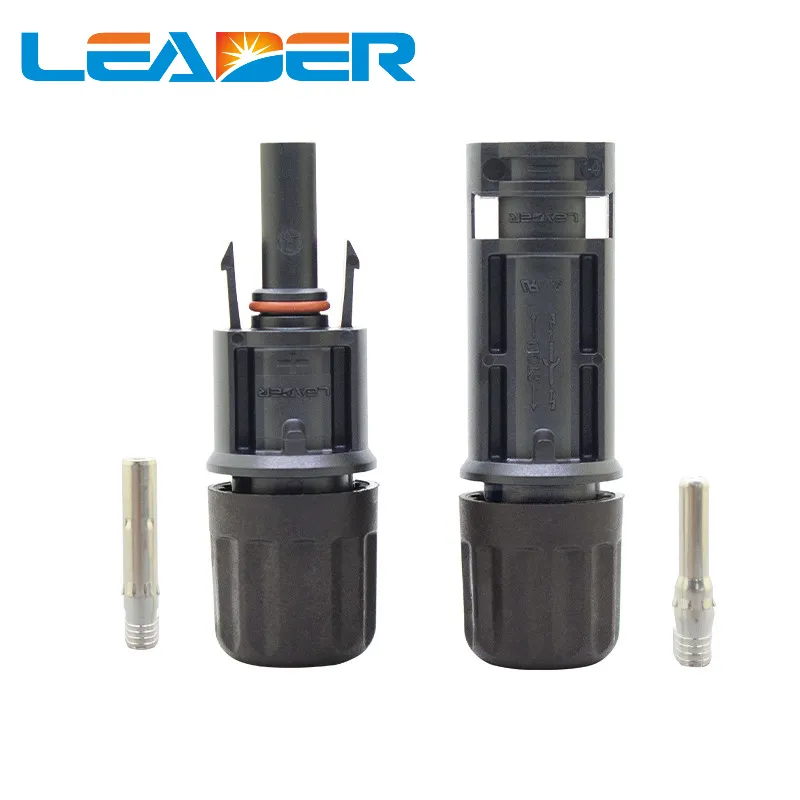

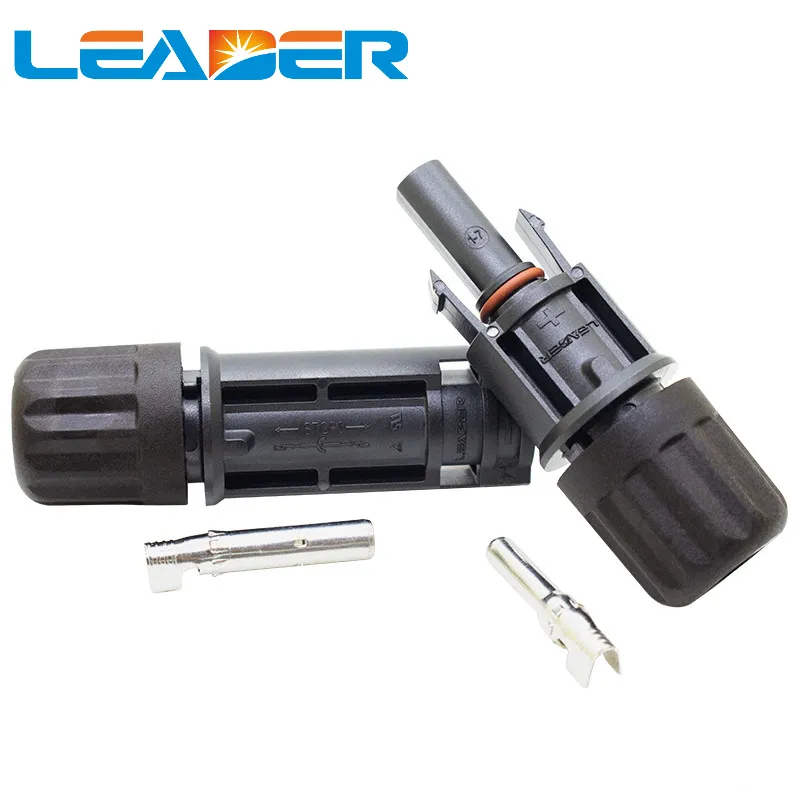

📸 Product Display

🛠️ Services & Policy

Returns: Upon receipt of products, if you are concerned about quality, returns are accepted within 3 days provided products are intact and original. Buyer assumes freight and customs costs.

Our Commitment: We strive to provide the best service including:

Inquiry response within 24 hours.
Detailed technical support.
Safe and convenient logistics assistance.
Competitive and reasonable pricing.

❓ Frequently Asked Questions

What is the waterproof rating of this solar connector?

This connector features an IP68 protection rating, making it completely dust-tight and protected against long-term immersion in water, ideal for outdoor solar installations.

What cable sizes are compatible with these connectors?

They are compatible with solar cable cross-sections of 2.5mm², 4.0mm², and 6.0mm², which corresponds to 14 AWG, 12 AWG, and 10 AWG respectively.

What is the maximum voltage these connectors can handle?

The connectors are certified for TUV 1500V DC and UL 600V DC, supporting high-voltage modern solar array configurations.

What temperature range can these connectors operate in?

The product is designed for extreme environments with an ambient temperature range of -40℃ to +90℃, utilizing high-temperature resistant PPO insulation.

Are these connectors easy to install in the field?

Yes, they feature an auto-lock mechanism and a popular figure design that suits most field installations, allowing for quick and reliable connections without complex tools.

What materials are used for the contacts?

The contacts are made of high-quality copper with tin plating, ensuring low contact resistance (less than 0.5 m ohm) and excellent conductivity.
