12/24/48VDC 30-60A Solar Charge Controller PWM Controller for Solar Power System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.

Condition

New

Certification

ISO, CB, CE

System Voltage

12/24/48V

Origin

China

HS Code

9032899090

Capacity

50000PCS/Year

Package Size

535.00cm * 415.00cm * 19.00cm

PWM Solar Charge Controller - HT Series

LCD HT Series (30/40/50/60A)

KEY FEATURES

LCD PWM Solar Charge Controller HT series 12/24/48V, 30/40/50/60A
12/24V automatic recognition or 48VDC
Built-in 2*1A USB Charger for mobile devices
Charging and discharging parameters are fully adjustable
Selectable Time and Light Control functions for street light applications
Preset charging parameters for three distinct battery types
Integrated Temperature compensation function

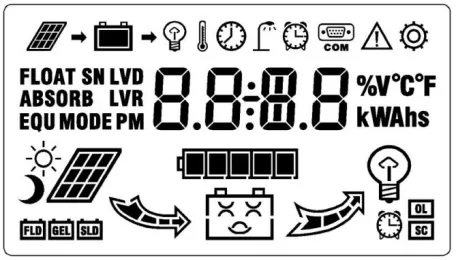

Comprehensive LCD display for energy capacity, fault codes, battery status, PV, and load details

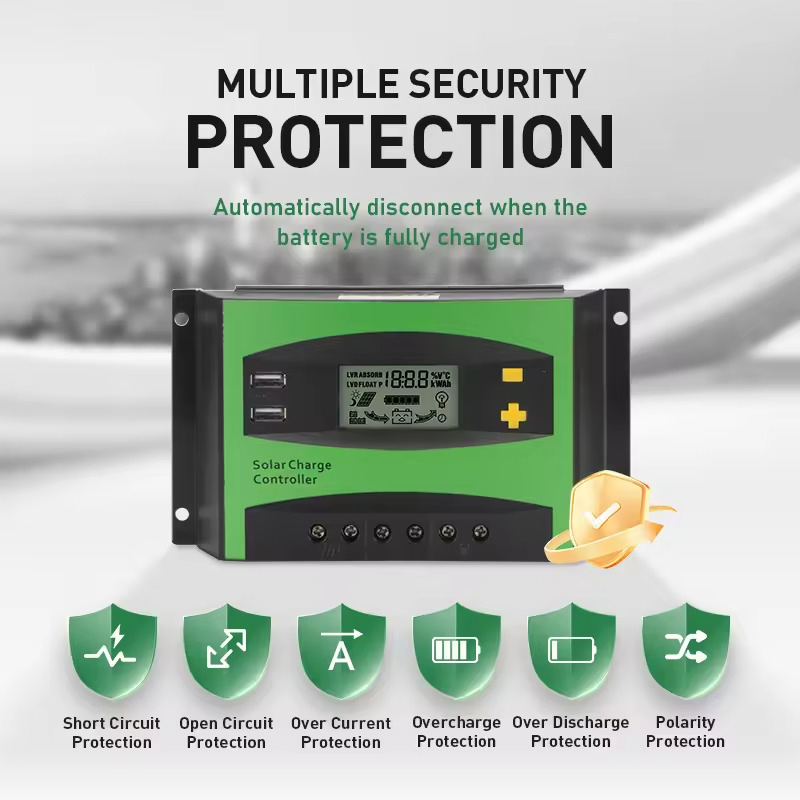

Full protection: PV over-current/reverse polarity, battery over-charge/discharge, load overload/short circuit
Optional RJ45 communication port for computer connectivity

Technical Specifications

MODEL		HT4830DU	HT4840DU	HT4850DU	HT4860DU	HT2450DU	HT2460DU
Rated charge current		30A	40A	50A	60A	50A	60A
Rated load current		30A	40A	50A	60A	50A	60A
System voltage		12/24/48V AUTO				12/24V AUTO
Charging Voltage	Absorption	14.4V (12V), 28.8V (24V), 57.6V (48V)
	Float	13.8V (12V), 27.6V (24V), 55.2V (48V)
	Equalizing	14.6V (12V), 29.2V (24V), 58.4V (48V)

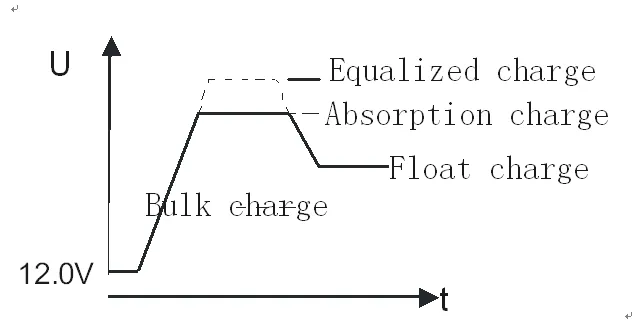

Charging Mode		PWM 4-stage (Bulk, Absorption, Float, Equalized)
Battery type		Sealed, GEL, Flood and User-defined
USB Charge		2*5V 1.0A
Protection Class		IP32

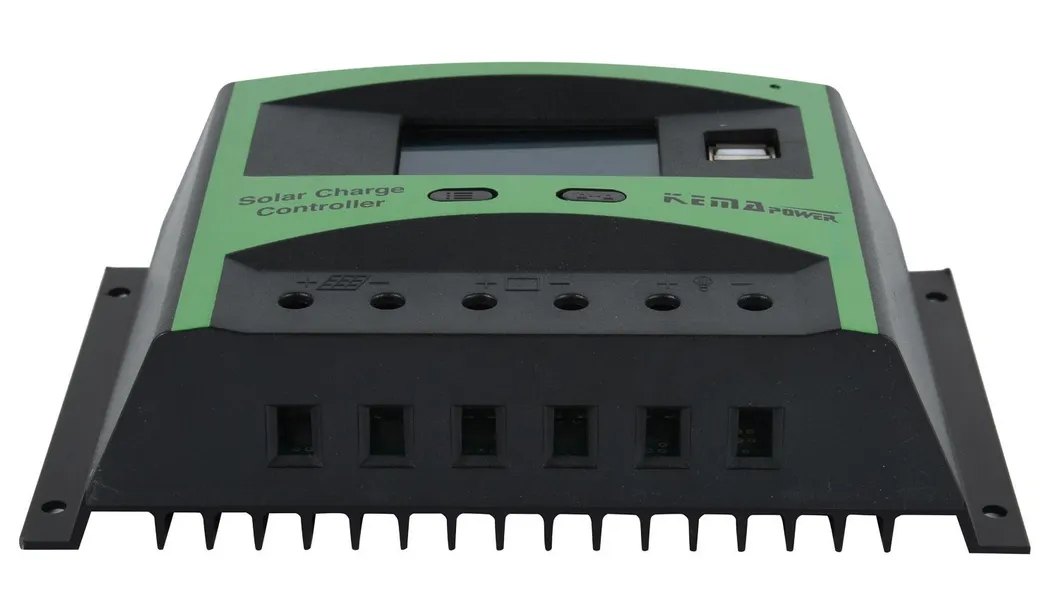

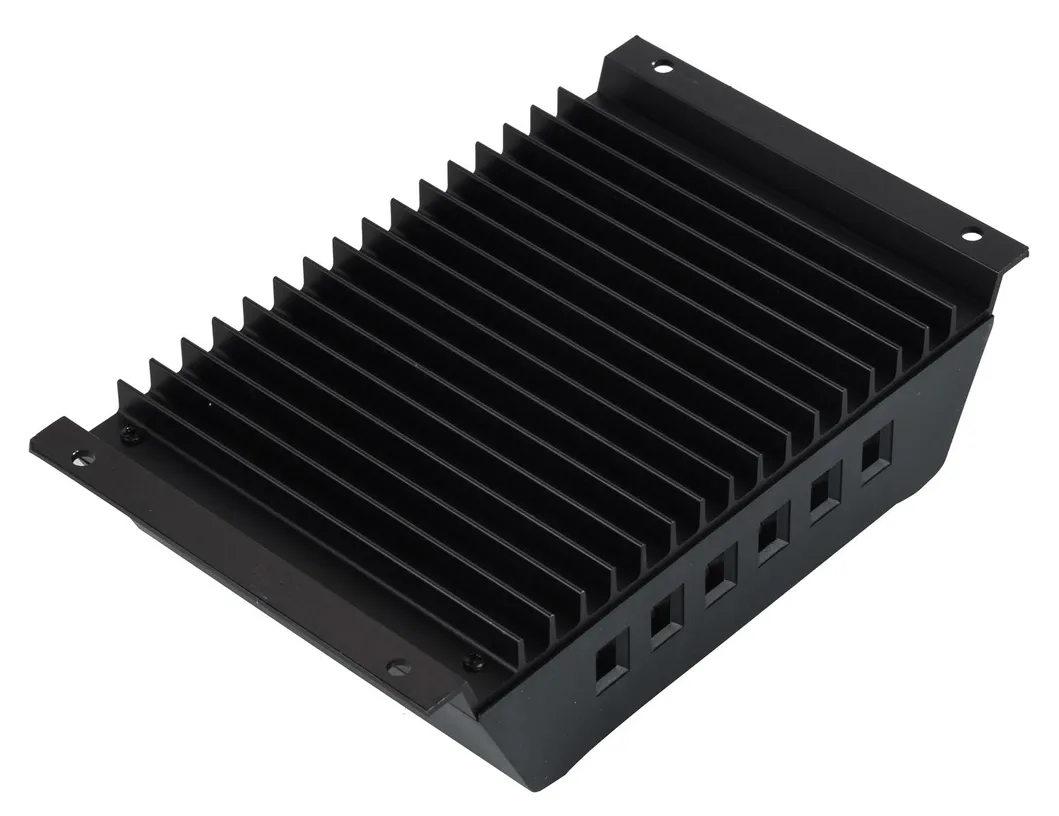

Product Gallery

Frequently Asked Questions

What is the voltage compatibility of the HT series controller?

The HT series supports 12/24V automatic recognition or 48VDC system voltage, making it versatile for various solar setups.

Can I charge my mobile phone directly from the controller?

Yes, the controller is equipped with two 5V 1.0A USB ports specifically designed for charging mobile devices and other small electronics.

Which battery types can be used with this PWM controller?

It is compatible with Sealed, GEL, and Flooded batteries, and also features a "User" mode for customized battery parameters.

How does the controller handle temperature changes?

It includes a temperature compensation function (-24mV/Cell/ºC for 12V systems) to ensure optimal charging performance regardless of environmental conditions.

What kind of protection does the HT series offer?

The controller provides full protection against PV reverse polarity, battery over-charge/discharge, load overload, short circuits, and internal over-temperature.

Is the display easy to read?

Yes, the multi-functional LCD provides clear data on battery voltage, PV output, charging current, accumulative AH, and system fault codes.
